Heat Insulation 25mm E-glass Fiberglass Needle Mat For 800℃ Engineering

China Heat Insulation 25mm E-glass Fiberglass Needle Mat For 800℃ Engineering supplier
Heat Insulation 25mm E-glass Fiberglass Needle Mat For 800℃ Engineering supplier Heat Insulation 25mm E-glass Fiberglass Needle Mat For 800℃ Engineering supplier Heat Insulation 25mm E-glass Fiberglass Needle Mat For 800℃ Engineering supplier Heat Insulation 25mm E-glass Fiberglass Needle Mat For 800℃ Engineering supplier

Large Image :  Heat Insulation 25mm E-glass Fiberglass Needle Mat For 800℃ Engineering

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: JT8125-25-100

Payment & Shipping Terms:

Minimum Order Quantity: 500m2
Price: US$5.15-7.5/m2
Packaging Details: 50meters/roll with polybag
Delivery Time: 20 days after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30000 square meters per day
Contact Now
Detailed Product Description
Features: Thermal Insulation, Sound Insulation Type: E-glass
Weight: 125kg/m3 Thickness: 25mm
Width: 100cm Keyword: E-glass Fiberglass Needle Mat

25mm E-glass Fiberglass Needle Mat For 800℃ Engineering Heat Insulation



Fiber glass needle mat is an e-glass fiberglass material which is constructed of alkali-free alumina borosilicate glass fibers in filament of 6µm - 13 µm diameters. They are cut into 3cm -10cm length fibers and then will be needled by thousands of needles to be a long textile fiber glass mat without bonding agent. Fiberglass needle mat has features of high porosity, high air permeability and thermal insulation. It is eco-friendly, recyclable and fire resistant.



Common density of fiberglass needle mat is 100-140kg/m3. 3mm-25mm are thickness we usually produce. Max width is 240cm, so 100cm, 120cm, 240cm are easier widths available with a shorter delivery time. Working temperature of fiber glass needle mat is -50 to 800℃(1472℉).



Specification:



Item Fiberglass Needle Mat
Type E-glass
Weight 125kg/m3
Thickness 25mm
Width 1000mm
Temperature Below 800℃



Data Sheet



Thermal Insulation Noise Isolation

Temperature

(C°)

Noise Isolation Coefficien (kal/mhr°C)

Frequency

(Hz)

Noise Isolation Coefficient
25 0.030 125 0.32
100 0.037 250 0.76
200 0.048 500 0.94
300 0.058 1000 0.96
400 0.076 2000 0.95
500 0.094 4000 0.98
600 0.112

Excellent noise isolation capacity;

Absorbs noise and also vibration.

700

0.16



Features:



  • Sound insulation/absorption
  • Shock absorption
  • Fire reisistance
  • Chemical resistance
  • Oil resistance



Application



  • In the automotive industry
  • Industrial filtration products
  • Flue gas purification and dust recovery of various bags of dust.
  • For fireproof, sealing, sound absorption, filtration materials;
  • High temperature equipment thermal insulation, air conditioning duct insulation;
  • Sound muffler and engine silencer for car/motorcycle
  • Housing sandwich layer spacing heat insulation; roofing thermal insulation
  • Wall insulation in Air conditioning, refrigerators, microwave ovens, dishwashers and other household electrical appliances

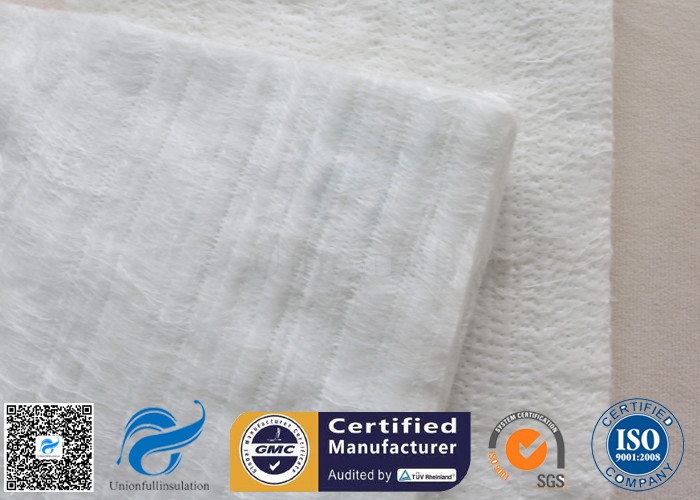

Picture:



Heat Insulation 25mm E-glass Fiberglass Needle Mat For 800℃ EngineeringHeat Insulation 25mm E-glass Fiberglass Needle Mat For 800℃ Engineering
