Blue 0.5mm Rubber Silicone Coated Fiberglass Fabric For Fire Resistant Blanket

China Blue 0.5mm Rubber Silicone Coated Fiberglass Fabric For Fire Resistant Blanket supplier
Blue 0.5mm Rubber Silicone Coated Fiberglass Fabric For Fire Resistant Blanket supplier Blue 0.5mm Rubber Silicone Coated Fiberglass Fabric For Fire Resistant Blanket supplier Blue 0.5mm Rubber Silicone Coated Fiberglass Fabric For Fire Resistant Blanket supplier Blue 0.5mm Rubber Silicone Coated Fiberglass Fabric For Fire Resistant Blanket supplier

Large Image :  Blue 0.5mm Rubber Silicone Coated Fiberglass Fabric For Fire Resistant Blanket

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $2.5-3.5/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Contact Now
Detailed Product Description
Base Cloth: 3732 Fabric Coating: Blue Silicone
Total Thickness: 0.5mm Weight: 510g/m2
Width: 100cm Weave: Satin Weave

Blue 0.5mm Silicone Rubber Coated Fiberglass Fabric For Fire Resistant Blanket

This blue silicone coated fiberglass cloth is comprised of a strong woven fiberglass fabric impregnated both sides with silicone rubber to a finished weight of 510g per square meter. With increased thermal properties, the fiberglass fabric can standwith a temperature below 550℃(1022). But the blue rubber/silicone coating can resist below 260℃.

Silicone coated fiber glass cloth is durable, tear resistant, thermal insulation and cgemical resistant. Based on its properties like
dimension stablity, anti chemical agents and durablitity, and special features of silicone coating, the coated fiberglass cloth are widely used for thermal insulation and electrical insulation covers, such as fire/welding blanket, fabric expansion joints, fabric duct, valve/generator insulation jackets.




Technical Data Of 3732 Fabric

StyleWeaveThread CountThicknessWeightWidth
3732Satin

20 Ends/CM

11 Ends/CM

0.4mm430g/m2100cm




Specification Of UPSE-8732D80:

ItemSilicone Coated Fiberglass Fabric
MaterialE-glass Fiber Glass
WeaveSatin Weave
Warp Density20 Ends/CM
Weft Density11 Ends/CM
Mass Per Unit510g/m2(430+40+40gsm)
Thickness0.5mm
Common Width100cm, 127cm, 155cm
Working Temperature

Silicone Coating below 260℃



Application:



  • Hose pipe making
  • Expansion Joint
  • Welding curtains
  • Heat shrink tunnel curtain
  • Generator, pump thermal insulation jackets

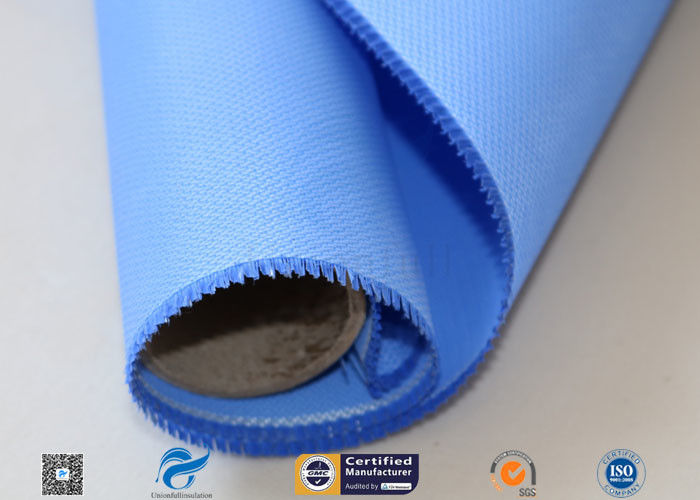

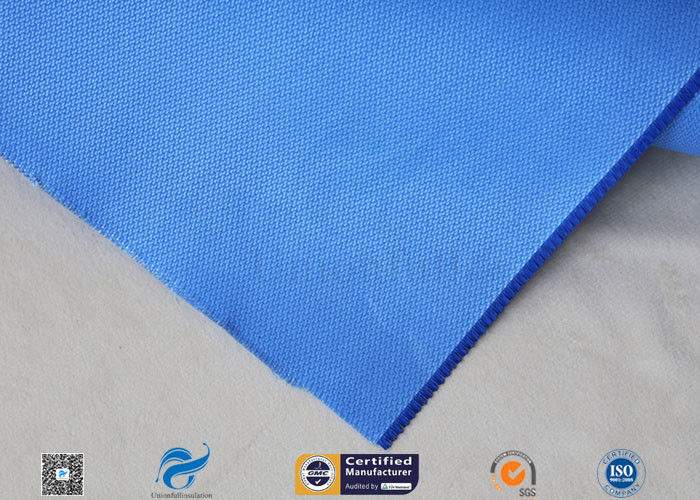

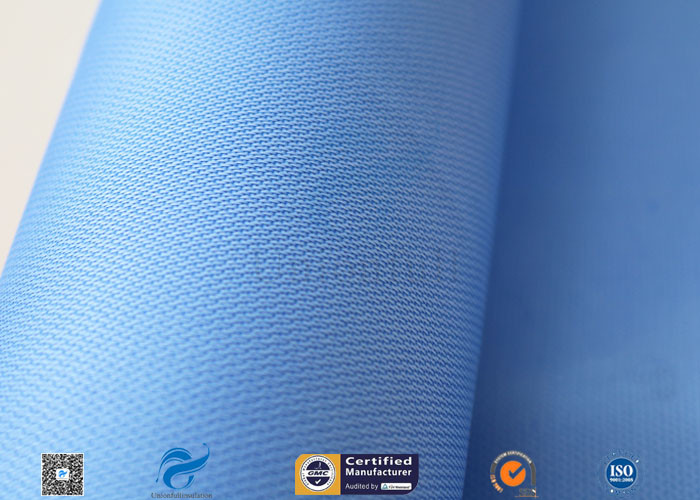

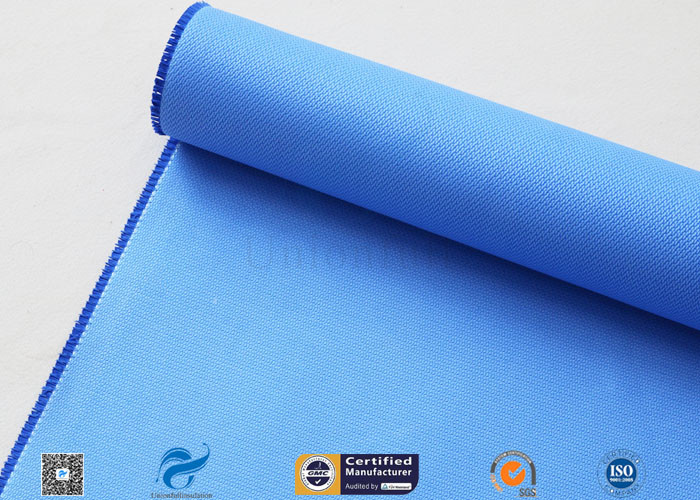

Picture:
 Blue 0.5mm Rubber Silicone Coated Fiberglass Fabric For Fire Resistant BlanketBlue 0.5mm Rubber Silicone Coated Fiberglass Fabric For Fire Resistant Blanket
