Grey 0.5mm 510g Silicone Coated Fiberglass Fabric For Expansion Joint

China Grey 0.5mm 510g Silicone Coated Fiberglass Fabric For Expansion Joint supplier
Grey 0.5mm 510g Silicone Coated Fiberglass Fabric For Expansion Joint supplier Grey 0.5mm 510g Silicone Coated Fiberglass Fabric For Expansion Joint supplier Grey 0.5mm 510g Silicone Coated Fiberglass Fabric For Expansion Joint supplier Grey 0.5mm 510g Silicone Coated Fiberglass Fabric For Expansion Joint supplier

Large Image :  Grey 0.5mm 510g Silicone Coated Fiberglass Fabric For Expansion Joint

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8732D40

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $2.85-3.40/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Contact Now
Detailed Product Description
Base Cloth: 3732 430g/m2 Fiberglass Fabric Coating: Grey Silicone, 40/40
Total Thickness: 0.5mm Weight: 510g/m2
Width: 127cm Feature: Fireproof, High Strength, Electric Insulation
Weave: Satin Weave Keyword: Silicone Coated Fiberglass Fabric

0.5mm 510g Grey Silicone Coated Fiberglass Fabric For Expansion Joint



3732 430g/m2 fiberglass fabric is a very common used fabric because of its suitable weight and thickness. When coat with grey silicone on both sides, the coated fiberglass fabric is 510g/m2 and 0.5mm. Fiberglass is a light-weight material which is fire resistant, abrasion resistant, chemical resistant, waterproof and anti UV. Silicone coating performs especially great on electric insulation so it is also used to produce removable thermal insualtion which is for pump, valve and power generators.

The fiberglass cloth can resist 550℃ continuously. Silicone coating can be used below 260℃. Base on its special coating properties and fabric features, main application of silicone coated fiber glass cloth are welding blanket/curtains, gasketing, fabric expansion joints, shrink tunnel curtains and heat insulation covers.


3732 Base Cloth Data Sheet
Model No. Thread Count Yarn Type Thickness Weight Width
3732

20 Ends/CM

11 Ends/CM

G37 1/0 0.7Z

G37 1/0 0.7Z

0.4mm 430g/m2 0.9m-4.2m



Specification Of JT8430SG-D40-127:
Item Silicone Coated Fiberglass Fabric
Material E-glass Glass Fiber Yarn
Weave Satin Weave
Warp Count 20 Ends/CM
Weft Count 11 Ends/CM
Weight 510GSM
Thickness 0.5mm
Width 127cm
Servise Temperature Coating below 260


Features:




  • Anti acid and strong alkali
  • Electrical insulation
  • High strength, durable
  • High dielectric strength
  • Working temperature range from -50 to +260


Application:



  1. Welding blanket, metal splatter protection
  2. For conveyor belt, fabric duct and expansion joints
  3. Electrical insulation covers for power generators
  4. Used in other fields: aerospace, marine, chemical industry, power plant, automotive, construction, piping and sealing

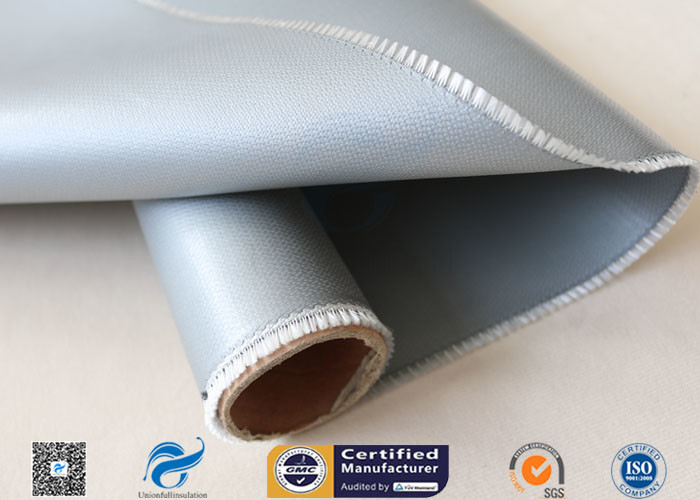

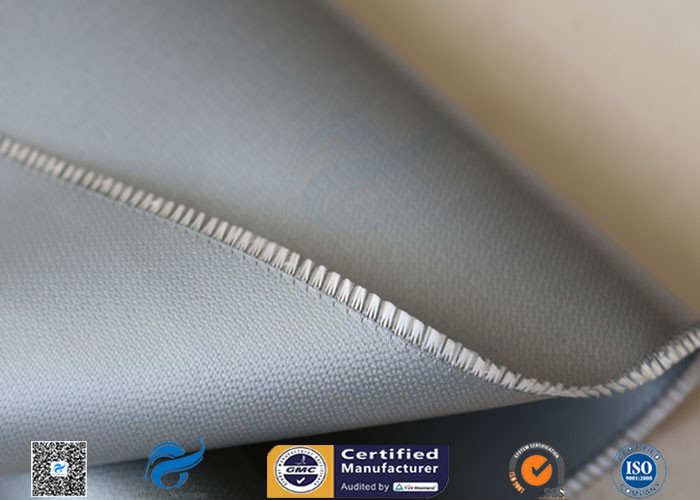

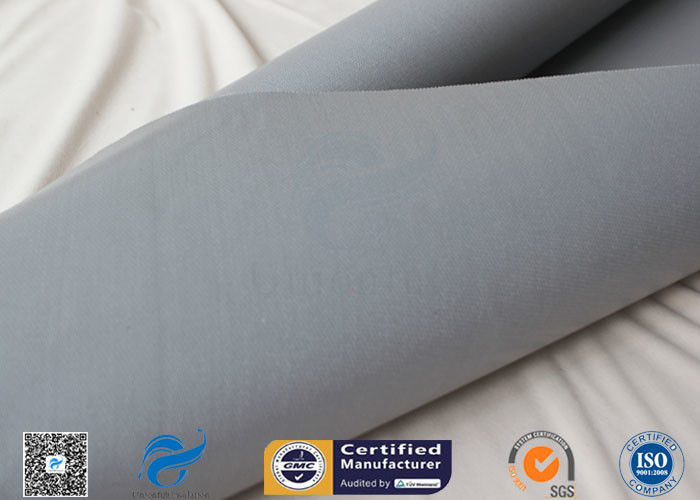

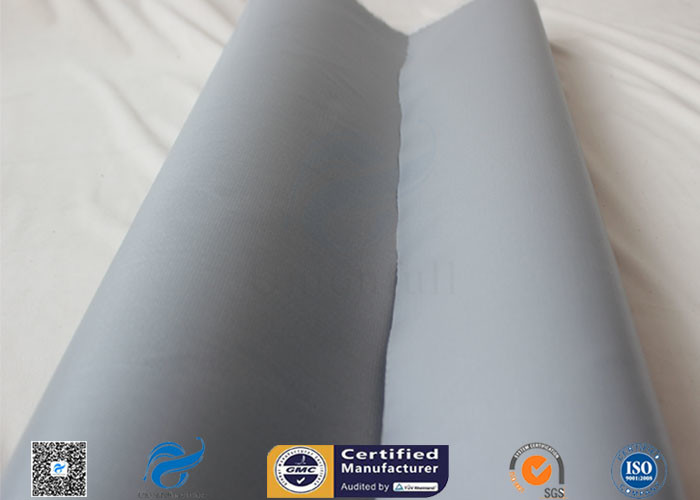

 Picture:


Grey 0.5mm 510g Silicone Coated Fiberglass Fabric For Expansion JointGrey 0.5mm 510g Silicone Coated Fiberglass Fabric For Expansion Joint
