530g E-Glass Silicone Coated Fiberglass Cloth For Electrical Insulation Cover

China 530g E-Glass Silicone Coated Fiberglass Cloth For Electrical Insulation Cover supplier
530g E-Glass Silicone Coated Fiberglass Cloth For Electrical Insulation Cover supplier 530g E-Glass Silicone Coated Fiberglass Cloth For Electrical Insulation Cover supplier 530g E-Glass Silicone Coated Fiberglass Cloth For Electrical Insulation Cover supplier 530g E-Glass Silicone Coated Fiberglass Cloth For Electrical Insulation Cover supplier

Large Image :  530g E-Glass Silicone Coated Fiberglass Cloth For Electrical Insulation Cover

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8732S100

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $2.5-3.5/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Contact Now
Detailed Product Description
Base Cloth: 3732 Fiberglass Fabric Coating: Silicone, 100g/m2
Total Thickness: 0.5mm Weight: 430g/m2+100g/m2 Coating
Width: 100cm Feature: Fire Resistant, Electrical Insulation
Weave: 8HS Keyword: Black Silicone Coated Fiber Glass Fabric

530g E-glass Silicone Coated Fiberglass Fabric For Electrical Insulation Cover


This 530g/m2 black silicone coated fiberglass fabric is made of e-glass woven fiberglass cloth and then it is coated with or impregnated with a black silicone/rubber. Fiberglass is an great inorganic non - metal material with high melting point and low expansion. When coat it with silicone, the glass fiber fabric also own the features of silicone coating, such as fire resistance, abrasion resistance, dimension stability, tear resistance, electrical insulation and anti chemical agent.


Basic fiberglass fabric if this silicone fabric is 3732 430g/m2 0.4mm E-grade fiberglass fabric. The working temperature of this coated fabric is below 550℃. But the black rubber/silicone coating can be used below 260℃. It is a newly-made-product with high properties and multiple applications. Due to its special resistance to high-temperatures, permeability and aging, also its high strength, this silicone coated fiber glass cloth is widely used in aerospace, chemical industry, large-scale generate electricity equipment, machinery, metallurgy, nonmetal expansion joint.


Technical Data Of 3732 Fabric

Style Weave Thread Count Thickness Weight Width
3732 Satin

20 Ends/CM

11 Ends/CM

0.4mm 430g/m2 1m-3.2m




Specification Of JT8430SB-S10-100:

Item Silicone Coated Fiberglass Fabric
Material E-glass Fiberglass
Weave Satin Weave
Warp Density 20 Ends/CM
Weft Density 11 Ends/CM
Mass Per Unit 530g/m2(430+100)
Thickness 0.5mm
Width 100cm
Working Temperature

Silicone Coating 260℃
Cloth ≤ 550


Features:



1. Excellent performance on high temperature and low temperature protection, -70°C-260°C
2. High strength, not east to tear, long use life
3. Anti oxide, light and weather aging
4. Electrical insulation
5. Chemical corrosion resistant, oil-proofing, waterproofing

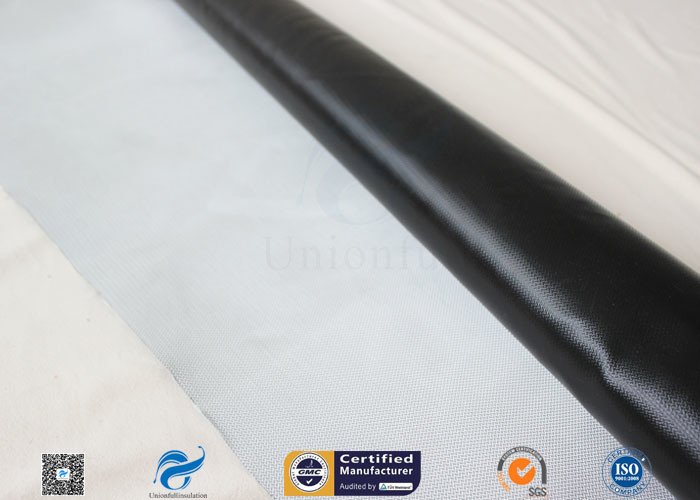

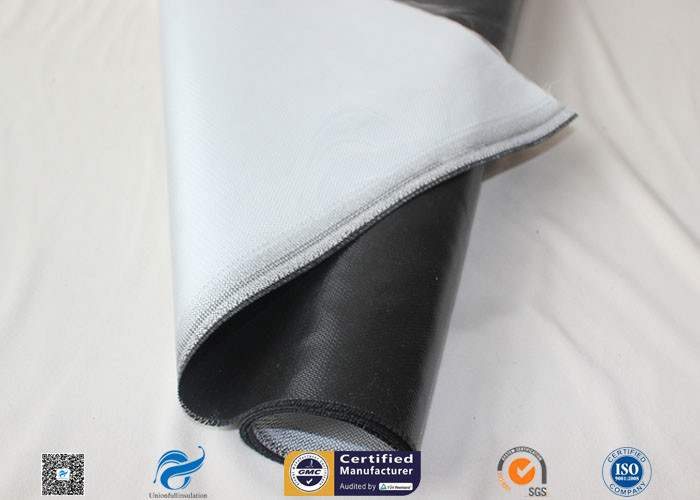

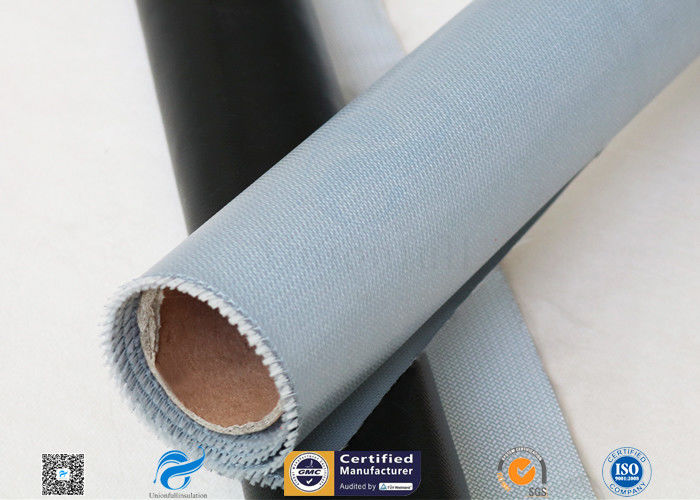

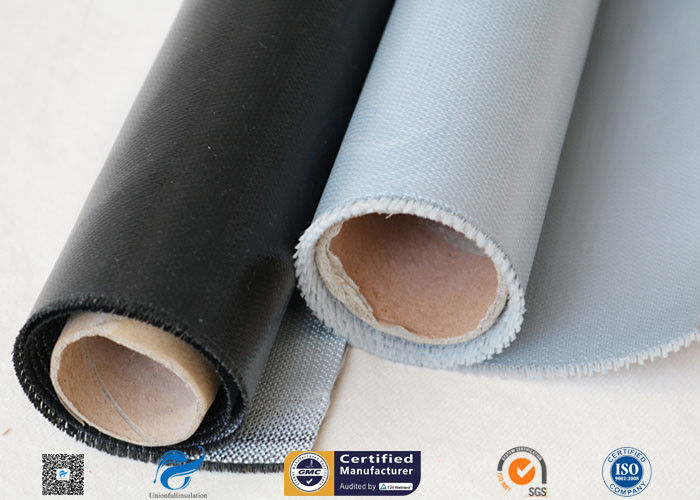

Picture:

530g E-Glass Silicone Coated Fiberglass Cloth For Electrical Insulation Cover530g E-Glass Silicone Coated Fiberglass Cloth For Electrical Insulation Cover
