7628 0.3mm Grey Silicone Coated Fiberglass Fabric For Anti Corrosion Materials

China 7628 0.3mm Grey Silicone Coated Fiberglass Fabric For Anti Corrosion Materials supplier
7628 0.3mm Grey Silicone Coated Fiberglass Fabric For Anti Corrosion Materials supplier 7628 0.3mm Grey Silicone Coated Fiberglass Fabric For Anti Corrosion Materials supplier 7628 0.3mm Grey Silicone Coated Fiberglass Fabric For Anti Corrosion Materials supplier 7628 0.3mm Grey Silicone Coated Fiberglass Fabric For Anti Corrosion Materials supplier

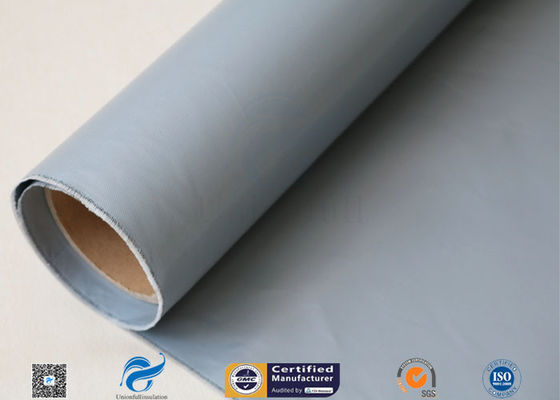

Large Image :  7628 0.3mm Grey Silicone Coated Fiberglass Fabric For Anti Corrosion Materials

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8628D30

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $2.6-3.50/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Contact Now
Detailed Product Description
Base Cloth: 7628 Fiberglass Fabric Coating: Grey Silicone, 60g/side
Total Thickness: 0.3mm Total Weight: 200g/m2+30g/m2+30g/m2
Width: 155cm Weave: Plain Weave

7628 0.3mm Grey Silicone Coated Fiberglass Fabric For Anti-corrosion Materials

Silicone Coated Fiberglass Fabrics are made from woven fiberglass substrates that have been coated on one or both sides with silicone rubber. Fiberglass fabric is a widely used industrical materials with high strength and fire resistance. For this 7628 silicone coated fabric, weight of basic cloth is 200g/m2, then coated with 40g/m2 silicone/rubber on both sides. The temperature of basic fiberglass fabric is below 550℃. And the silicone rubber coating can resist temperature below 260℃.

Silicone coated fiberglass fabric is heat resistant, flexible and also high strength. Base on the properties of both fiberglass fabric and silicone coating, this coated fiberglass cloth is suitable for for fabric expansion joints or fabric connector, thermal insualtion/electrical insulation exhaust blanket for pump/electric generator, anti corrosion protection for pipeline.


Technical Data Of 7628 Fabric

Style Weave Thread Count Thickness Weight Width
7628 Plain

17.3 Ends/CM

13 Ends/CM

0.2mm 200g/m2 1.55m




Specification Of UPSE-8628D30:
Item Silicone Coated Fiberglass Fabric
Material E-glass Fiber Glass
Weave Plain
Warp Density 17.3 Ends/CM
Weft Density 13 Ends/CM
Mass Per Unit 320g/m2(200+60+60)
Thickness 0.3mm
Width 155cm
Working Temperature

Silicone Coating below 260℃


Properties:



  • Anti-chemical, corrosion resistance
  • Electric insulation
  • High strength, tear resistance, abrasion resistance
  • Service temperature from -50 degree to 260 degree.


Application:



  1. Cold protection Covers
  2. Fire doors, fire curtains, fire blanket
  3. Expansion joints
  4. Fabric connector
  5. Electrical insulation cover for generator

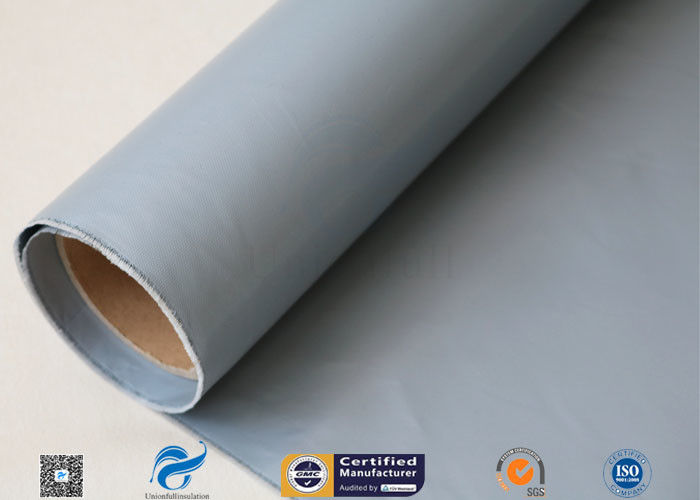

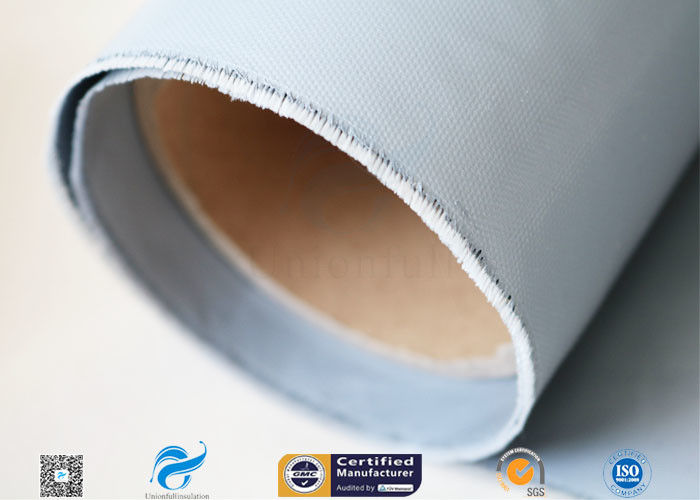

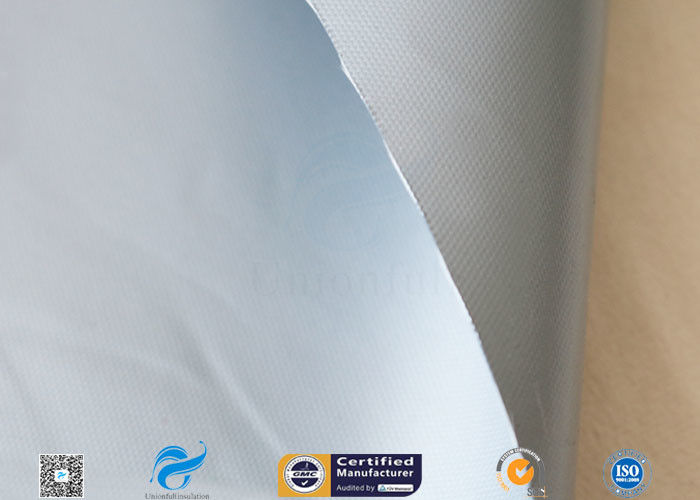

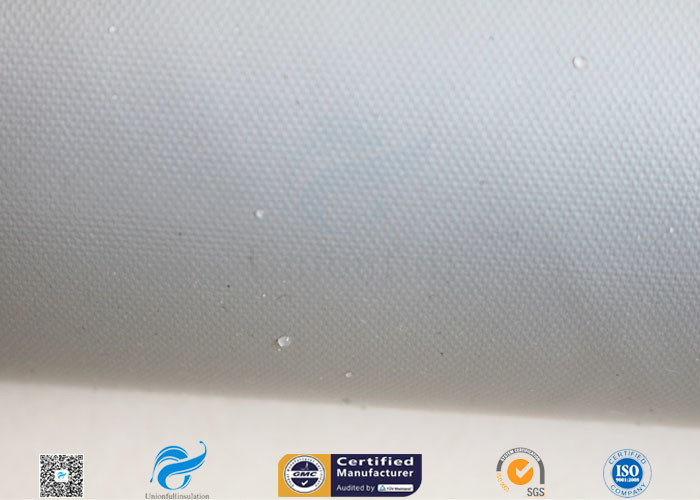

 Picture:



7628 0.3mm Grey Silicone Coated Fiberglass Fabric For Anti Corrosion Materials

7628 0.3mm Grey Silicone Coated Fiberglass Fabric For Anti Corrosion Materials
