0.5mm 3732 Black Silicone Rubber Coated Fiberglass Cloth For Fabric Expansion Joint

China 0.5mm 3732 Black Silicone Rubber Coated Fiberglass Cloth For Fabric Expansion Joint supplier
0.5mm 3732 Black Silicone Rubber Coated Fiberglass Cloth For Fabric Expansion Joint supplier 0.5mm 3732 Black Silicone Rubber Coated Fiberglass Cloth For Fabric Expansion Joint supplier 0.5mm 3732 Black Silicone Rubber Coated Fiberglass Cloth For Fabric Expansion Joint supplier 0.5mm 3732 Black Silicone Rubber Coated Fiberglass Cloth For Fabric Expansion Joint supplier

Large Image :  0.5mm 3732 Black Silicone Rubber Coated Fiberglass Cloth For Fabric Expansion Joint

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8732S80

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $2.5-3.5/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Contact Now
Detailed Product Description
Base Cloth: 3732 Fiberglass Fabric Coating: Black Silicone, 80g/m2 On Single Side
Total Thickness: 0.5mm Weight: 430g/m2+80g/m2
Width: 100cm Feature: Thermal Insulation, Flexibility
Weave: 8H Satin Keyword: Black Silicone Coated Fiberglass Fabric

0.5mm 3732 Black Silicone Coated Fiberglass Cloth For Fabric Expansion Joint




Silicone coated glassfiber fabrics for industrial insulation and fire/smoke protection are made from alkali -free E-glass fiber yarns which loomstate fabric can resist 550°C/1022°F. For the production of silicone coated fiberglass fabric, the glass yarns is in a filament diameter of 9 µm. Then it has been coated or impregnated with a black silicone/rubber on one side or both sides. This rubber coated fiber glass fabric is very flexible but also high strength. It combines the high strength of e-glass fiber glass cloth and chemical resistance of silicone coating, which make the coated cloth have advantages such as stable dimension, tear resistance and electrical insulation.



The uncoated basic fiberglass fabric 3732 can resist temperature below 550℃. But the rubber/silicone coating can resist 260 degree Celsius. And base on the features of silicone coating and basic fiberglass fabric, application of silicone coated fiberglass cloth are mainly for thermal insulation and electrical insulation, such as fire blankets/curtains/gloves, fabric expansion joints, thermal insulation exhaust blanket for pump/pipeline and other fire fighting equipments.




Specification Of UPSE-8732S80:

Item Silicone Coated Fiberglass Fabric
Material E-glass Fiber Glass
Weave 8H Satin
Warp Density 20 Ends/CM
Weft Density 11 Ends/CM
Mass Per Unit 510g/m2(430+80)
Coating Black silicone, 80g/m2
Thickness 0.5mm
Width 100cm
Working Temperature

Silicone Coating below 260℃


Features:




  • Fireproof, thermal insulation
  • Anti chemical agents, acid and alkali
  • Water and oil proof.
  • Dimension stability
  • High tensile strength, durable
  • Abrasion corrosion resistance
  • Electric insulation
  • Service temperature from -50℃ to 260


Application:



Depending on the various application, silicone coated fabrics have different thickness. This 0.5mm silicone coated material is suitable for fire/smoke protection and thermal/acoustic insulation in most field



  • Power heat/electrical insulation blanket
  • Automotive heat protection
  • Metal and aviation industries, welding blanket
  • Shipbuilding cover
  • Construction electrical protection cover

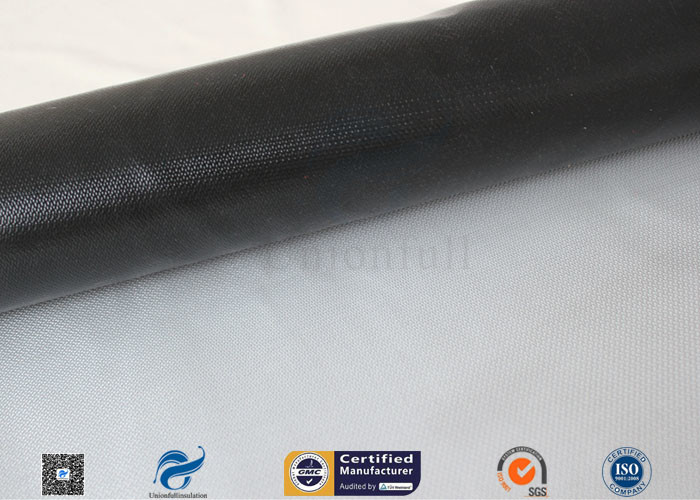

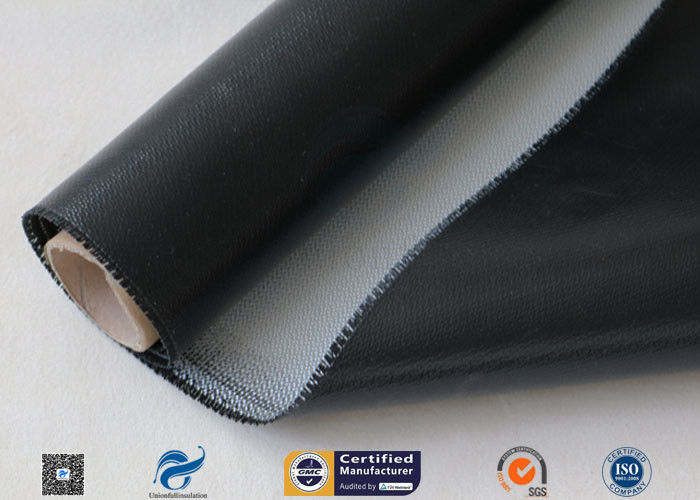

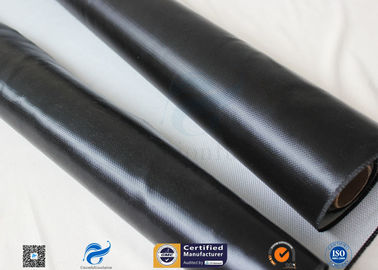

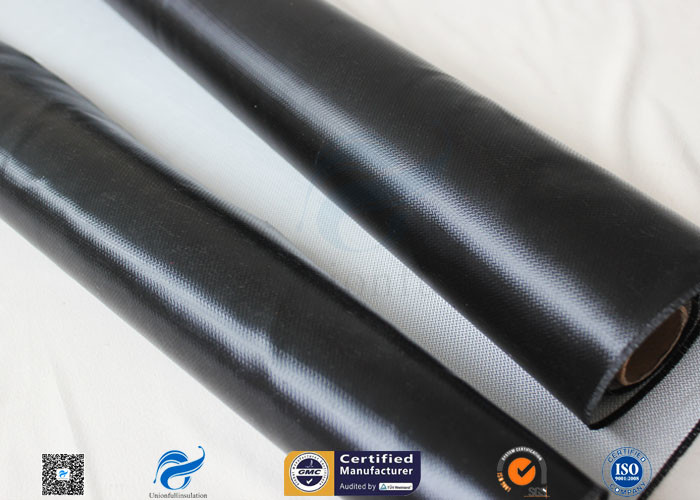

Picture:



0.5mm 3732 Black Silicone Rubber Coated Fiberglass Cloth For Fabric Expansion Joint0.5mm 3732 Black Silicone Rubber Coated Fiberglass Cloth For Fabric Expansion Joint
