0.9mm Red Silicone Coated Fiberglass Fabric , Generator Thermal Insulation Materials

China 0.9mm Red Silicone Coated Fiberglass Fabric , Generator Thermal Insulation Materials supplier
0.9mm Red Silicone Coated Fiberglass Fabric , Generator Thermal Insulation Materials supplier 0.9mm Red Silicone Coated Fiberglass Fabric , Generator Thermal Insulation Materials supplier 0.9mm Red Silicone Coated Fiberglass Fabric , Generator Thermal Insulation Materials supplier 0.9mm Red Silicone Coated Fiberglass Fabric , Generator Thermal Insulation Materials supplier

Large Image :  0.9mm Red Silicone Coated Fiberglass Fabric , Generator Thermal Insulation Materials

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8784S80

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $2.5-3.5/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Contact Now
Detailed Product Description
Base Cloth: 3784 Fabric Coating: Red Silicone, 80gsm On One Side
Total Thickness: 0.9mm Weight: 850g/m2+80g/m2 Coating
Width: 100cm Feature: Electric Insulation, Fire Resistance
Weave: Satin Weave Keyword: Silicone Coated Fiber Glass Fabric

0.9mm Red Silicone Coated Fiberglass Fabric For Generator Thermal Insulation


Process of this red silicone coated fiber glass cloth is coating the fiberglass fabric with 40g/m2 red silicone/rubber on its single side. Fiber glass materials is an great performed thermal insulation materials which is widely used in industrial field. The fiber glass fabric can withstand a high temperature of 550℃. And the rubber/silicone coating is able to bear 260 degree Celsius continuously.

Silicone coated fiberglass fabric is a high strength and fireproof fabric. It is produced from e-glass fiberglass woven fabric, with advantages such as chemical resistance, structure stability, high strength and electrical insulation. Based on its electrical insulation and thermal insulation, silicone coated fiberglass fabric is always used to produce fire blanket or thermal insulation blanket for generator and other electrical equipment. What's more, it will also used for fabric expansion joints, pump/valve thermal insulation jacket and heat insulation gloves.


Yarn type of this silicone coated  fabric is e-glass EC9 33 4×2/EC9 33 4×2.
Total weight of this 3784 silicone coated fiberglass fabric is 930g/m2, 850g/m2 basic fabric and 80g/m2 red silicone coating on one side. Common widths are 100cm, 127cm, 155cm.





Specification Of UPSE-8732S80:

Item Silicone Coated Fiberglass Fabric
Material E-glass Fiber Glass
Coating Red Silicone, One side
Weave 8H Satin Weave
Warp Density 18 Ends/CM
Weft Density 13 Ends/CM
Mass Per Unit 930g/m2(850+80)
Thickness 0.9mm
Width 100cm
Working Temperature

Silicone Coating below 260℃


Features:



  • Heat Insulation
  • Heavy duty
  • Chemical resistance
  • Abrasion resistance
  • High strength
  • Electric insulation
  • Service temperature of coating from -50 degree to 260 degree Celsius.


Application:



  1. Cold protection blanket
  2. Thermal insulation covers
  3. Fire doors, fire curtains
  4. Fire protective products
  5. Fabric expansion joint


Data Sheet of 3784 Fiberglass Fabric:



Items 3784
Weave 8HS Satin
Yarn (tex) Warp
Weft
EC9 33 4×2
EC9 33 4×2
Thickness 0.8±0.08mm
Weight 850±44g/m²
Thread Count Warp
Weft
18±1.8/cm
13± 1.3/cm
Tensile Strength Warp
Weft
8000N/5cm
6000N/5cm
Working Temperature

550°C



Picture:

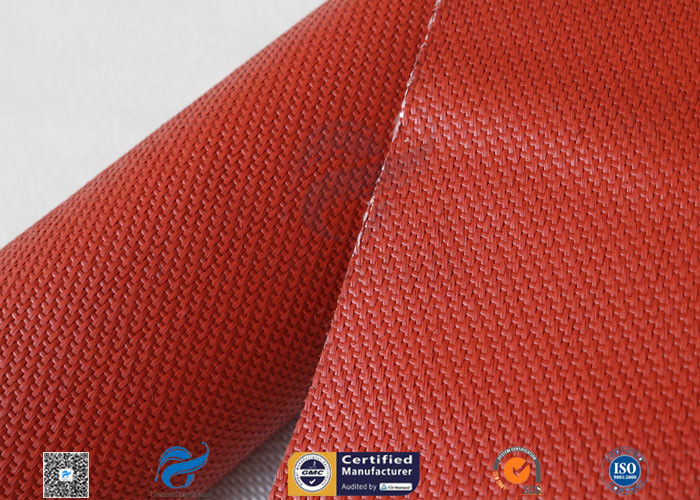

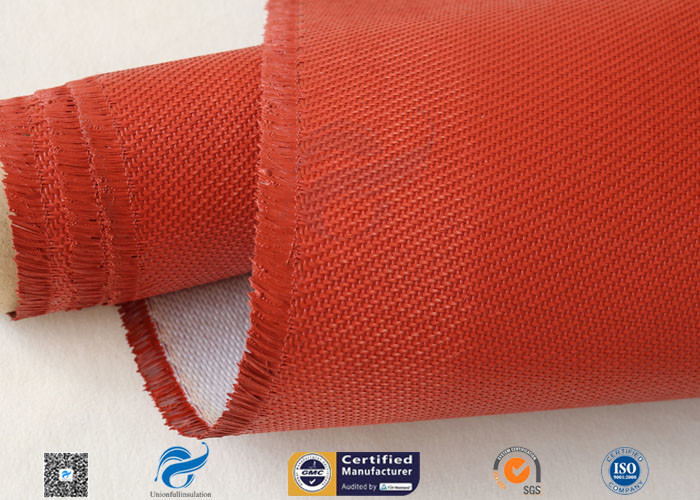

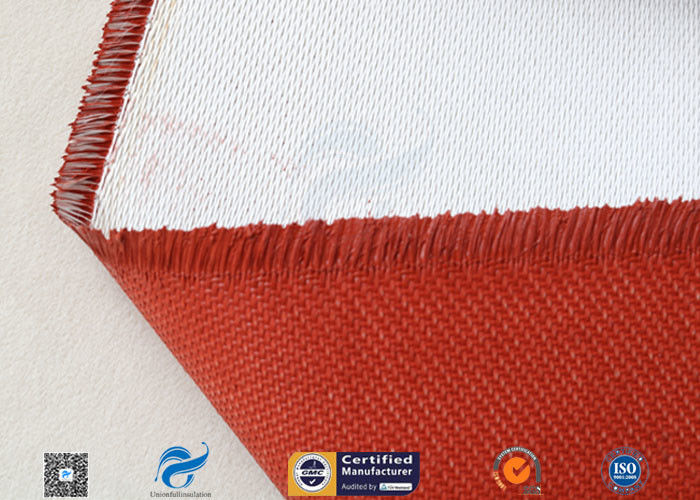

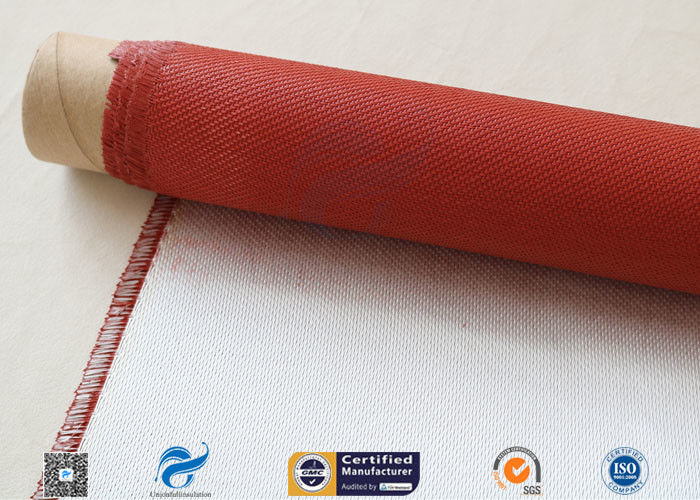

0.9mm Red Silicone Coated Fiberglass Fabric , Generator Thermal Insulation Materials0.9mm Red Silicone Coated Fiberglass Fabric , Generator Thermal Insulation Materials
