Flexible Black Silicone Coated Fiberglass Fabric For Fire / Welding Blanket

China Flexible Black Silicone Coated Fiberglass Fabric For Fire / Welding Blanket supplier
Flexible Black Silicone Coated Fiberglass Fabric For Fire / Welding Blanket supplier Flexible Black Silicone Coated Fiberglass Fabric For Fire / Welding Blanket supplier Flexible Black Silicone Coated Fiberglass Fabric For Fire / Welding Blanket supplier Flexible Black Silicone Coated Fiberglass Fabric For Fire / Welding Blanket supplier

Large Image :  Flexible Black Silicone Coated Fiberglass Fabric For Fire / Welding Blanket

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8732S100

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $2.5-3.5/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Contact Now
Detailed Product Description
Base Cloth: 3732 Fiberglass Fabric Coating: Black Silicone, 80gsm On One Side
Total Thickness: 0.5mm Weight: 430g/m2+100g/m2 Coating
Width: 100cm Feature: Thermal Insulation, Electric Insulation
Weave: Satin Weave Keyword: Black Silicone Coated Fiberglass Fabric

Black Silicone Coated Fiberglass Cloth For Fire / Welding Blanket



Silicone coated fiber glass cloth is made from woven fiberglass cloth which is coated with or impregnated with a black silicone/rubber on one side or both sides. Fiberglass fabric is a flexible but very durable, tear resistant fire resistant fabric. What's more,  with silicone/rubber coating, the coated fabric has features of
fire resistance, dimension stability, durability, electrical insulation and chemical resistance.


The basic fiberglass fabric is 3732 fiber glass fabric which can withstand a temperature below 550℃. But the black rubber/silicone coating can resist 260. And according to the properties of silicone coating, this coated fiber glass fabric are widely used for production of industrial used products, such as fire/welding blanket or curtain, expansion joint, thermal insulation jacket/exhaust blanket for valve/pump/pipeline and other fire fighting covers.

Yarn type of this
basic cloth 3732 is G37 1/0 0.7Z e-glass fiber glass yarns. Weight of this 3732 fabric is 430g/m2. Its total weight including silicone coating will be 530g/m2, 430g/m2 fabric+100g/m2 black silicone coating on one side. 100cm and 127cm are very common  width we produce.


Technical Data Of 3732 Fabric

Style Weave Thread Count Thickness Weight Width
3732 Satin

20 Ends/CM

11 Ends/CM

0.4mm 430g/m2 1m-3.2m




Specification Of UPSE-8732S100:

Item Silicone Coated Fiberglass Fabric
Material E-glass Fiberglass
Weave Satin Weave
Warp Density 20 Ends/CM
Weft Density 11 Ends/CM
Mass Per Unit 530g/m2(430+100)
Thickness 0.5mm
Width 100cm, 127cm, 155cm
Working Temperature

Silicone Coating below 260℃


Features:


  • Fire resistance
  • Stable dimension
  • Seamless finish
  • Electrical insulation
  • Abrasion resistance
  • Anti chemical agent


Application:



  • Shrink Tunnels Curtains
  • Foam Manufacturing
  • Fire Curtains/Blanket
  • Electrical Insulation Cover
  • Conveyor Belts
  • Safety Clothing

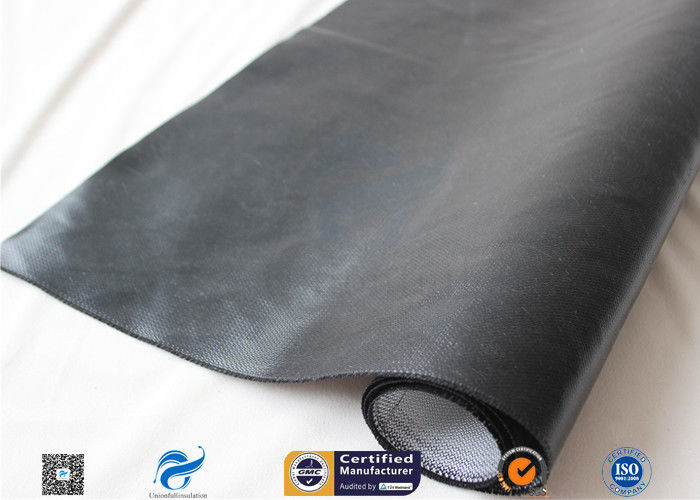

Picture:



Flexible Black Silicone Coated Fiberglass Fabric For Fire / Welding BlanketFlexible Black Silicone Coated Fiberglass Fabric For Fire / Welding Blanket
