Black Silicone Coated Fiberglass Fabric For Thermal Insulation Blanket

Good quality Thermal Insulation Materials for sales
Good quality Thermal Insulation Materials for sales
Satisfied with your Quality and service,I will introduce some my partners to you for cooperation

—— Christian Juchem(Brazil)

نحن جد المسرور في التعاون مع الشركة jotex.علشان لديهم عدة المميزات سواء من ناحية جودة المنتجات أو موعد تسليم البضائع و هم يراعون في مصلحات الزبائن دا

—— Amjad Iqbal Syed(UAE)

You are very persistent….

—— Gloria Reed(USA)

I'm Online Chat Now

Black Silicone Coated Fiberglass Fabric For Thermal Insulation Blanket

China Black Silicone Coated Fiberglass Fabric For Thermal Insulation Blanket supplier
Black Silicone Coated Fiberglass Fabric For Thermal Insulation Blanket supplier Black Silicone Coated Fiberglass Fabric For Thermal Insulation Blanket supplier Black Silicone Coated Fiberglass Fabric For Thermal Insulation Blanket supplier Black Silicone Coated Fiberglass Fabric For Thermal Insulation Blanket supplier

Large Image :  Black Silicone Coated Fiberglass Fabric For Thermal Insulation Blanket

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8732S80

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $2.5-3.5/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Contact Now
Detailed Product Description
Base Cloth: 3732 Fiberglass Fabric Coating: Black Silicone, 80gsm On One Side
Total Thickness: 0.5mm Weight: 430g/m2+80g/m2 Coating
Width: 100cm Feature: Thermal Insulation, Electric Insulation
Weave: Satin Weave Keyword: Black Silicone Coated Fiberglass Fabric

Black Silicone Coated Fiberglass Fabric For Thermal Insulation Blanket



Silicone coated fiberglass cloth is produced from woven fiberglass basic cloth which has been coated with or impregnated with black silicone/rubber on single side or both sides. Silicone coated fiberglass fabric is a flexible but very high tensile strength fire resistant fabric. It keeps the
advantages of e-glass fiberglass basic fabric, such as fire resistance, dimension stability, durability and chemical corrosion resistance.


The basic fiberglass fabric is 3732 which is able to withstanding high temperature below 550℃. But the black rubber/silicone coating can resist 260. And base on the features of silicone coating, this coated fiberglass cloth are usually used to produce industrial products such as fire blankets and curtains, expansion joints, thermal insulation jacket/exhaust blanket for valve/pump/pipeline and other fire fighting equipments.

Yarn type of
basic cloth 3732 is e-glass G37 1/0 0.7Z fiber glass yarns. Weight per unit area of this fabric is 430g/m2. Its total weight including silicone coating will be 510g/m2. 430g/m2+80g/m2 black silicone coating on one side. Common and convenient width we produce is 100cm, 127cm, 155cm.


Technical Data Of 3732 Fabric

Style Weave Thread Count Thickness Weight Width
3732 Satin

20 Ends/CM

11 Ends/CM

0.4mm 430g/m2 1m-3.2m




Specification Of UPSE-8732S80:

Item Silicone Coated Fiberglass Fabric
Material E-glass Fiber Glass
Weave Satin Weave
Warp Density 20 Ends/CM
Weft Density 11 Ends/CM
Mass Per Unit 510g/m2(430+80)
Thickness 0.5mm
Width 100cm, 127cm, 155cm
Working Temperature

Silicone Coating below 260℃


Features:


  • Firm design
  • Correct dimension
  • Seamless finish
  • Excellent release properties
  • Abrasion resistance
  • Great Heat resistance


Application:



  • Shrink Tunnels Curtains
  • Foam Manufacturing
  • Electrical Insulation Cover
  • Conveyor Belts
  • Safety Curtains/Blanket
  • Gasketing
  • Plasma Tapes

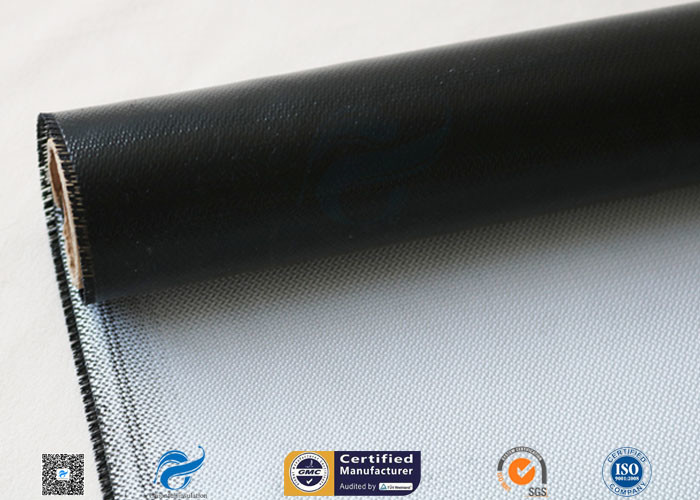

Picture:

Black Silicone Coated Fiberglass Fabric For Thermal Insulation BlanketBlack Silicone Coated Fiberglass Fabric For Thermal Insulation Blanket
