Aluminized Plated Fiber Glass Cloth Decoration Silver Coated Fiberglass Fabric

China Aluminized Plated Fiber Glass Cloth Decoration Silver Coated Fiberglass Fabric supplier
Aluminized Plated Fiber Glass Cloth Decoration Silver Coated Fiberglass Fabric supplier Aluminized Plated Fiber Glass Cloth Decoration Silver Coated Fiberglass Fabric supplier Aluminized Plated Fiber Glass Cloth Decoration Silver Coated Fiberglass Fabric supplier Aluminized Plated Fiber Glass Cloth Decoration Silver Coated Fiberglass Fabric supplier

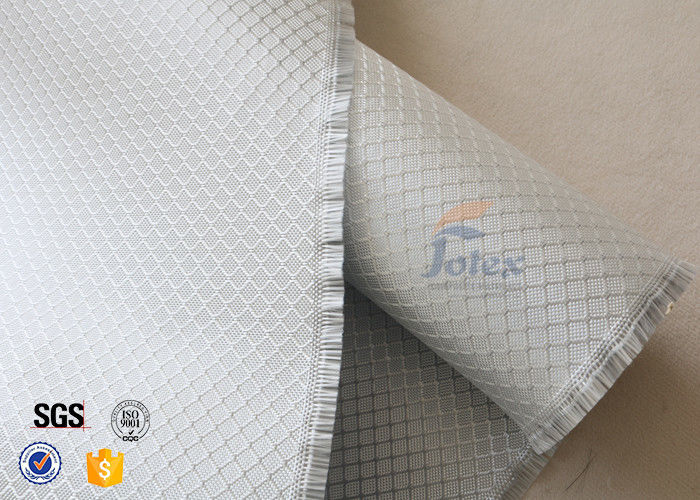

Large Image :  Aluminized Plated Fiber Glass Cloth Decoration Silver Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS
Model Number: JT8220SP-20-100

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: US$5.45-6.55/Square Meter
Packaging Details: 100m one roll in poly bag.
Delivery Time: 15 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 Square Meters Per Day
Contact Now
Detailed Product Description
Base Cloth: 7119 Fiberglass Fabric Total Weight: 220g/m2
Thickness: 0.2mm Weave: 12HS
Type: E-glass Surface: Checked
Width: 100cm Application: Fire Resistant, Surface Decoration

220g Checked Aluminized Plated Fiber Glass Cloth Decoration Silver Coated Fiberglass Fabric



This aluminized plated/silver coated fiberglass fabric is woven from e-glass fiberglass yarns and the surface treatment is silver plated. The total weight per unit area of the fabric is 220g/m2. Thickness is 0.2mm. The basic cloth fiberglass fabric is a very high strength and durable fabric with great fire resistant ability. After the special silver plated coating, the plated fabric keeps the properties of fiberglass fabric, but meanwhile it also has the new features of aluminized coating.



The base cloth 7719 fiberglass fabric performs well at the temperatures ranging from -100° F to 1022° F. However, the aluminized/silver coating can withstand 500°F/260℃. Because of its high temperature resistance and special checked surface pattern, this fabric is always used for thermal insulation and surface decoration of car, motocycle, sport products or fireproof inner lining of bags.





Specification Of JT8220SP-20-100:



Product Model JT8220SP-20-100
Material Aluminized/Silver Plated Fiberglass Fabric
Weave Satin Weave
Yarn Tex Warp 68 tex 1/0
Weft 68 tex 1/0
Ends Warp/Weft(cm) 17/15
Total Weight 220g/m2
Thickness 0.2mm
Width 100cm
Service Temperature

Fibre Glass Cloth: 550℃

Silver Plated Coating: 260



Features:



  1. Heat protection
  2. Abrasion resistance
  3. Waterproof
  4. High tensile strength
  5. Mildew proof
  6. Chemical corrosion resistance
  7. Low moisture absorption



Application



  • Packing Materials
  • Sport Products
  • Hot Work Protection
  • Safety Protection Systems
  • Fabricated Curtains/Blankets
  • Automotive Engine Heat Containment
  • Car Decoration
  • Inner Liner of Special application products
  • Construction
  • Chemical Processing
  • Petroleum Refineries
  • Automotive Industry
