0.45mm Chemical Corrosion Resistant Orange Silicone Coated Fiberglass Cloth Fabric

China 0.45mm Chemical Corrosion Resistant Orange Silicone Coated Fiberglass Cloth Fabric supplier
0.45mm Chemical Corrosion Resistant Orange Silicone Coated Fiberglass Cloth Fabric supplier 0.45mm Chemical Corrosion Resistant Orange Silicone Coated Fiberglass Cloth Fabric supplier 0.45mm Chemical Corrosion Resistant Orange Silicone Coated Fiberglass Cloth Fabric supplier 0.45mm Chemical Corrosion Resistant Orange Silicone Coated Fiberglass Cloth Fabric supplier

Large Image :  0.45mm Chemical Corrosion Resistant Orange Silicone Coated Fiberglass Cloth Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8732S40

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $2.5-3.5/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Contact Now
Detailed Product Description
Base Cloth: 3732 Fiberglass Fabric Coating: Orange Silicone, 40gsm On One Side
Total Thickness: 0.45mm Weight: 430g/m2+40g/m2
Width: 100cm Feature: Chemical Resistance, Electric Insulation
Weave: Satin Weave Keyword: Silicone Coated Fiber Glass Fabric

0.45mm Chemical Corrosion Resistant Orange Silicone Coated Fiberglass Fabric


One side silicone coated fiberglass fabric is made of glass fiber woven fabric. It is coated with 40g/m2 orange silicone/rubber on one side. The basic fiberglass fabric is 3732 which is able to resisting a high temperature of 550 degree Celsius. But when it is coated orange rubber/silicone, the coating can withstand only 260 degree Celsius.

Silicone coated fiberglass fabric is a flexible but durable, fire resistant fabric. It is made from e-glass fiberglass cloth which has great features such as
dimension stability, chemand high strength. And because of the silicone coating's special properties, this silicone coated fiberglass fabric is always used in industrial field products such as fire blanket, expansion joints, pump/pipeline thermal insulation jackets and fire fighting equipments.


Fiber glass yarn of this silicone coated  fabric is e-glass G37 1/0 0.7Z yarn.
Total weight of this silicone coated fiber glass fabric will be about 470g/m2. 430g/m2+40g/m2 coating on single side. 100cm, 127cm, 155cm are very common and convenient width we produce
(more economical price and less lead time)


Technical Data Of 3732 Fiberglass Fabric

Style Weave Thread Count Thickness Weight Width
3732 Satin

20 Ends/CM

11 Ends/CM

0.4mm 430g/m2 1m




Specification Of UPSE-8732S40:

Item Orange Silicone Coated Fiberglass Fabric
Material E-glass Fiber Glass
Weave Satin Weave
Warp Density 20 Ends/CM
Weft Density 11 Ends/CM
Mass Per Unit 470g/m2(430+40)
Thickness 0.45mm
Width 100cm
Working Temperature

Silicone Coating below 260℃


Features:



  • Chemical corrosion resistance
  • Smooth surface, excellent release features
  • Abrasion resistance
  • Tear resistance, durable
  • Electricial insulation
  • Service temperature from -50℃ to 260℃


Application:



  1. Cold/heat protection covers
  2. Fire blanket & fire curtains
  3. Cable, pipeline, pump thermal insulation covers
  4. Jacketed vessel insulation covers
  5. Fabric ductwork connector
  6. Exchanger insulation covers

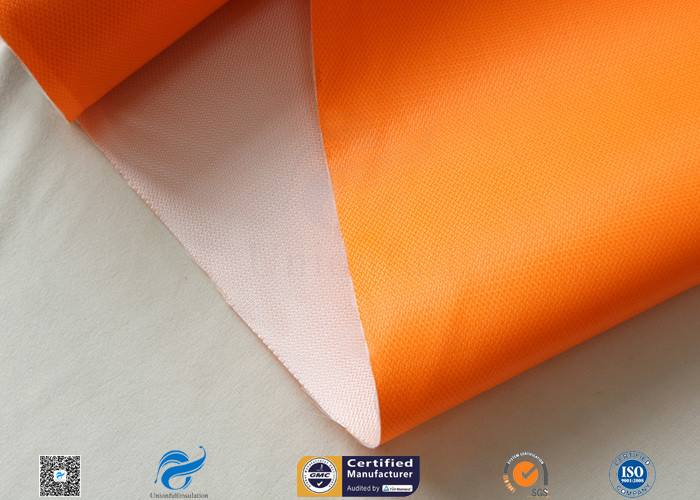

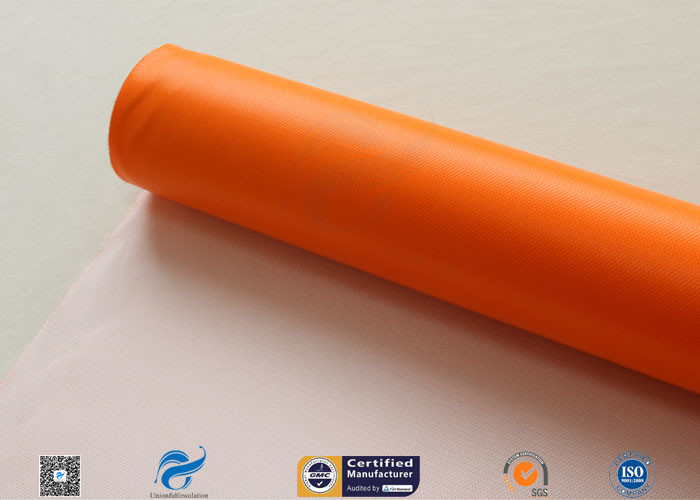

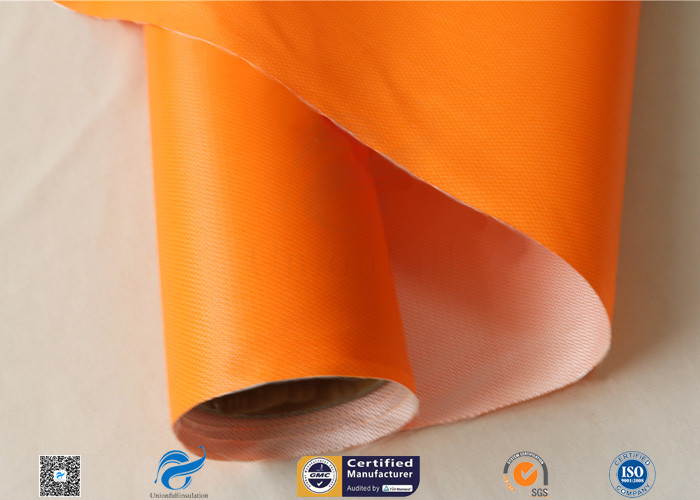

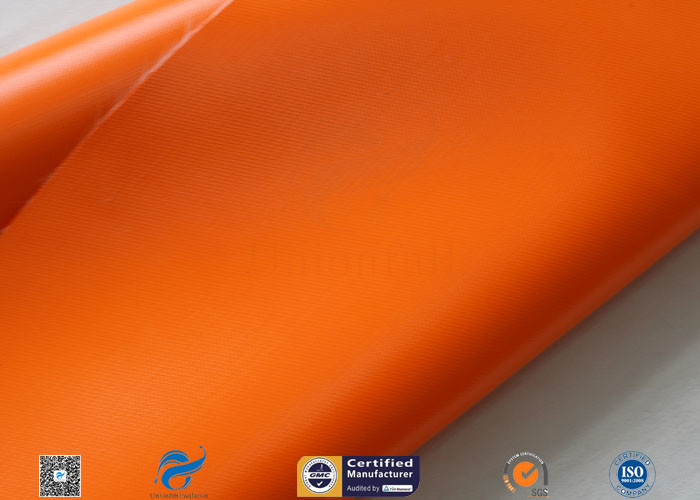

Picture:



0.45mm Chemical Corrosion Resistant Orange Silicone Coated Fiberglass Cloth Fabric0.45mm Chemical Corrosion Resistant Orange Silicone Coated Fiberglass Cloth Fabric
