530g Black Silicone Coated Fiberglass Fabric For Valve Thermal Insulation Cover

China 530g Black Silicone Coated Fiberglass Fabric For Valve Thermal Insulation Cover supplier
530g Black Silicone Coated Fiberglass Fabric For Valve Thermal Insulation Cover supplier 530g Black Silicone Coated Fiberglass Fabric For Valve Thermal Insulation Cover supplier 530g Black Silicone Coated Fiberglass Fabric For Valve Thermal Insulation Cover supplier 530g Black Silicone Coated Fiberglass Fabric For Valve Thermal Insulation Cover supplier

Large Image :  530g Black Silicone Coated Fiberglass Fabric For Valve Thermal Insulation Cover

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8732S100

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $2.5-3.5/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Contact Now
Detailed Product Description
Base Cloth: 3732 Fiberglass Fabric Coating: Black Silicone, 100gsm On One Side
Total Thickness: 0.5mm Weight: 430g/m2+100g/m2 Coating
Width: 100cm Feature: Thermal Insulation, Electric Insulation
Weave: Satin Weave Keyword: Black Silicone Coated Fiberglass Fabric

530g Black Silicone Coated Fiberglass Fabric For Valve Thermal Insulation Cover



Silicone coated fiberglass cloth is made from woven fiberglass substrates that have been coated with or impregnated with black silicone/rubber coating on one side. Silicone coated fiberglass fabric is a very flexible, high strength and fire resistant fabric. It is made from fireproof e-glass fiber glass cloth with advantages such as dimension stability, durability and corrosion resistance.


The basic fiberglass fabric 3732 can withstand a high temperature below 550℃. But the black rubber/silicone coating can resist 260 degree C. And base on the properties of silicone coating, this coated fiberglass cloth are usually used to produce industrial products such as fire blankets and curtains, expansion joints, thermal insulation covers/exhaust blanket for jacketed vessel/pump/pipeline and other fire fighting equipments.

About the baisc cloth 3732, its yarn type is e-glass G37 1/0 0.7Z fiberglass yarns. Weight per unit area is 430g/m2. After coating its total weight can be 530g/m2. 430g/m2+100g/m2 black silicone coating on one side. 100cm, 127cm, 155cm is very common and convenient width we produce. (more economical price and less lead time)


Technical Data Of 3732 Fabric

Style Weave Thread Count Thickness Weight Width
3732 Satin

20 Ends/CM

11 Ends/CM

0.4mm 430g/m2 1m-3.2m




Specification Of UPSE-8732S100:

Item Silicone Coated Fiberglass Fabric
Material E-glass Fiber Glass
Weave Satin Weave
Warp Density 20 Ends/CM
Weft Density 11 Ends/CM
Mass Per Unit 530g/m2(430+100)
Thickness 0.5mm
Width 100cm, 127cm, 155cm
Working Temperature

Silicone Coating below 260℃


Features:




  • Fire resistance
  • Chemical agent resistance
  • Water and oil resistance.
  • Structure stability
  • Durable, abrasion resistance
  • Tear resistance, excellent tensile strength
  • Low elongation
  • Electric insulation
  • Service temperature from -50 degree to 260 degree




Application:



  1. Electric insulation protection
  2. Cold protection covers
  3. Fire doors & fire curtains
  4. strainer cover, pump thermal insulation blankets
  5. Fire safety clothing
  6. Expansion joints
  7. sports facilities

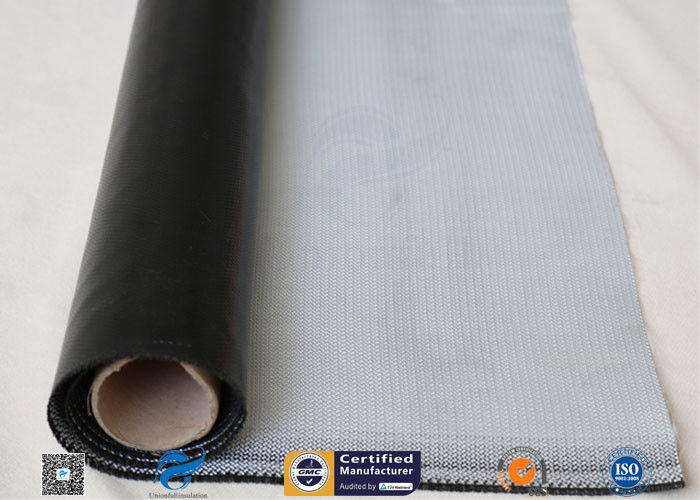

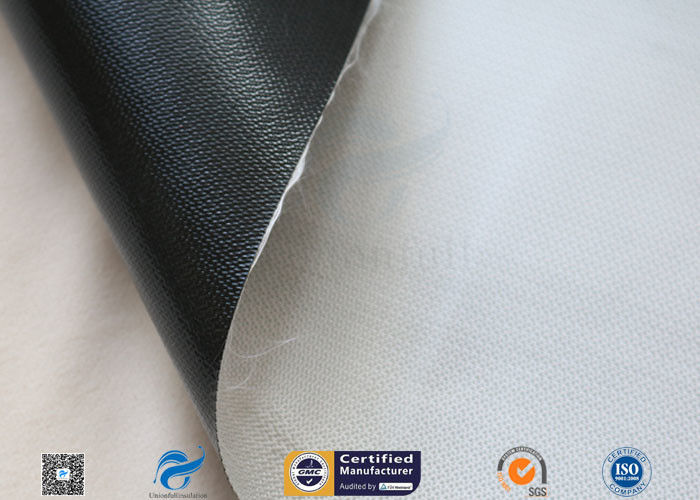

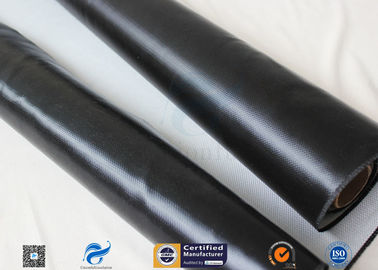

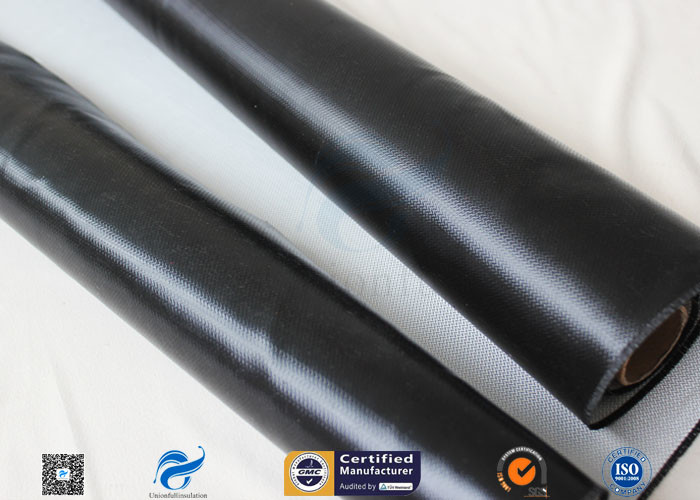

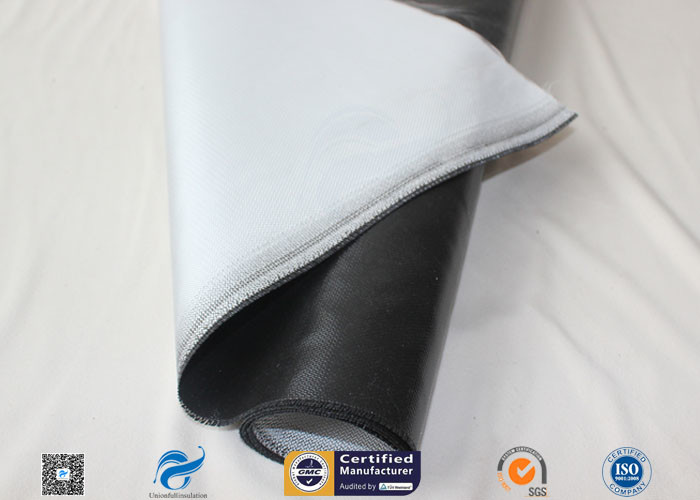

Picture:



530g Black Silicone Coated Fiberglass Fabric For Valve Thermal Insulation Cover530g Black Silicone Coated Fiberglass Fabric For Valve Thermal Insulation Cover
