0.5mm Aluminium Foil / Silver Coated Fabric Fibreglass Fabric For Heat Protection

China 0.5mm Aluminium Foil / Silver Coated Fabric Fibreglass Fabric For Heat Protection supplier
0.5mm Aluminium Foil / Silver Coated Fabric Fibreglass Fabric For Heat Protection supplier 0.5mm Aluminium Foil / Silver Coated Fabric Fibreglass Fabric For Heat Protection supplier 0.5mm Aluminium Foil / Silver Coated Fabric Fibreglass Fabric For Heat Protection supplier 0.5mm Aluminium Foil / Silver Coated Fabric Fibreglass Fabric For Heat Protection supplier

Large Image :  0.5mm Aluminium Foil / Silver Coated Fabric Fibreglass Fabric For Heat Protection

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: JT8430AFS-50-100

Payment & Shipping Terms:

Minimum Order Quantity: 500 meters
Price: $2.85--$4.35/m2
Packaging Details: One roll with poly bag
Delivery Time: 20 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 Square Meters Per Day
Contact Now
Detailed Product Description
Base Cloth: 3732 Fiberglass Cloth Total Weight: 520g/m2
Total Thickness: 0.5mm Width: 100cm, 127cm
Color: One Side Grey, One Side Silver Feature: Fireproof, Heat Reflective, High Stength
Item Name: 0.5mm Aluminium Foil/Silicone Coated Fibreglass Fabric For Heat Protection Keyword: Fiberglass Cloth, Aluminium Foil Fiberglass Fabric

3732 0.5mm Aluminium Foil/Silicone Coated Fibreglass Fabric For Heat Protection

JT8430AF consists of a woven fiberglass fabric 3732(430g/m2) that has been laminated with a layer of aluminium foil by a high temperature adhersive. Then coated grey silicone on another side. So the total mass per unit area is 520g/m2. Thickness can be 0.5mm.

This base fabric 3732 performs well under a temperature ranging from -100° F to 1022° F. And the aliminium foil should be used below 1220°F/660℃. However, it does need time for aluminium foil to bear enough heat to melt, so in fact it can withstand higher temperature for a short time. The adhersive will melt above 300℃. For another side silicone coating, it is very close. Coating can be used below 260℃.

The foiled fiberglass cloth offers superior performance in a wide range of temperatures because of its high quality raw materials and advanced production techniques. It keeps wonderful flexibility without delamination phenomenon at temperatures between -40℃ and 550℃. Tested according to ASTM E96 standard, this reflective material offers water vapor transmission rate up to 5.75 ng/N.s, ensuring its high water vapor resistance.

This one side aluminium foil one sidee silicone coated fabric usually used for thermal insulating materials for heating pipelines, sound insulation materials in construction and protective layer of super glass wool with excellent functions of fire resistant, abrasion corrosion resistant, thermal insulation and sound absorbability. It can also be used as packing materials for the export equipment with the functions of waterproof, mildew proof, fire - existence.


  • Thickness of alu. foil: 7um, 18um, 25um, 50um(max)
  • Common Width: 101.6cm/121.9cm/152.4cm
  • Roll Length: 50-100m/as customers' requirements



Product Model JT8430AFS-50-100
Material Aluminium Foil/Silicone Fiberglass Fabric
Weave Satin Weave
Yarn Tex Warp EC9 33 2X2
Weft EC9 33 2X2
Total Weight 520 g/m2
Thickness 0.5mm
Thickness Of Aluminium Foil 7micron/18micron/25micron

Tensile

Strength

Warp 6000 N/5cm
Weft 4500 N/5cm
Width 100cm, 127cm
Service Temperature

Fibre Glass Cloth: 550℃

Adhersive: 300℃



Features:


  1. Heat Reflective
  2. Abrasion Resistant
  3. Waterproof
  4. High Tensile Strength
  5. Anti Chemical Corrosion
  6. Low Moisture Absorption
  7. Electrical Insulation


Application


  • Hot Work Protective Wear
  • Protection from Weather Elements
  • Gas and Liquid Euipment Coverings
  • Covering for Removable Thermal Insulations
  • Fabricated Curtains/Blankets
  • Automotive Engine Heat Containment
  • Vertical Spark Protection
  • Construction
  • Chemical Processing
  • Petroleum Refineries
  • Automotive Industry
  • Maritime

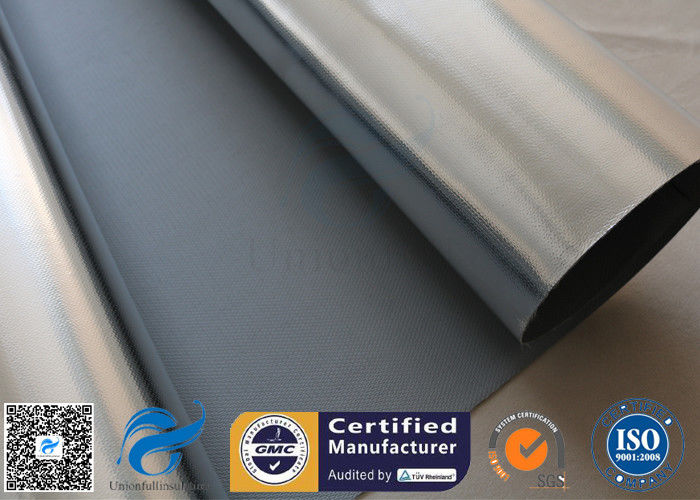

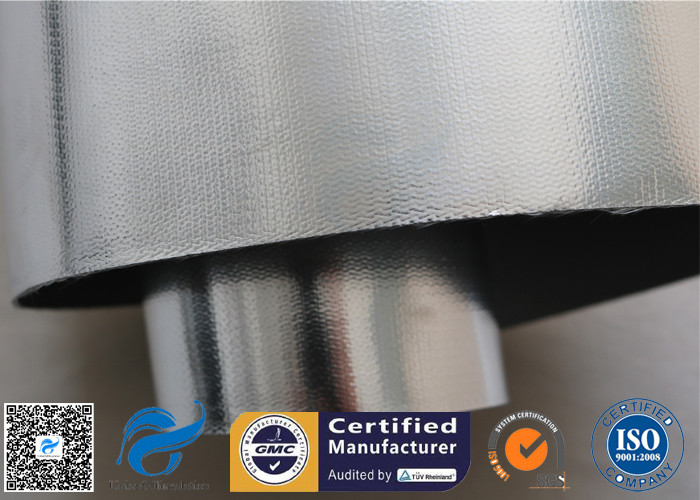

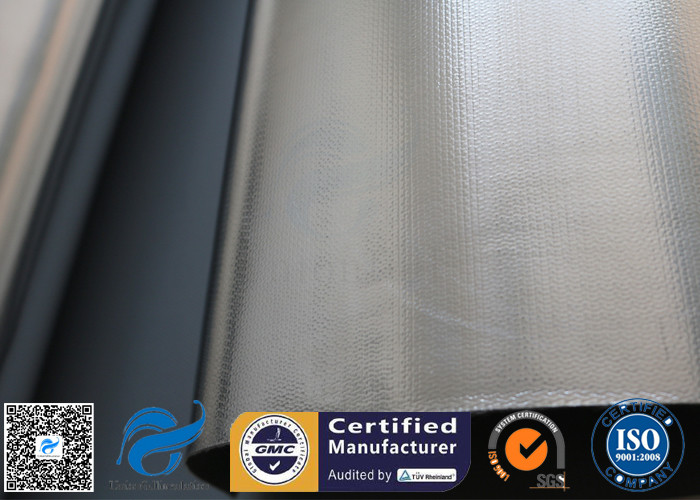

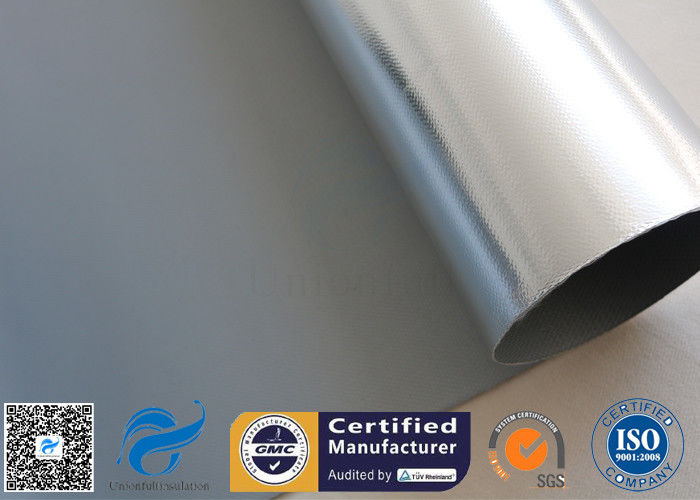

 Picture:


0.5mm Aluminium Foil / Silver Coated Fabric Fibreglass Fabric For Heat Protection
