0.43mm Reflective Aluminium Foil Fabric Fibreglass 3732 480g/M2

Good quality Thermal Insulation Materials for sales
Good quality Thermal Insulation Materials for sales
Satisfied with your Quality and service,I will introduce some my partners to you for cooperation

—— Christian Juchem(Brazil)

نحن جد المسرور في التعاون مع الشركة jotex.علشان لديهم عدة المميزات سواء من ناحية جودة المنتجات أو موعد تسليم البضائع و هم يراعون في مصلحات الزبائن دا

—— Amjad Iqbal Syed(UAE)

You are very persistent….

—— Gloria Reed(USA)

I'm Online Chat Now

0.43mm Reflective Aluminium Foil Fabric Fibreglass 3732 480g/M2

China 0.43mm Reflective Aluminium Foil Fabric Fibreglass 3732 480g/M2 supplier
0.43mm Reflective Aluminium Foil Fabric Fibreglass 3732 480g/M2 supplier 0.43mm Reflective Aluminium Foil Fabric Fibreglass 3732 480g/M2 supplier 0.43mm Reflective Aluminium Foil Fabric Fibreglass 3732 480g/M2 supplier 0.43mm Reflective Aluminium Foil Fabric Fibreglass 3732 480g/M2 supplier

Large Image :  0.43mm Reflective Aluminium Foil Fabric Fibreglass 3732 480g/M2

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPEAL-8732

Payment & Shipping Terms:

Minimum Order Quantity: 500 meters
Price: $2.3--$3.85/m2
Packaging Details: One roll with poly bag
Delivery Time: 15 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 Square Meters Per Day
Contact Now
Detailed Product Description
Base Cloth: 3732 Fiberglass Cloth Total Weight: 480g/m2
Total Thickness: 0.43mm Width: 100cm, 127cm, 155cm
Color: One Side White, One Side Silver Feature: Fireproof, Heat Reflective, High Stength
Item Name: Aluminium Foil Fiberglass Fabric For Reflective Fire Fighter Suits Keyword: Fiberglass Cloth, Aluminium Foil Fiberglass Fabric

3732 480g/m2 Reflective Aluminium Foil Fibreglass Fabric For Heat Protection

UPEAL-8732 consists of a woven fiberglass fabric 3732(430g/m2) that has been laminated with a layer of aluminium foil by a special adhersive. The total mass per unit area is 480g/m2. Thickness is 0.43mm.

This base fabric 3732 performs well under temperatures ranging from -100° F to 1022° F. And the aluminiul foil should be used below 1220°F/660℃. However, it does need time for aluminium foil to absorb enough heat to melt, so in fact it can withstand short exposure to higher temperature. The adhersive will melt above 300℃.

The foiled fiberglass cloth offers superior performance in a wide range of temperatures because of its high quality raw materials and advanced production techniques. It keeps wonderful flexibility without delamination phenomenon at temperatures between -40℃ and 550℃. Tested according to ASTM E96 standard, the material offers water vapor transmission rate up to 5.75 ng/N.s, ensuring its high water vapor resistance.

It is mainly used as the thermal insulating materials for steam heating pipelines, sound insulation materials in construction and protective layer of super glass wool with excellent functions of fire -resistant, corrosion resistant, heat isolation and sound absorbability. It can also be used as packing materials for the export equipment with the functions of waterproof, mildew proof, fire - existence.

  • Thickness of alu. foil: 7um, 18um, 25um, 50um(max)
  • Common Width: 101.6cm/121.9cm/152.4cm
  • Roll Length: 50-100m/as customers' requirements



Product ModelUPEAL-8732
MaterialAluminium Foil Fiberglass Fabric
WeaveSatin Weave
Yarn TexWarpEC9 33 2X2
WeftEC9 33 2X2
Total Weight480 g/m2
Thickness0.43 mm
Thickness Of Aluminium Foil7micron/18micron/25micron

Tensile

Strength

Warp6000 N/5cm
Weft4500 N/5cm
Width100cm
Service Temperature

Fibre Glass Cloth: 550℃

Adhersive: 300℃



Features:

  1. Heat Reflective
  2. Waterproof
  3. High Tensile Strength
  4. Anti Chemical Corrosion
  5. Low Moisture Absorption
  6. Electrical Insulation


Application


  • Hot Work Protection
  • Protection from Weather Elements
  • Gas and Liquid Impermeability Coverings
  • Covering for Removable Insulations
  • Safety Color Protection Systems
  • Fabricated Curtains/Blankets
  • Automotive Engine Heat Containment
  • Vertical Spark Protection
  • Construction
  • Chemical Processing
  • Petroleum Refineries
  • Automotive Industry
  • Maritime

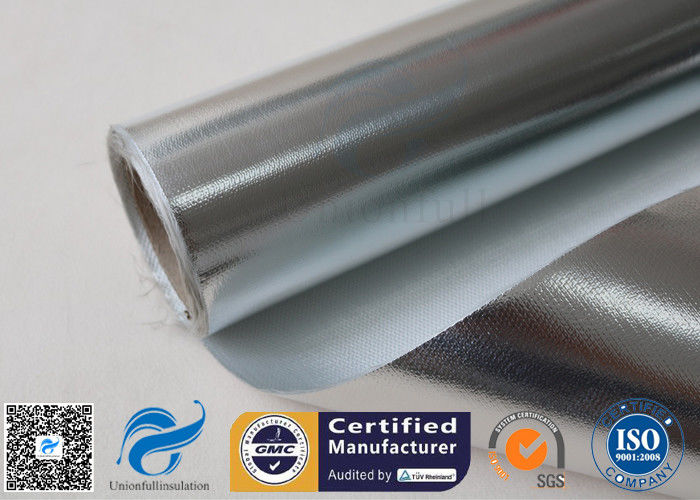

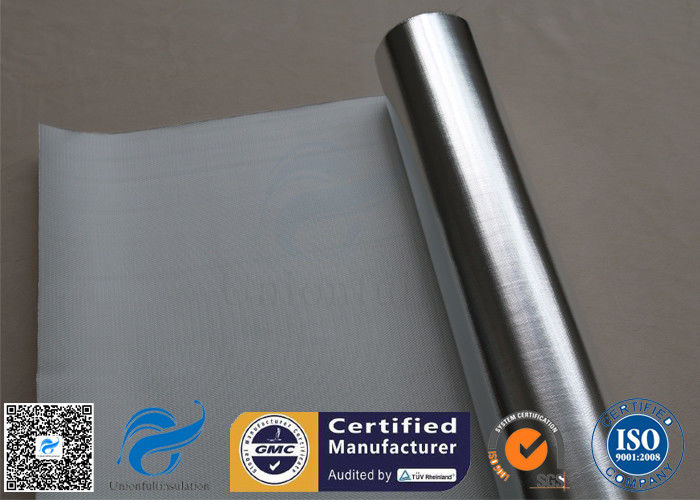

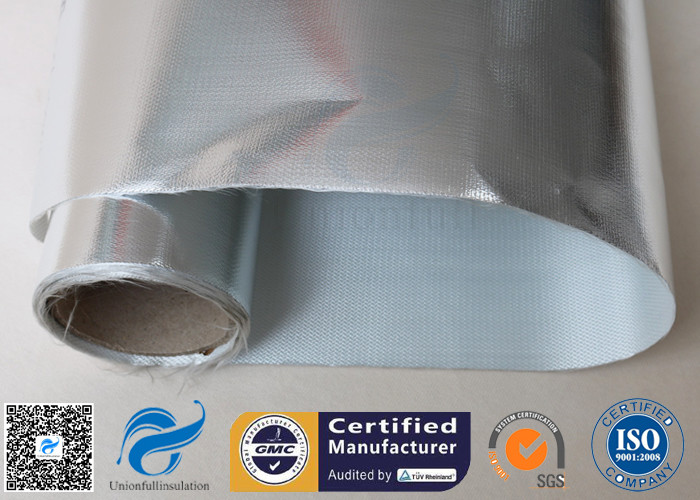

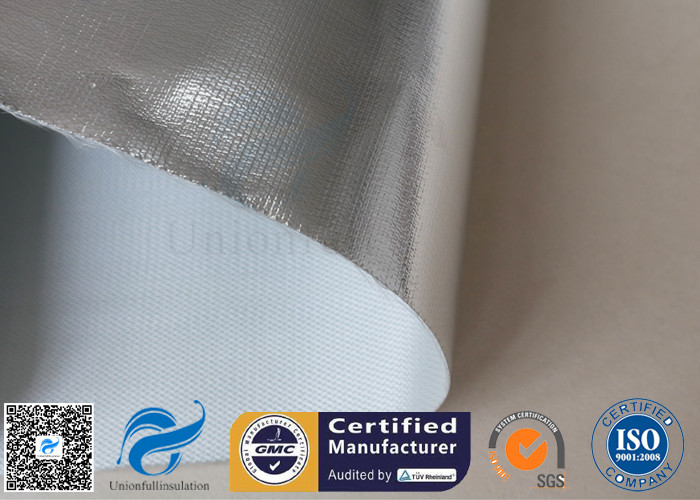

Picture:
0.43mm Reflective Aluminium Foil Fabric Fibreglass 3732 480g/M20.43mm Reflective Aluminium Foil Fabric Fibreglass 3732 480g/M2
