Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008, SGS;TUV |
Model Number: | UPSE-8732D80 |
Minimum Order Quantity: | 500 Meters |
Price: | $2.85-3.40/ Square Meter |
Packaging Details: | 50 meters per roll with poly bag |
Delivery Time: | 15 Working Days After Receiving Payment |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 50000 square meters per day |
Base Cloth: | 3732 Fiberglass Fabric | Coating: | Silicone, 80gsm Per Side |
---|---|---|---|
Total Thickness: | 0.50mm | Weight: | 430g/m2+80g/m2+80g/m2(coating) |
Width: | 155cm | Feature: | Thermal Insulation, High Strength, Electric Insulation |
Weave: | Satin Weave | Keyword: | Silicone Coated Fiber Glass Fabric |
High Light: | silicone coated fiberglass cloth,silicone coated glass fabric |

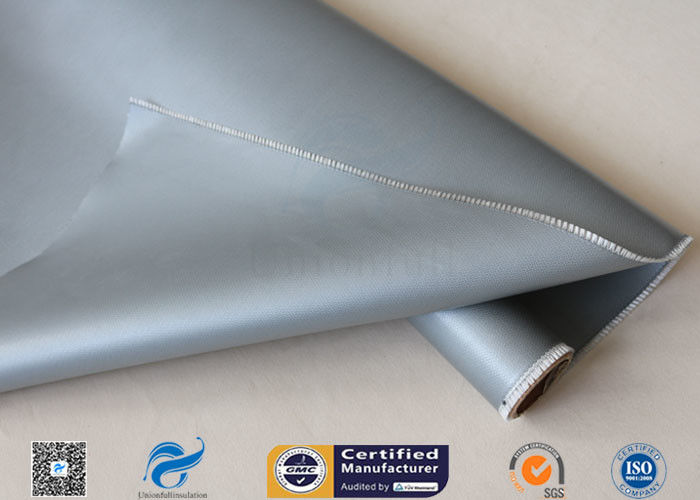

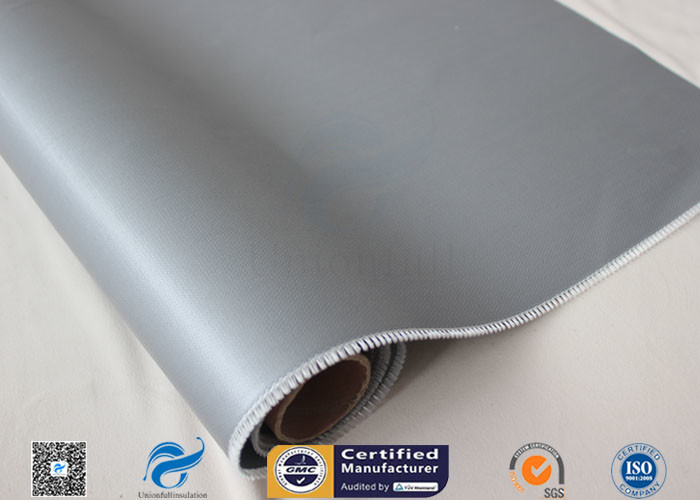

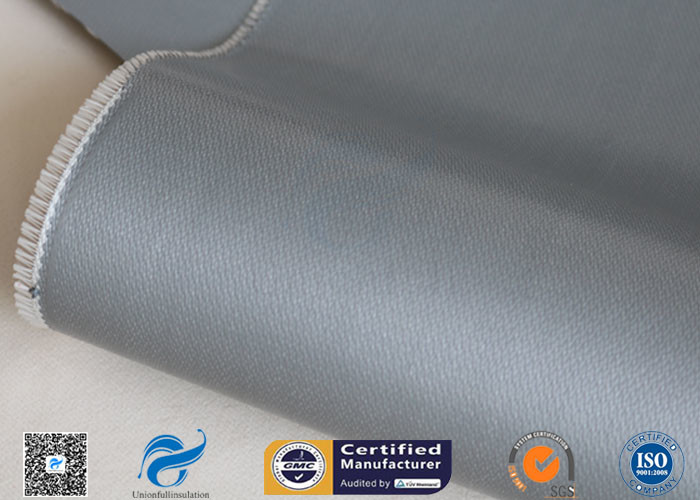

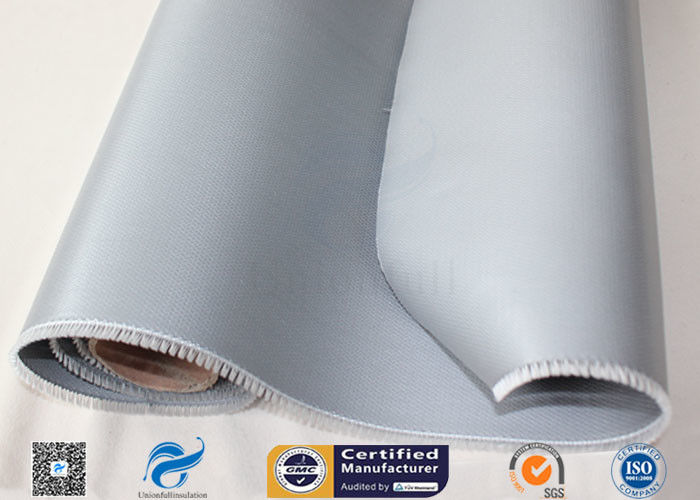

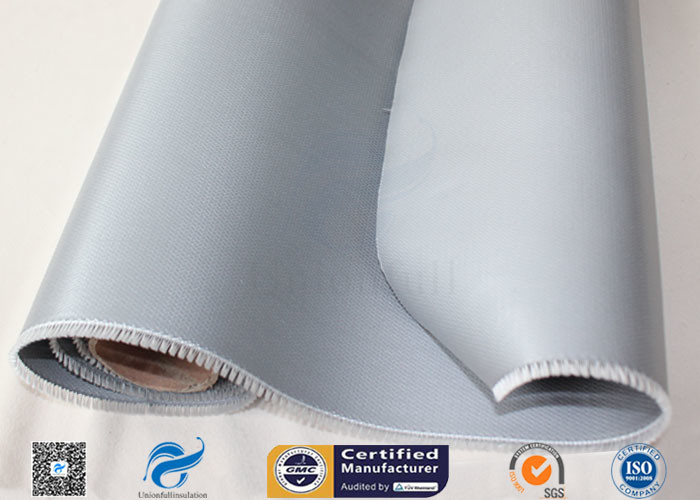

3732 Silicone Rubber Coated Fiberglass Fabric For Fire Blanket
Silicone coated fiberglass fabric is made from basic glass fiber cloth and then coated with 80g/m2 grey silicone coating on two sides. The basic fiber glass fabric can withstand high temperature below 550℃. And the rubber coating can stand temperature below 260 degree Celsius.
Silicone coated fiberglass fabric is a very flexible, tear resistant and fireproof fabric. It is made from e-glass woven fiber glass fabric, with characteristic such as stability, durability and high tensile strength. Base on silicone coating's properties, this coated fiber glass cloth are always used for fire blanket, fabric expansion joints or fabric connector, jacketed vessel/strainer/pump/pipeline thermal insulation covers and fire fighting equipments application.
Yarn type of this silicone coated fabric is e-glass G37 1/0 0.7Z fiberglass yarn.
Total weight is 510g/m2. 430g/m2+40g/m2 coating on both sides.
100cm, 127cm, 155cm is very common and convenient width we produce. (more economical price and less lead time)
Style | Weave | Thread Count | Thickness | Weight | Width |
3732 | Satin | 20 Ends/CM 11 Ends/CM | 0.4mm | 430g/m2 | 1.55m |
Item | Silicone Coated Fiberglass Fabric |
Material | E-glass Fiber Glass |
Weave | Satin Weave |
Warp Density | 20 Ends/CM |
Weft Density | 11 Ends/CM |
Mass Per Unit | 590g/m2(430+80+80) |
Thickness | 0.5mm |
Width | 155cm |
Working Temperature | Silicone Coating below 260℃ |
Properties:
Application:
Picture:
