Fiberglass Material Gate Valve Exhaust Blanket For Gray Insulation Jackets

China Fiberglass Material Gate Valve Exhaust Blanket For Gray Insulation Jackets supplier
Fiberglass Material Gate Valve Exhaust Blanket For Gray Insulation Jackets supplier Fiberglass Material Gate Valve Exhaust Blanket For Gray Insulation Jackets supplier Fiberglass Material Gate Valve Exhaust Blanket For Gray Insulation Jackets supplier Fiberglass Material Gate Valve Exhaust Blanket For Gray Insulation Jackets supplier

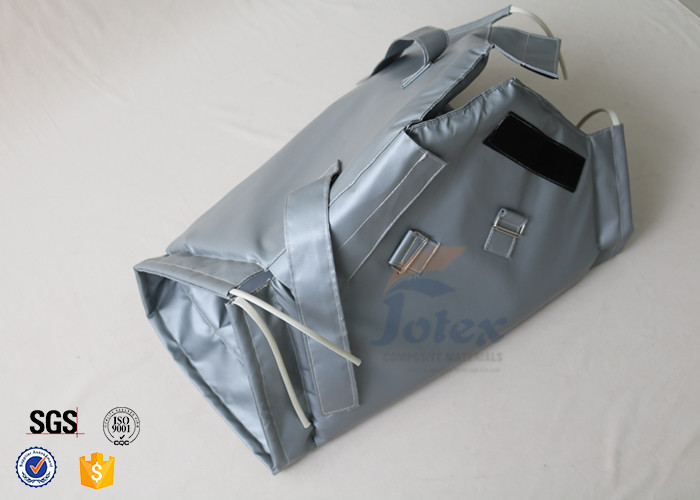

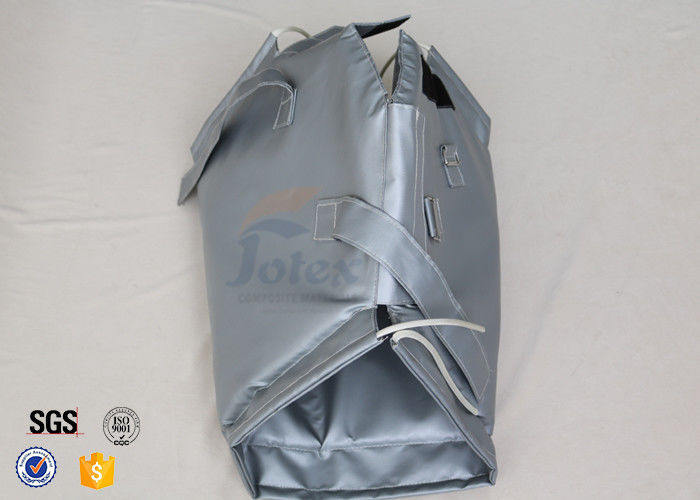

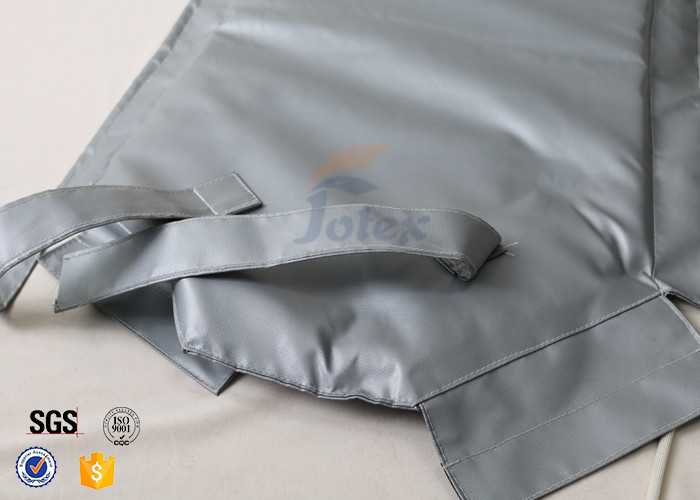

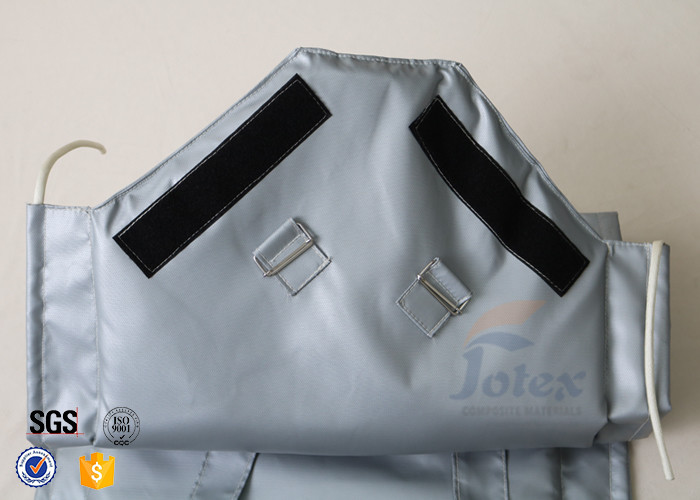

Large Image :  Fiberglass Material Gate Valve Exhaust Blanket For Gray Insulation Jackets

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: JT8430TIJ-30-DN80

Payment & Shipping Terms:

Minimum Order Quantity: 50 pieces
Price: $25--$45 one piece
Packaging Details: 1 piece per poly bag, 10pcs per woven bag
Delivery Time: 10--15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 300000 Square Meters Per Day
Contact Now
Detailed Product Description
Application: Gate Valve DN80, 3 Inches Materials: Fiberglass Fabric+Fiberglass Needle Mat
Open With: Fire Retardant Velcro, Metal Buckles Weight: 4KG
Thickness: 30mm Temperature: Surface Below 260 ℃, Inside Below 800 ℃
Feature: Thermal Insulation, Heat Resistant, Oil Acid Resistance Keywords: Thermal Insulation Jacket, Valve Exhaust Blanket

Fiberglass Material Gate Valve Exhaust Blanket Thermal Insulation Jackets


Thermal insulation jacket(also called exhaust blanket) is designed to protect the valve, pipeline or pump from fire, heat and cold damage. Outside materials of this jacket are heat resistant fiberglass cloth with a silicone coating layer on one side. This fiberglass fabric is soft and eco-friendly. Inside wadding materials of this jacket are e-glass fiberglass needle mat. Covers made from these fiberglass material are easy to remove and repair. The most important feature of fiber glass material is fire resistant. The working temperature of fiberglass cloth is below 550℃, while coating is only 260℃. Inside wadding materials fiber glass needle mat can be used below 800℃.


The thermal insulation blankets are designed by engineers who knows well what to consider in fabricating the high-quality, suitable removable blankets for each valve. Our exhaust blankets (or valve covers) are designed and engineered to serve as the thermal insulation solution for any specification, style or variety of valves.


The drawing of pump, valve and other products you want to cover with jackets is necessary. Unionfull's engineers will design the jackets according to the drawings and produce samples to. If you have the higher requirement for the materials of the thermal insulation jackets, please contact us for more information. Unionfull will try best to provide you the solutations and project to save your cost.



Item Name Removable Thermal Insulation Jacket
Products Code JT8430TIJ-30-DN80
Fitting Gate Valve DN80
Weight About 4KG
Standard Thickness 20-30mm
Outside Materials Name Silicone Coated Fiberglass Fabric

Service

Temperature

Base Glass Fiber Cloth:≤550℃
Silicone Coating:≤260℃
Inside Materials Name Fiberglass Needle Mat
Temperature ≤800℃
Accessories Fire Retardant Velcro, Kevlar Thread, Metal Buckles


IR Test Exampls: When temperature in gate valve 3inch went up to 300℃, IR showed the surface temperature of this thermal insulation jacket is 32℃.

Features:


  1. Decrease 20%-40% loss of heat
  2. Thermal insulation, the surface temperature can be lowered below 40℃
  3. Customized service is acceptable
  4. Easy to install this blanket(velcro, metal buckles)
  5. Dimension, drawings and pictures are required
  6. Waterproof, easy to clean
  7. Oil and chemical resistant
  8. Multi-layer protection, more efficient thermal insulation



Fiberglass Material Gate Valve Exhaust Blanket For Gray Insulation Jackets







Materials Of Outside Layer:

Item Silicone Coated Fiberglass Fabric
Base Cloth 3732 Fiberglass Cloth, 430g/m2
Coating 75g/m2 on both sides
Type E-glass
Weave Type Satin Weave
Warp Density 20 Ends/CM
Filling Density 11 Ends/CM
Temperature

Coating: Below 260℃

Fabric: Below 550℃





Specifications Of Inside Materials:



Fiberglass Needle Mat

  • Type: E-glass
  • Density: 100kg/m³ to 200m³
  • Thickness: 3mm - 30mm
  • Width: 100cm to 240cm (39.4" to 94")
  • Thermal Conductivity: 0.0300 kcal/mhr°C
  • High Temperature Resistance: 800°C
