104 - 320 cm Width E Glass Powder Emulsion Fiberglass Chopped Strand Mat

China 104 - 320 cm Width E Glass Powder Emulsion Fiberglass Chopped Strand Mat supplier
104 - 320 cm Width E Glass Powder Emulsion Fiberglass Chopped Strand Mat supplier 104 - 320 cm Width E Glass Powder Emulsion Fiberglass Chopped Strand Mat supplier 104 - 320 cm Width E Glass Powder Emulsion Fiberglass Chopped Strand Mat supplier 104 - 320 cm Width E Glass Powder Emulsion Fiberglass Chopped Strand Mat supplier

Large Image :  104 - 320 cm Width E Glass Powder Emulsion Fiberglass Chopped Strand Mat

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: JT8100W-10-104

Payment & Shipping Terms:

Minimum Order Quantity: 3000KG
Price: $1.89-2.35/kg
Packaging Details: 35kg one roll in poly bags
Delivery Time: 15 Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30000kg per day
Contact Now
Detailed Product Description
Type: E-glass Weight: 100g/m2
Width: 104-320cm Moisture: <0.3%
Binder: Powder/Emulsion Keyword: Csm 100g, Chopped Strand Mat



CSM 100g E Glass Powder Emulsion Fiberglass Chopped Strand Mat





Fiberglass chopped strand mat(referred to as csm) is glass fiber filament cut into a 50mm length, randomly but equally distributed on the mesh belt. Then spread power or emulsion binder by heating after curing bonding into chopped strand mat.



Non-woven fiberglass chopped strand mat is easily wet out by resin, easy-processed, good wet strength retention, excellent laminate, transpartent clear color.



This CSM is widely used hand lay-up FRP like various sheets and panels, boat hulls, bath tubs, cooling towers, vehicles, automobile, chemical, electrical industries etc.



Performance Characteristic:

  • No spots and debris, smooth edges
  • Coating and defoaming application
  • Quick permeation, less strength loss.under moisture​ conditions
  • Easily wet-out, Easy to form, roll-out and air release
  • Low fuzz, even and equal thickness
  • Water resistant, anti chemical agents, anti-corrosion
  • High strength, suitable for filament winding or continuous laminating
  • Transparency color

Data Sheet Of CSM100:



Type CSM100
Fiber E-glass
Mass Per Unit Area

100gsm

Width 1040mm
Roll Weight 35kg/roll, customized
Capacity Of 20FT Container 10 Tons













Chopped strand mat is very economical and offers good strength. However, for greater strength
and a lower weight product biaxials and woven cloth fabrics are generally used.
All the chopped strand mats are compatible for use with
polyester resins and vinyl ester resin.



Useful Tips For CSM



The individual glass fibers that make up chopped strand mat is held together by an adhesive binder(powder/emulsion) that is designed to be wet out polyester and vinyl ester resins.



How Much Resin Do I Need?

Fiber glass chopped strand mat requires approximately 1.5 to 2 times of mat weight in resin for complete saturation (For example: 1LB mat needs 1.5 to 2 LBS of resin). And most resins is approximate 9.5 LBS per gallon.



Weight: 100g/m2, 300g/m2, 450g/m2, 600g/m2, 900g/m2

Width: 1040mm-3200mm, 1040mm is common

Common Roll Weight: 35kg



Item Fibers Type

Mass Per Unit

(g/m2)

Width

(mm)

Binder

Binder Content

(%)

Moisture

Content

(%)

CSM100 E-glass 100 1040-3200 Powder/Emulsion 2~6 <0.3
CSM150 E-glass 150 1040-3200 Powder/Emulsion 2~6 <0.3
CSM300 E-glass 300 1040-3200 Powder/Emulsion 2~6 <0.3
CSM450 E-glass 450 1040-3200 Powder/Emulsion 2~6 <0.3
CSM600 E-glass 600 1040-3200 Powder/Emulsion 2~6 <0.3

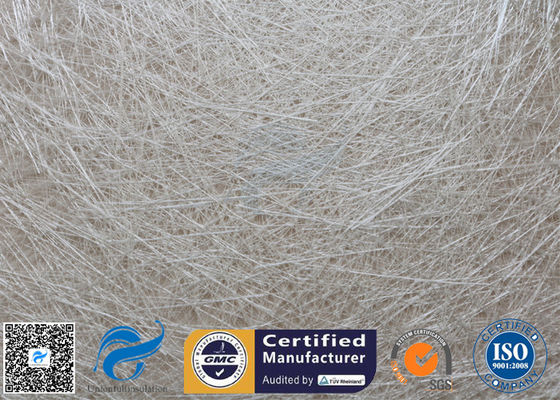

Picture:



104 - 320 cm Width E Glass Powder Emulsion Fiberglass Chopped Strand Mat104 - 320 cm Width E Glass Powder Emulsion Fiberglass Chopped Strand Mat
