3732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain

3732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain
3732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain 3732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain 3732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain 3732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain 3732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain 3732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain 3732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain 3732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain 3732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain 3732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain 3732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain 3732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: JT8430PUG-D40-100
Minimum Order Quantity: 500 Square Meters
Price: $1.8--$2.35/square meter
Packaging Details: One roll in poly bag
Delivery Time: 15 Working days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30000 square meters per day
Get Best Price Contact Now
Features: Heat/Welding Protection Base Cloth: 3732 430g Fiberglass Fabric
Total Weight: 510g/m2 Total Thickness: 0.5mm
Width: 100cm Yarn Type: E-glass
Weave Type: Satin Woven Key Words: Pu Fiberglass Fabric, Fiber Glass Cloth
Highlight:

silicone coated fiberglass cloth

,

silicone coated glass fabric

3732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain



UPPE-8732D30 is woven 3732 fiberglass cloth substrate which has been coated on both two sides with a specially compounded grey polyurethane coating. Weave type of base cloth is satin(cross twill) weave. When coated with 40g/m2 grey PU coating each side, totally weight per unit is 510gsm, and thickness will be 0.5mm.



PU coated fiberglass cloth has a special property: usually common coated fiberglass fabric like silicone/PVC/PTFE coated fabric should be used below 260℃. While PU coating is able to resisting instantaneous temperature up to 1100℃. So it is very suitable to used for welding sparks/splash shield products, also great for fire blanket/curtain. Coated fiberglass fabric also have some special properties like chemical corrosion resistance, electrical insulation, waterproof, high strength, not itchy when touch, different colors.





Item

3732 PU Coated Fiberglass Fabric
Total weight 510 g/m2
Thickness 0.5 mm
Color Grey(red, black, orange and yellow or others)
Temperature

Coating: -50℃ to +260℃

Instantaneously up to 1100℃
Coating Polyurethane Coating, 40g/m2 on both side
Common Width 100cm, 127cm, 150cm





Properties:



  1. 40g/m2 Polyurethane coating on both sides
  2. Pu coated fabric can withstand 1100℃ instantaneously
  3. Fireproof, resist high temperature below 260℃
  4. Chemical resistance
  5. Abrasion corrosion
  6. Waterproofing, washable



Application:

  • Welding Spatter Protection
  • Fire Curtain, Fire Doors
  • Expansion joints
  • Transmitter insulation covers
  • Flange insulation covers
  • Thermal Insulation Jacket/Exhaust Blanket
  • Fire/Smoke Control Systems









Data Sheet Of Base Cloth 3732:



Item No. 3732 Fiberglass Cloth
Weave Satin Weave(Cross Twill)
Yarn Tex Warp EC9 33 2X2 ECG 150 2/2
Weft EC9 33 2X2 ECG 150 2/2
Weight 430 g/m 12.7 oz/yd2
Thickness 0.43 mm 0.017 inch
Thread Count Warp 18 per cm 45 per inch
Weft 13 per cm 33 per inch

Tensile

Strength

 Warp 6000 N/5cm 666 lbs/inch
Weft 4500 N/5cm 500 lbs/inch
Working Temperature

Below 550℃

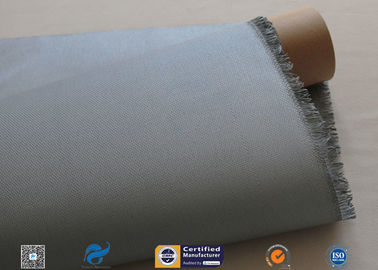

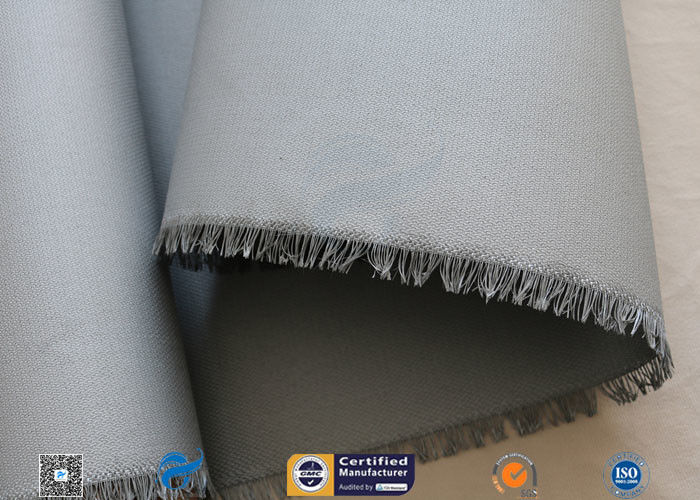

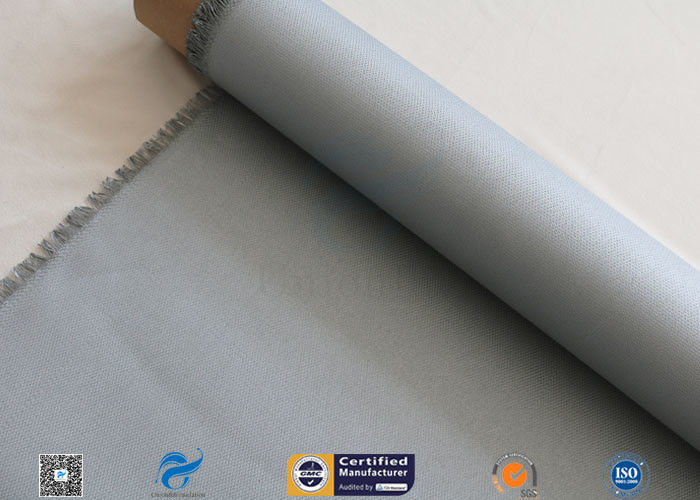

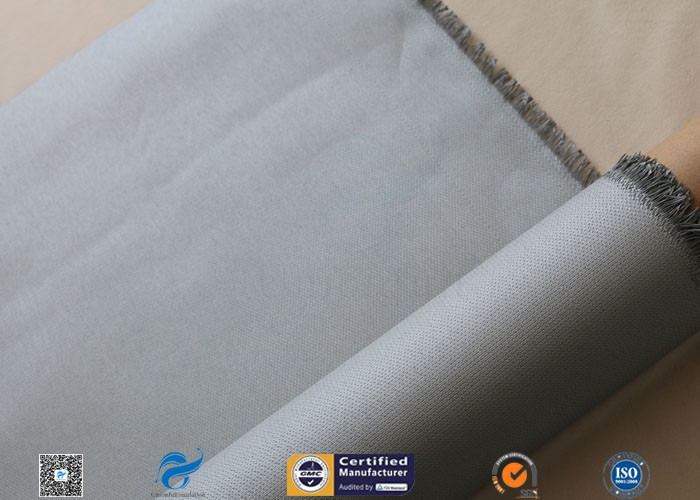

Picture:

3732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain 03732 15oz 0.5mm Grey PU Coated Fiberglass Cloth For Welding Curtain 1
