0.43mm Heat Reflective Fiberglass Fabric Aluminium Foil Laminated Fiber Glass Cloth

China 0.43mm Heat Reflective Fiberglass Fabric Aluminium Foil Laminated Fiber Glass Cloth supplier
0.43mm Heat Reflective Fiberglass Fabric Aluminium Foil Laminated Fiber Glass Cloth supplier 0.43mm Heat Reflective Fiberglass Fabric Aluminium Foil Laminated Fiber Glass Cloth supplier 0.43mm Heat Reflective Fiberglass Fabric Aluminium Foil Laminated Fiber Glass Cloth supplier 0.43mm Heat Reflective Fiberglass Fabric Aluminium Foil Laminated Fiber Glass Cloth supplier

Large Image :  0.43mm Heat Reflective Fiberglass Fabric Aluminium Foil Laminated Fiber Glass Cloth

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPEAL-8732

Payment & Shipping Terms:

Minimum Order Quantity: 1000 meters
Price: $2.32--$3.8/m2
Packaging Details: One roll with poly bag
Delivery Time: 15 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 Square Meters Per Day
Contact Now
Detailed Product Description
Base Cloth: 3732 430g Fiberglass Cloth Total Weight: 480g/m2, 14.16oz/yd2
Total Thickness: 0.43mm Width: 127cm
Color: One Side White, One Side Silver Feature: Heat Reflective, High Stength, Heat Resistant
Item Name: 0.43mm Heat Reflective Aluminium Foil Laminated Fiberglass Fabric Keyword: Fiber Glass Cloth, Aluminium Foil Fiberglass Fabric

0.43mm Heat Reflective Aluminium Foil Laminated Fiberglass Fabric



UPEAL-8732 is one of the aluminum foil glass fiber fabrics. It is made of 3732(430g/m2) woven fiberglass fabric and then laminated with a reflective aluminium foil. The total mass per unit area of  is UPEAL-8732 is 480g/m2. Totally thickness is 0.43mm.



3732 fiberglass fabric is the base fabric of this fabric, which performs well under temperatures ranging from -100° F to 1022° F(-50degree Celsius~260degree Celsius). And glue of aluminiul foil should be used below 572°F/300℃. However, it does need time for aluminium foil to absorb enough heat to melt, so in fact it can withstand higher temperature for short time.

  • Thickness of aluminium foil: 7um, 18um, 25um, 50um(max)
  • Adhesive for foil: Hydrogel/acrylate adhesive
  • Common Width: 100cm/127cm/150cm
  • Roll Length: Common: 50-100m

Specification:



Materials Glass Fibers
Coating Aluminium Foil
Total Weight 430g/m2+50g/m2
Total Thickness 0.43mm
Common Width 100cm, 127cm, 150cm
MOQ 1000 meters
Serve Temperature

Base Cloth: below 550℃

Aluminium Foil: below 300℃







Features:



  1. Waterproof
  2. Heat Reflective
  3. Fireproof
  4. High Tensile Strength
  5. Chemical Resistance
  6. Low Moisture Absorption
  7. Electrical Insulation



Picture:

0.43mm Heat Reflective Fiberglass Fabric Aluminium Foil Laminated Fiber Glass Cloth0.43mm Heat Reflective Fiberglass Fabric Aluminium Foil Laminated Fiber Glass Cloth

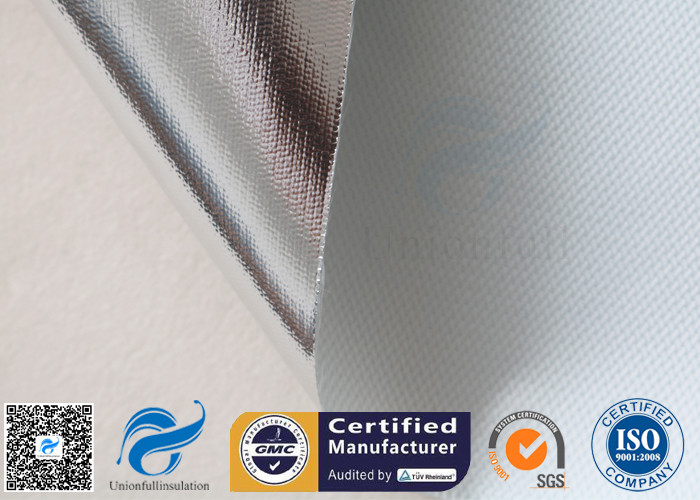

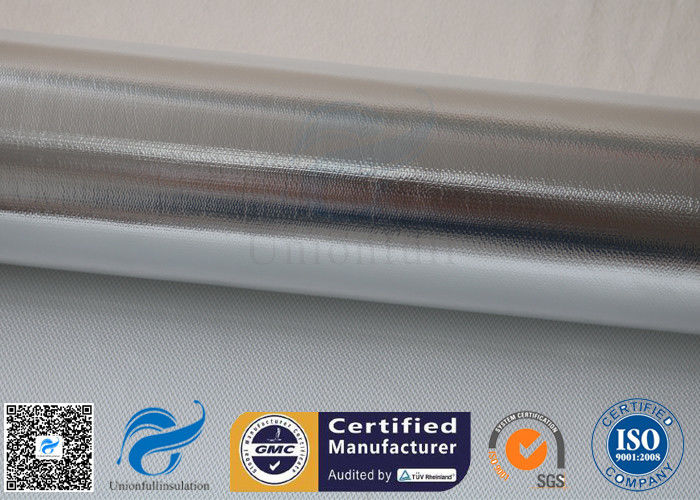

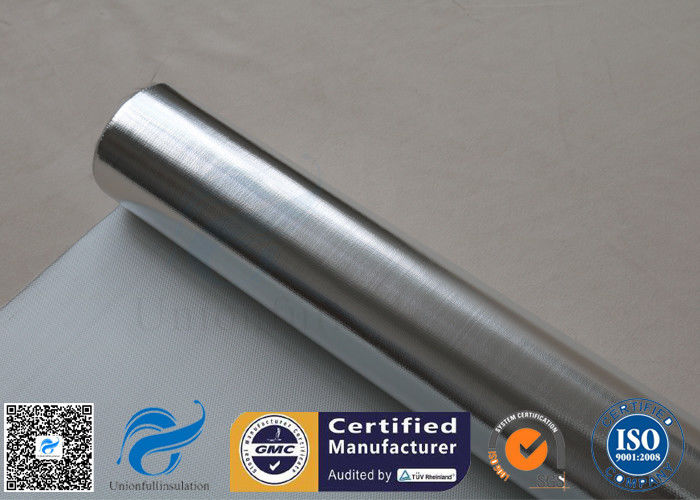

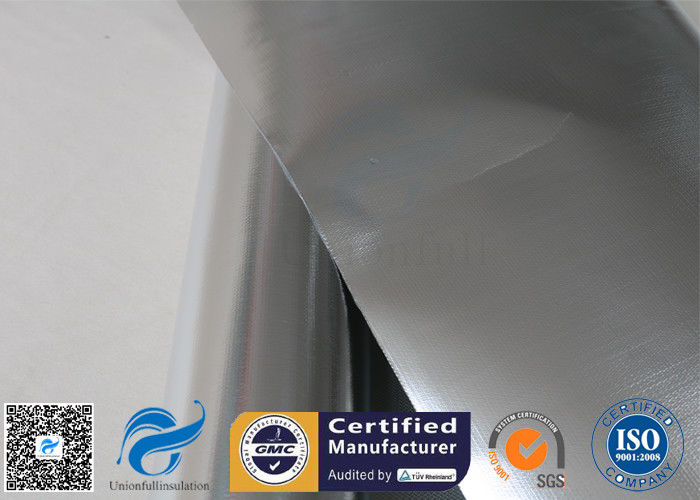

0.43mm Heat Reflective Aluminium Foil Laminated Fiberglass Fabric Images



Application Of These Materials:



The aluminium foil laminated fiberglass fabric provide excellent heat insulation: reflect 95% of radiant heat energy in addition to resisting other heat transfer from conduction, convection, and radiation. The side of aluminium foil forms an effective barrier against moisture, air currents and vapors. It is economical solutions in many field.



Main field of aluminum foil fabric application is fireproof production, such as heat resistant fire protective blankets/screens/curtains. And always used as thermal barrier, protection of the equipment, high temperature protective covers of furnaces, turbines, screens in order to protect them from molten metal splashes and thermal insulation.



Unionfull's aluminum foil composite series are mainly used as the thermal insulation materials of:



  • Steam heating pipelines; excellent functions of fire -resistant, anti-corrosion
  • Sound -proof materials in construction; sound absorbability
  • Protective layer of super glass wool; heat isolation



It can also be used as packing materials for the export equipment with the functions of damp proof, mildew proof, fire existence and anti corrosion.
