White PU Coated / Silicone Coated Fiberglass Fabric For Welding Spark Protection

China White PU Coated / Silicone Coated Fiberglass Fabric  For Welding Spark Protection supplier
White PU Coated / Silicone Coated Fiberglass Fabric  For Welding Spark Protection supplier White PU Coated / Silicone Coated Fiberglass Fabric  For Welding Spark Protection supplier White PU Coated / Silicone Coated Fiberglass Fabric  For Welding Spark Protection supplier White PU Coated / Silicone Coated Fiberglass Fabric  For Welding Spark Protection supplier

Large Image :  White PU Coated / Silicone Coated Fiberglass Fabric For Welding Spark Protection

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: JT8600PUW-D50-100

Payment & Shipping Terms:

Minimum Order Quantity: 500 Square Meters
Packaging Details: One roll in poly bag
Delivery Time: 15 Working days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Contact Now
Detailed Product Description
Base Cloth: 666 Fiberglass Fabric Total Weight: 600g/m2+50g/m2+50g/m2
Thickness: 0.7mm Width: 100cm, 127cm, 155cm
Yarn Type: E-glass Weave Type: Satin Woven



White PU Coated Fiberglass Cloth For Welding Spark Protection



Polyurethane(PU) coated fiberglass cloth woven by high quality E-glass filament yarn with a specially formulated polyurethane aluminum polymer on one side or two sides. It has very good abrasion resistance and good resistance to oils and solvents. It also has excellent fire resistance and good mechanical properties for make-up.



Base cloth of JT8600PUW-D50-100 is 666 fiberglass fabric. Mass per unit of this fabric is 600g/m2. PU coating is 50gsm each side. Common width of this fabric is 100cm, 127cm or 155cm.



PU coated fiberglass fabric is suitable for welding protection blanket/curtain. It can resist instantaneous temperature up to 1100 degree Celsius.



Data Sheet



Total weight 600 g/m2+50g/m2+50g/m2
Thickness 0.7 mm
Color White PU
Temperature -50℃ to +260℃
Coating Polyurethane Coated On Both Sides
Standard width 1000mm, 1270mm, 3200mm(MAX)



Properties



  • High Strength
  • Chemical corrosion resistant
  • Oil-proofing
  • Waterproofing (washable)
  • Chemical Resistance
  • Good performance on resisting high temperature and low temperature, -70°C--260°C

Application



  1. Welding blankes/curtains and pads
  2. Out layer of removable engine exhaust covers
  3. Fire resistant doors
  4. Turbine insulation
  5. Thermocouple insulation
  6. Thermal barrier insulation
  7. Oven insulation material

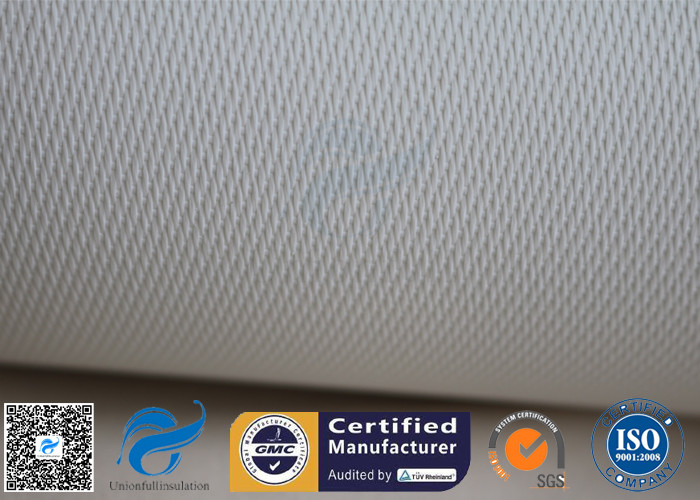

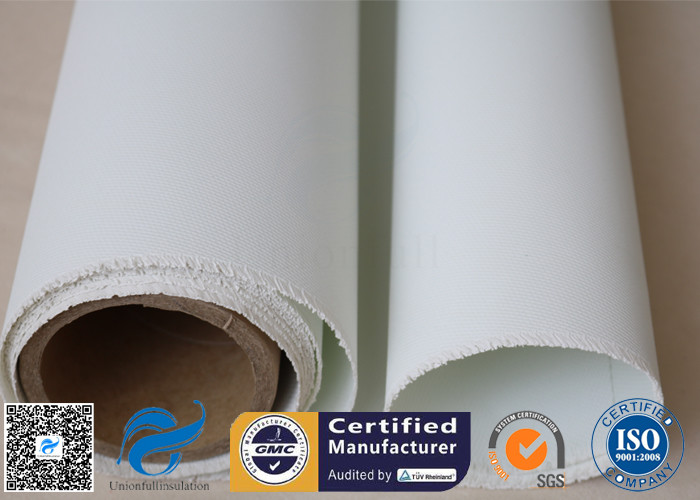

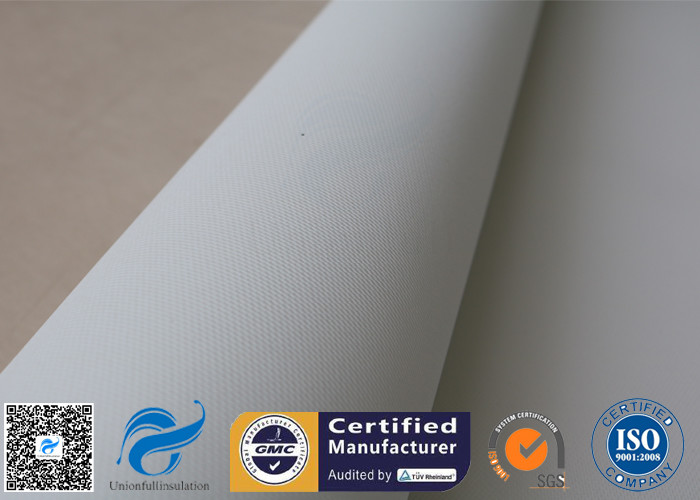

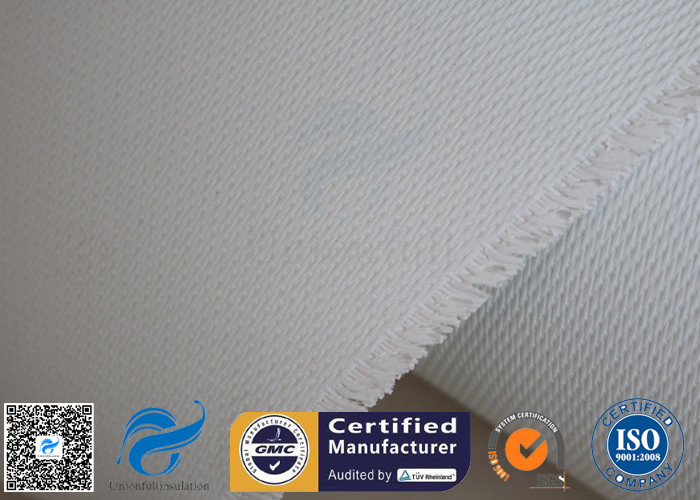

Picture:



White PU Coated / Silicone Coated Fiberglass Fabric  For Welding Spark ProtectionWhite PU Coated / Silicone Coated Fiberglass Fabric  For Welding Spark Protection



More information about fiberglass fabric:



666 fiberglass fabric is a satin weave fiberglass fabric. Mass per unit is 600gsm.



Dimensions


Fiber denier - Denier is a unit of measure for the linear mass density of fibers. It is defined as the mass in grams (g) per 9000 meters (m). Filament denier is defined as the mass per 9000 m of a single filament of fiber. Total denier is also defined as the mass per 9000 m, but applies to filament agglomerations such as yarn.



Fabric weight - Fabric weight is the weight per unit area of woven or non-woven fabric, textile or cloth.



Overall thickness - Overall thickness is measured with a gauge that contains two flat cylinders for a relevant sample area and a spring-loaded mechanism for a consistent, applied pressure.



Overall width / OD - Overall width or outer diameter (OD) is the cut width of a roll of fabric or textile material.



Overall length - Fabrics and textiles are sold in roll form at varying lengths, many in excess of one mile.
