0.5mm Rubber Silicone Coated Fiberglass Fabric Fire Blanket Fiber Glass Cloth

China 0.5mm Rubber Silicone Coated Fiberglass Fabric Fire Blanket Fiber Glass Cloth supplier
0.5mm Rubber Silicone Coated Fiberglass Fabric Fire Blanket Fiber Glass Cloth supplier 0.5mm Rubber Silicone Coated Fiberglass Fabric Fire Blanket Fiber Glass Cloth supplier 0.5mm Rubber Silicone Coated Fiberglass Fabric Fire Blanket Fiber Glass Cloth supplier 0.5mm Rubber Silicone Coated Fiberglass Fabric Fire Blanket Fiber Glass Cloth supplier

Large Image :  0.5mm Rubber Silicone Coated Fiberglass Fabric Fire Blanket Fiber Glass Cloth

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8732D160

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $2.85-3.45/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 10 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 square meters per day
Contact Now
Detailed Product Description
Base Cloth: 3732 Fiberglass Cloth Coating: Grey Silicone, 80/80
Total Weight: 590g/m2 Thickness: 0.5mm
Width: 100cm Weave: Satin Weave
MOQ: 500 Meters Feature: Heat, Chemical, Abrasion Resistance

0.5mm Silicone Rubber Coated Fiberglass Fabric Fire Blanket Fiber Glass Cloth



Silicone Coated Fiberglass Cloth is a fiberglass cloth coated with a specially compounded silicone rubber glue on one side or both sides. The special silicone rubber coating extends the life of the base fiberglass fabric and provides special features like superior water, oil and heat resistance. They perform excellent in electrical insulation, heat resistance and chemical corrosion resistance application. Rubber coated fabric is an great electrical insulator in harsh environments, has high resistance to mild alkali, non-oxidizing acids, most salts, mineral lubricating oil, air, moisture and sunlight.



This is 430gsm 3732 fiberglass base cloth and coated with 80gsm silicone coating on each side. Total weight of this coated fabric is 590g. Common width is 100cm, 127cm and 155cm.



Specification



Item Silicone Coated Fiberglass Fabric
Material E-glass Glass Fiber Yarn
Weave Satin Weave
Warp Density 20 Ends/CM
Weft Density 11 Ends/CM
Weight Per Unit Area 590GSM
Thickness 0.5mm
Width 100cm
Roll Length 50m/roll



Features



  • Fire Resistant
  • UV Resistant
  • Good Chemical Resistance
  • Excellent release features
  • High strength and tear resistance
  • Service temperature ranges from -50 to +250℃
  • High temperature insulation
  • Industrial insulation



Silicone coated fabrics offer high-temperature and heat resistance, along with the ability to shed welding splatter & sparks, molten steel & aluminum splash.



The typical applications of this silicone coated fabric are used as welding/fire curtains and blankets, protection covers for engine exhaust components and industrial equipment, steam and gas turbines.











More About 3732 Base Cloth


Item Fabric Count Yarn Thickness Weight Width
3732

19.6Ends/CM

11.5Ends/CM

G37 1/0 0.7Z

G37 1/0 0.7Z

0.4mm 430g/m2 0.9m-4.2m



3732 fiberglass fabric is a strong lightweight(430GSM) material. Its yarn count is G37 1/0 0.7Z. Width can be 90cm to 420cm. Thickness of 3732 fabric is only 0.4mm. It can be 0.45mm to 0.6mm after coating.


This coated 3732 fiberglass fabric is satin weave.


The 4HS(four harness satin) weave is more pliable than plain weave and it is easier to conform to curved surfaces typical in reinforced plastics. For this pattern there is a three-by-one interfacing. It is a weft yarn floats over three warp yarns and under one.

The 8HS(eight harness satin) is very similar weave to 4HS weave except that one weft yarn floats over seven warp yarns and under one. This is a very pliable weave and is used for forming over curved surfaces as well.

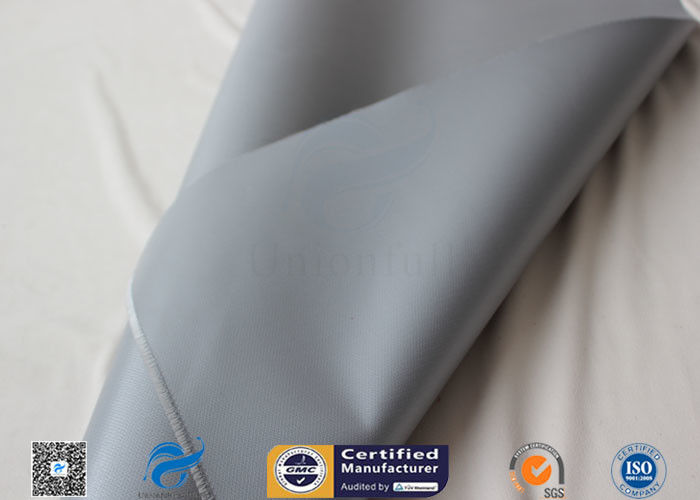

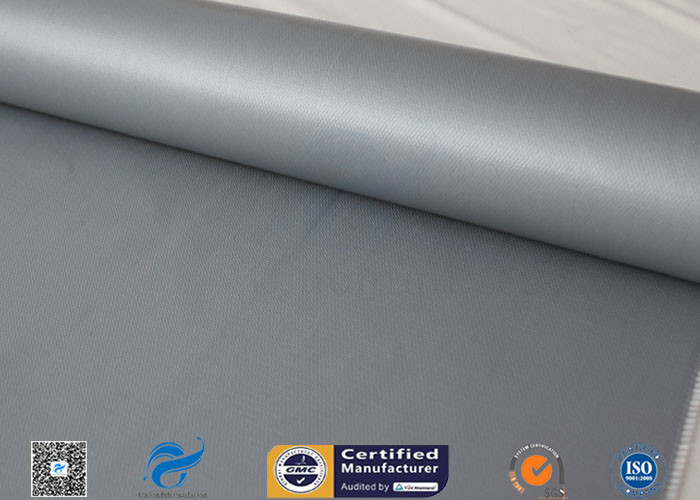

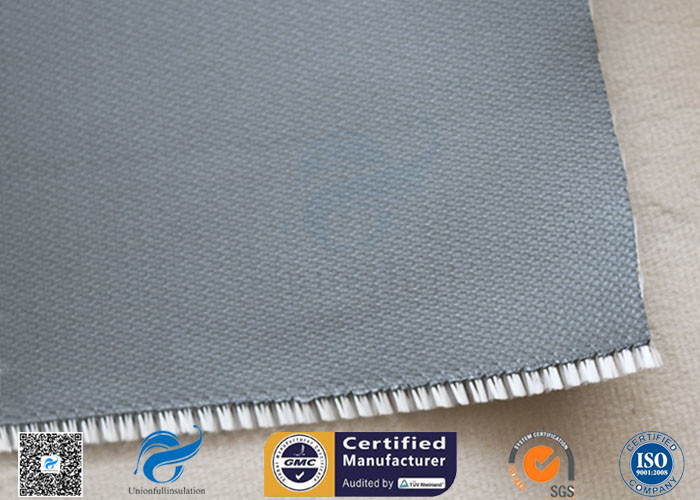

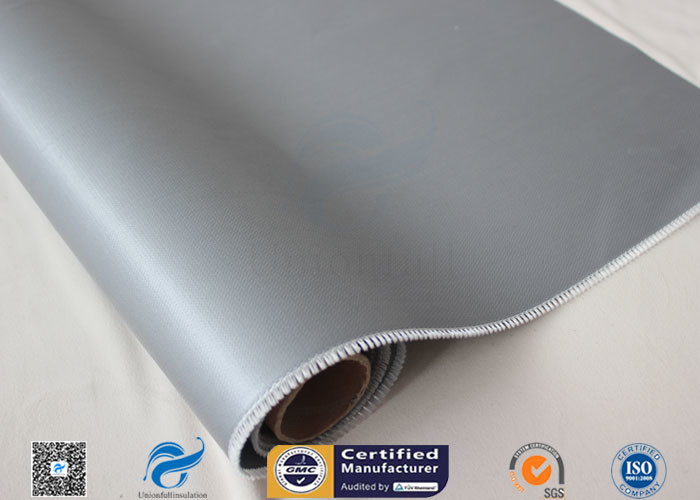

Picture:



0.5mm Rubber Silicone Coated Fiberglass Fabric Fire Blanket Fiber Glass Cloth0.5mm Rubber Silicone Coated Fiberglass Fabric Fire Blanket Fiber Glass Cloth
