Aluminium Foil Fiberglass / Fibreglass Fabric For Reflective Firefighter Suits

China Aluminium Foil Fiberglass / Fibreglass Fabric For Reflective Firefighter Suits supplier
Aluminium Foil Fiberglass / Fibreglass Fabric For Reflective Firefighter Suits supplier Aluminium Foil Fiberglass / Fibreglass Fabric For Reflective Firefighter Suits supplier Aluminium Foil Fiberglass / Fibreglass Fabric For Reflective Firefighter Suits supplier Aluminium Foil Fiberglass / Fibreglass Fabric For Reflective Firefighter Suits supplier

Large Image :  Aluminium Foil Fiberglass / Fibreglass Fabric For Reflective Firefighter Suits

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPEAL-8732

Payment & Shipping Terms:

Minimum Order Quantity: 500 meters
Price: $2.3--$3.85/m2
Packaging Details: One roll with poly bag
Delivery Time: 15 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 Square Meters Per Day
Contact Now
Detailed Product Description
Base Cloth: 3732 Fiberglass Cloth Total Weight: 480g/m2
Total Thickness: 0.43mm Width: 100cm, 127cm, 155cm
Color: One Side White, One Side Silver Feature: Fireproof, Heat Reflective, High Stength
Item Name: Aluminium Foil Fiberglass Fabric For Reflective Fire Fighter Suits Keyword: Fiber Glass Cloth, Aluminium Foil Fiberglass Fabric

Aluminium Foil Fiberglass Fabric For Reflective Fire Fighter Suits



UPEAL-8732 is one of Unionfull's aluminum foil composite series. It consists of a woven fiberglass fabric 3732(430g/m2) that has been coated with a layer of aluminium foil. The total mass per unit area is 480g/m2. Thickness is 0.43mm.



These base fabric 3732 performs well under temperatures ranging from -100° F to 1022° F. And the glue of aluminiul foil should be used below 1220°F/660℃. However, it does need time for aluminium foil to absorb enough heat to melt, so in fact it can withstand short exposure to higher temperature.





Aluminium Foil Fiberglass / Fibreglass Fabric For Reflective Firefighter Suits



































  • Thickness of alu. foil: 7um, 18um, 25um, 50um(max)
  • Adhesive Type: Hydrogel/acrylate adhesive
  • Common Width: 101.6cm/121.9cm/152.4cm
  • Roll Length: 50-100m/as customers' requirements



Product Model UPEAL-8732
Material Aluminium Foil Fiberglass Fabric
Weave Satin Weave
Yarn Tex Warp EC9 33 2X2
Weft EC9 33 2X2
Total Weight 480 g/m2
Thickness 0.43 mm
Thickness Of Aluminium Foil 7micron/18micron/25micron

Tensile

Strength

Warp 6000 N/5cm
Weft 4500 N/5cm
Width 100cm
Service Temperature

Fibre Glass Cloth: 550℃

While mucilage: 300℃





Features:

  1. Thermal insulation & heat protection
  2. Waterproof
  3. High Tensile Strength
  4. Chemical Corrosion Resistance
  5. Low Moisture Absorption
  6. Electrical Insulation

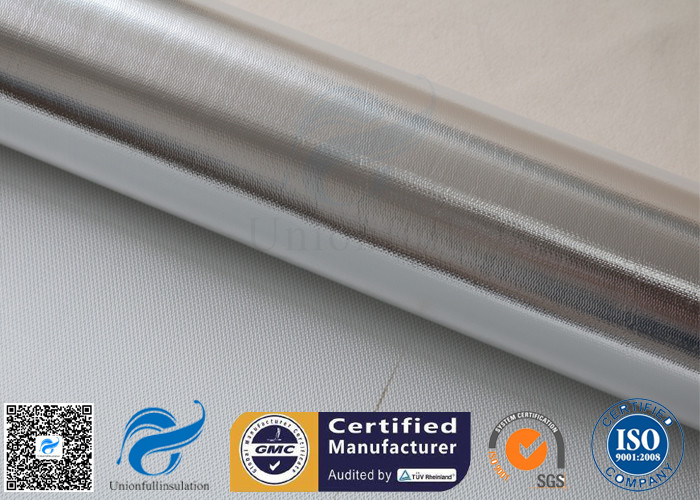

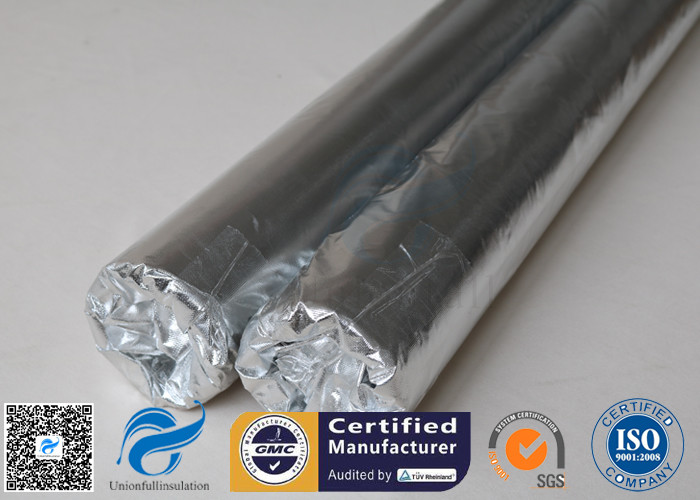

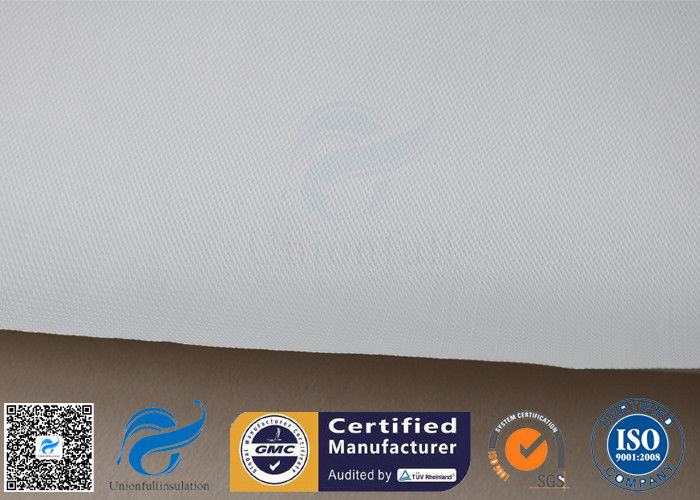

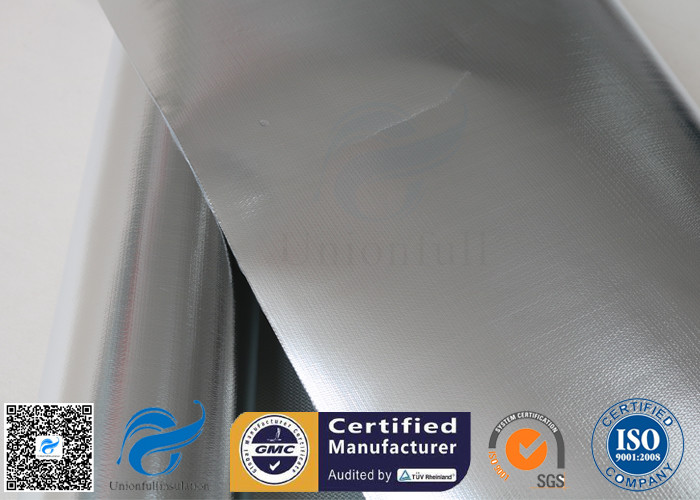

Picture:

Aluminium Foil Fiberglass / Fibreglass Fabric For Reflective Firefighter SuitsAluminium Foil Fiberglass / Fibreglass Fabric For Reflective Firefighter Suits









Aluminium Foil Fiberglass Fabric For Reflective Fire Fighter Suits Images



Application Of These Materials:



The materials provide excellent heat insulation: reflect up to 97% of radiant energy in addition to resisting other types of heat transfer from conduction, convection, and radiation. The side of metalized foil forms an effective barrier against moisture, air currents and vapors. It is economical solutions in many field.



One of the field of aluminum foil coated fiber glass fabric application is fireproof production, such as welding blanket, fire protective blanket/screen/curtain. And used as thermal barrier for protection of the equipment, high temperature protective covers of furnaces, turbines, screens in order to protect them from molten metal splashes/sparks/thermal insulation.



  • Packing materials for moisture barrier, fire retardant and anti-chemical.
  • Materials for many kinds of heat resistant products such as fireproof packet, fireproof suit, fireproof bag, and fireproof gloves etc.
  • Thermal insulation cover on heat supply pipes
  • Packing chemical equipments such as oil and steam transportation pipeline
