Red Silicone Rubber Coated Fiberglass Engineer Acoustic Insulation Fabric Material

China Red Silicone Rubber Coated Fiberglass Engineer Acoustic Insulation Fabric Material supplier
Red Silicone Rubber Coated Fiberglass Engineer Acoustic Insulation Fabric Material supplier Red Silicone Rubber Coated Fiberglass Engineer Acoustic Insulation Fabric Material supplier Red Silicone Rubber Coated Fiberglass Engineer Acoustic Insulation Fabric Material supplier Red Silicone Rubber Coated Fiberglass Engineer Acoustic Insulation Fabric Material supplier

Large Image :  Red Silicone Rubber Coated Fiberglass Engineer Acoustic Insulation Fabric Material

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 200 METERS
Price: $2.15--2.85/M2
Packaging Details: 100 yards per roll with poly bag
Delivery Time: 20 Working Days
Payment Terms: T/T, L/C, Western Union, O/A
Supply Ability: 30000 square meters per day
Contact Now
Detailed Product Description
Application: Filter Cloth Name: Silicone Coated Glass Fiber Cloth
Feature: Easy To Cut And Allergen Resistant Inner Packing: Plastic Bag
Outer Packing: Carton Or Pallet Service Temperature: 550℃

Red Silicone Rubber Coated Fiberglass Engineer Acoustic Insulation Fabric Material



The products are made of fine fiberglass with excellent capacity of high temperature and corrosion resistance, coated with silicone rubber, which is a brand new product with good performance and multiple applications.



Item No

Thickness

Breaking strength (n/50mm)

Bursting strength Mpa

Weight

Standard width

UPSE-8025

0.25mm

1800/1500

2.1mpa

440 g/sqm

1250mm

UPSE-8035

0.35mm

2000/1600

2.2 mpa

520 g/sqm

1500mm

UPSE-8040

0.40mm

2400/2200

2.4 mpa

620 g/sqm

1500mm

UPSE-8060

0.60mm

2600/2400

2.5 mpa

850 g/sqm

1500mm

UPSE-8080

0.80mm

3000/2800

2.6 mpa

1120 g/sqm

1500mm

UPSE-8100

1.00mm

3700/3300

2.3 mpa

1400 g/sqm

1500mm

UPSE-8150

1.50mm

4200/3800

2.2 mpa

2100 g/sqm

1500mm

UPSE-8200

2.00mm

4200/3800

2.2 mpa

2800g/sqm

1500mm



Silicone fiberglass fabric Features:



1. Temperature resistance, it can continuously work under -70℃to 230℃



2. Weatherability: resistance to ozone, oxygen, sunlight and aging, long using life up to 10 years.



3. Good electric insulator, dielectric constant 3~3.2, break down voltage between 20~50KV/mm,



Silicone fiberglass fabric applications:



1. Electric insulation: Silicon coated fiberglass fabric features high grade of electric insulation and bear a load of high voltage. It fits for making products like insulation cloth and sleeves etc.



2. Non-metallic silicone fiberglass fabric could be used as compensator: used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction. This membrane material specially fit for use in industries of petroleum, chemical engineering, cement, iron and steel and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.



3. Anti-corrosion sector: silicone fiberglass fabric is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength. It proves to be an ideal anti-corrosion material.



4. Others: Apart from above application, silicone fiberglass fabric can also be used as sealing material, temperature resistant and anti-corrosion conveyer belt and packaging material.

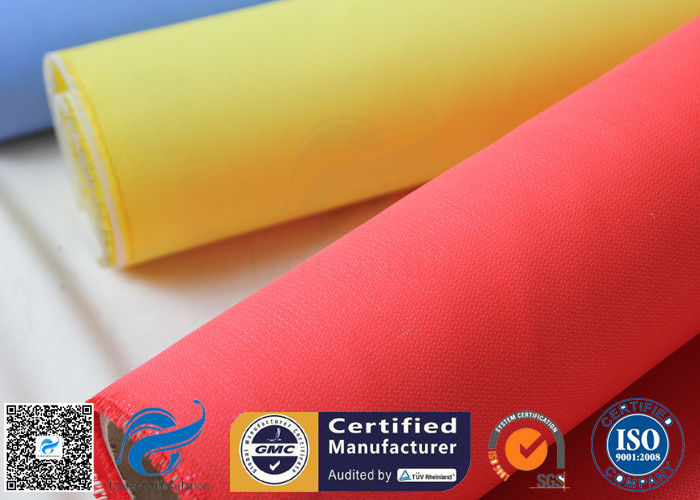

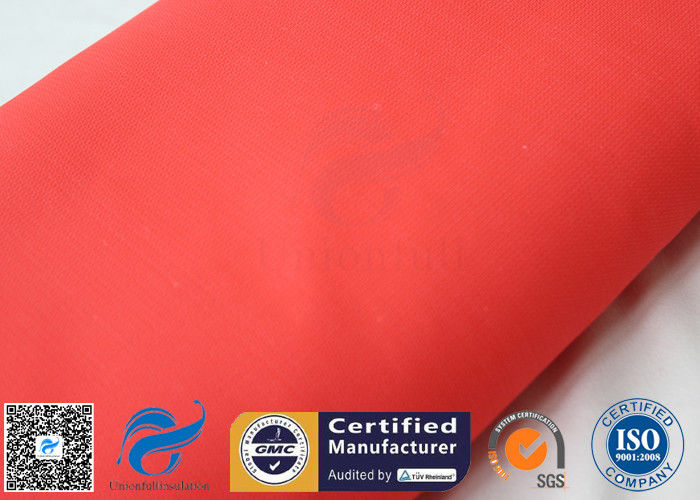

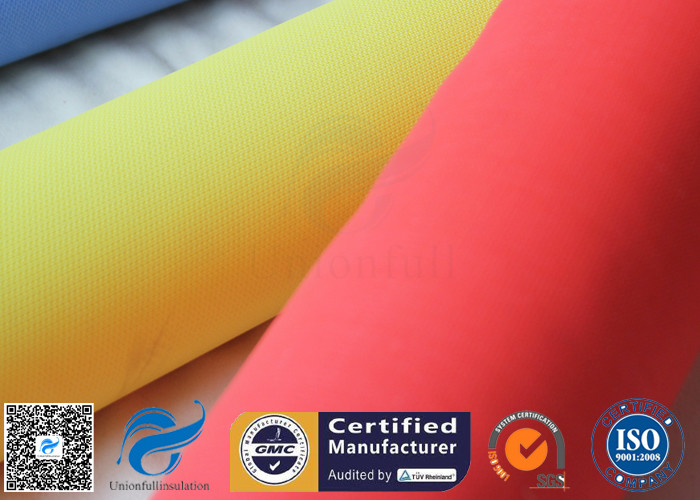

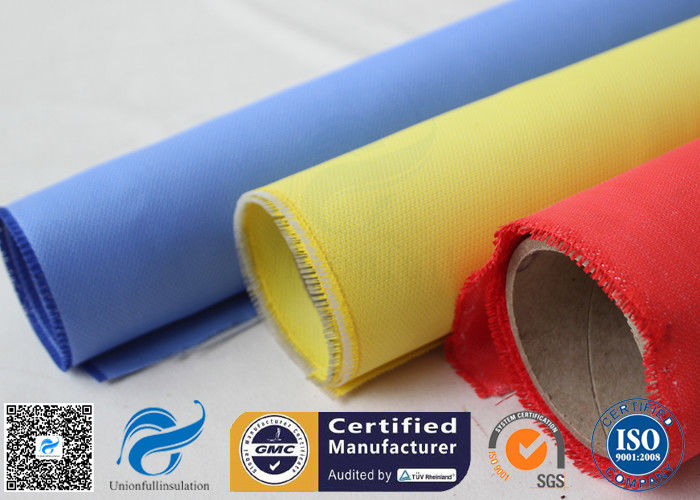

Picture:



Red Silicone Rubber Coated Fiberglass Engineer Acoustic Insulation Fabric MaterialRed Silicone Rubber Coated Fiberglass Engineer Acoustic Insulation Fabric Material
