Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008, SGS;TUV |
Model Number: | UPSE-8732 |
Minimum Order Quantity: | 200 METERS |
Price: | $2.85--3.5/M2 |
Packaging Details: | 50 yards per roll with poly bag |
Delivery Time: | 25 Working Days |
Payment Terms: | T/T, L/C, Western Union, O/A |
Supply Ability: | 30000 square meters per day |
Applications: | Fire Doors / Fire Curtains | Properties: | High Dielectric Strength |
---|---|---|---|
Fabric Style: | Satin Weave | Measurement: | Conform To ASTM Standard |
Yarn Type: | E-glass Fiber Yarn | Coating: | 1 Side Or 2 Sides |
High Light: | silicone coated glass cloth,silicone coated fiberglass cloth |
Specifications:
- Made of high quality E glass yarn
- Conform to ASTM standard
- Width:100 to 200cm
- Color:green,blue,white,yellow,black
2 sides coated fiberglass fabric for industries
Silicone coated fiberglass fabric is a fiberglass cloth, which possesses the properties of temperature resistance, anti-corrosion, high strength and is coated with organic silicone rubber.
Product code |
UPSE-8732 |
UPSE-8732 |
UPSE-8784 |
UPSE-8788 |
|
High temperature resistant(°C) |
≤280 |
≤280 |
≤280 |
≤280 |
|
Low temperature resistant(°C) |
≥-40 |
≥-40 |
≥-40 |
≥-40 |
|
Tensile intensity (N/50mm) |
Warp |
≥1750 |
≥1750 |
≥2500 |
≥3500 |
Weft |
≥1280 |
≥1280 |
≥2100 |
≥3000 |
|
Inflating burst intensity(Mpa) |
≥2.0 |
≥2.0 |
≥2.2 |
≥2.6 |
|
Peeling intensity(N/m) |
≥450 |
≥450 |
≥520 |
≥600 |
|
Insulation (kv/mm) |
16 |
16 |
18 |
18 |
|
Weight (g/m*m) |
550-650 |
550-650 |
750-800 |
1500-1800 |
|
Width(mm) |
1000±20 |
1000±20 |
1000±20 |
1000±20 |
|
Thickness(mm) |
0.3-0.4 |
0.3-0.4 |
0.5-0.55 |
1.0-1.1 |
|
color |
Silver-gray, gray, red |
lucency |
Silver-gray, gray, red |
Black, gray, red |
Properties:
1. Service Temperature -70°C~300°C
2. Ozone, oxide, light and weathering aging resistance, excellent weather ability used in outdoors and ages may be reached to 10 years.
3. High insulation: dielectric constant from 3 to 3.2, breakdown voltage from 20 to 50KV/mm
4. Physical and chemical properties.
Main applications:
- Hullboard.
- Welding blankets
- Serve as a welding defender, heat protection quilt, foundry splash protection.
- Conveyor belt and expansion joints.

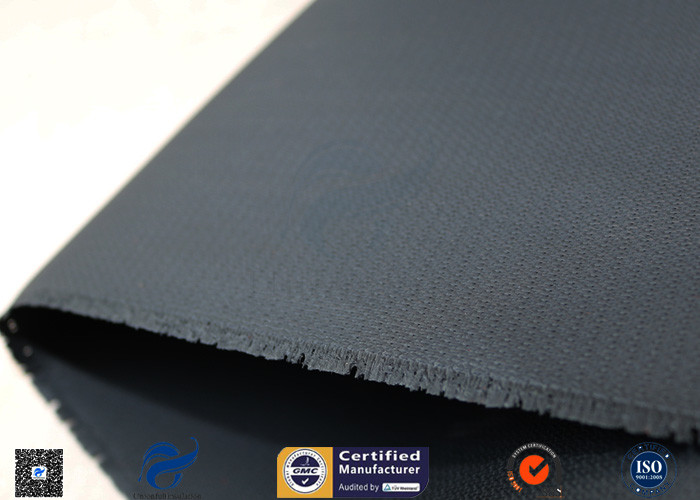

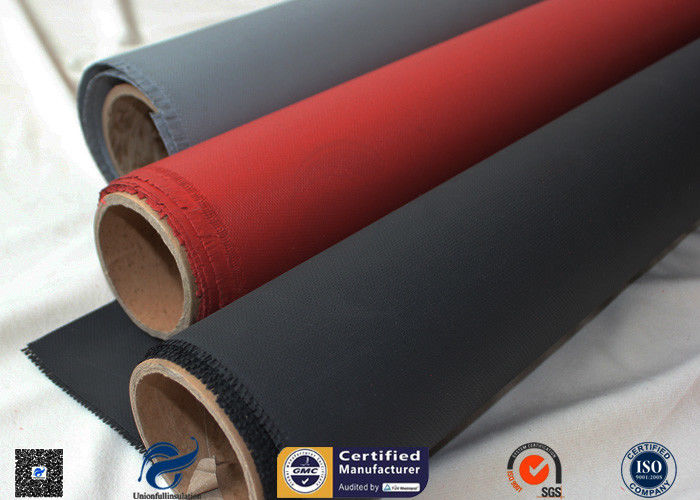

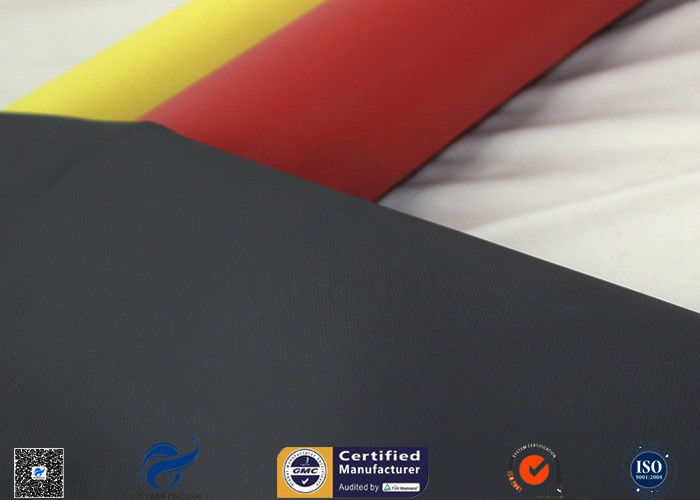

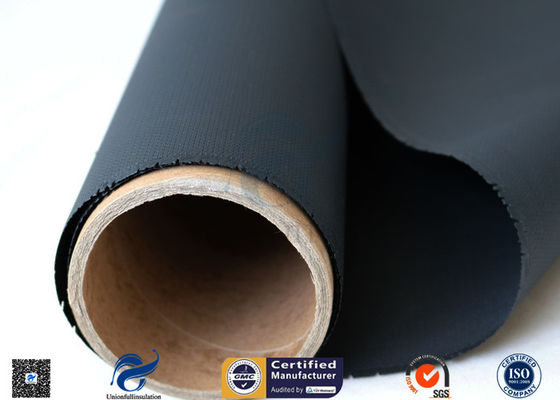

Picture:
