40mm Easy Disassemble Insulation Cover Heating Device Removable Thermal Jacket

China 40mm Easy Disassemble Insulation Cover Heating Device Removable Thermal Jacket supplier
40mm Easy Disassemble Insulation Cover Heating Device Removable Thermal Jacket supplier 40mm Easy Disassemble Insulation Cover Heating Device Removable Thermal Jacket supplier 40mm Easy Disassemble Insulation Cover Heating Device Removable Thermal Jacket supplier 40mm Easy Disassemble Insulation Cover Heating Device Removable Thermal Jacket supplier

Large Image :  40mm Easy Disassemble Insulation Cover Heating Device Removable Thermal Jacket

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001-2008; SGS;TUV
Model Number: UPIJG-T-40

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: $20--$45 one piece
Packaging Details: 10pcs in woven bag
Delivery Time: 2 weeks after receiving payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2800 PCS Per Day
Contact Now
Detailed Product Description
Out Layer: Silicone Coated Fiberglass Fabric Insulation: E Glass Needle Mat
Energy Saving Rate: 25~40% Thickness: 25~40mm
Working Temperature: 300℃ Continuously Thread: Kevlar

40mm Easy Disassemble Insulation Cover Heating Device Removable Thermal Jacket



Industry heating device need to use insulation jacket to avoid overheating to endure a safe touch, meantime keep heat, but the traditional thermal insulatin jacket is hard to be install due to it's material. Nowadays, Unionfull designed a removable Insulation Jacket which consist of fiberlass fabric and fiberglass needle mat, it comes true a convenient inspection and maintenance while save energy and heating.



According to the specific shape of the pipe, valve, pump or equipment, by careful designing, mapping, removable insulation jacket are produced by special processes which put up a high adapatable. It can be used at different temperatures, different shapes of insulation hot equipment. Removable insulation jacket is especially practical for pipeline equipment that needs to be disassembled, maintained and cleaned frequently.



Normally, removable insulation jacket consist of 3 to 6 layers, materials of insulation cover are 260℃ silicone coated gfiberglass fabric and 800℃ fiberglass needled mat interior. With these fiberglass materials, flexible insulation cover has performance like heat resistant, electrical insulation, high intensity, flexible and tough, oil&water resistance and anti corrosion.



Properties:

High temperature resistant,

High density but flexible, convenient for bending

Improves Equipment Process

Reduce unnecessary emissions

Waterproof and oil proof

Easy to install and disassemble, everyone can handle it

Save energy 20%-45%

High adaptable, suitable for different shapes of valve, pipe, pump and heating equipment

Asbestos free, Eco-friendly and harmless to human body



Data sheet Of Fabric:

Material E-glass fiber cloth
Coating

Silicone rubber 2 sides

Weight 590g/m2 ± 10g/m2
Thickness 0.43mm ± 0.02mm
Color Gray
Temperature resistant -70 ~ +260℃
Yarn type ECG37 1/0



Data sheet Of Insulation Jacket:

Item name Removable insulation jacket
Application Pipe, Valve, Flange,Turbines
Inner fabric Silicone coated fiberglass fabric
Insulation layer Fiberglass needle mat
Protection Layer Silicone coated fiberglass fabric
Facilities 12ga Stainless Steel Lace Hooks and Quilt Pins
Thread Kevlar Thread
Thickness 40mm
Temperature resistant 260℃



Main Application:

Injection Molding Barrel Insulation

Oil and gas processing industry

Fireproof materials for construction
High temperature equipment

Steam turbines, gas turbines (as turbine blankets) and compressors

Exhaust systems of engines

Custom boat covers

Pump & Compressor Insulation Covers

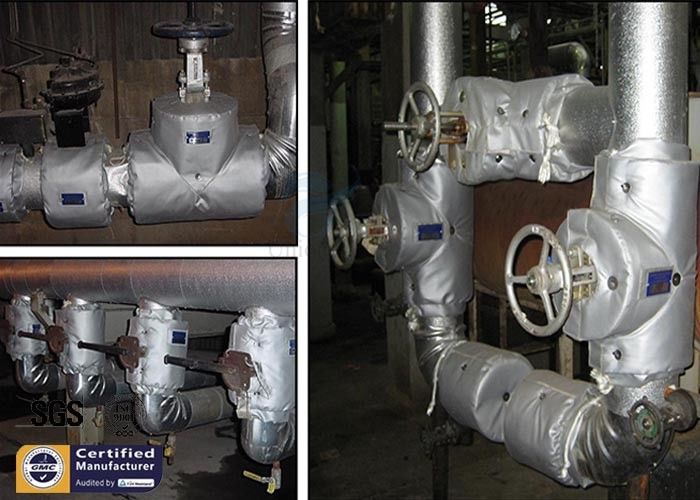

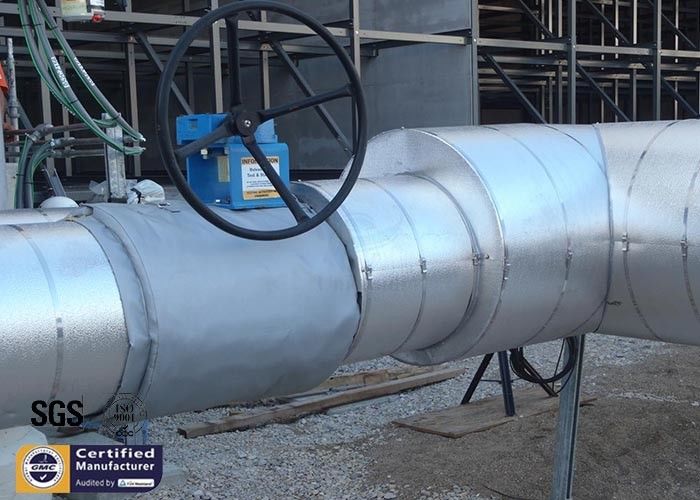

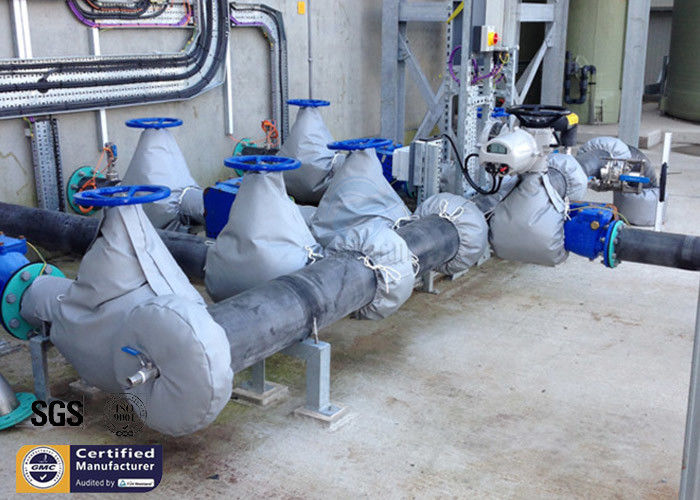

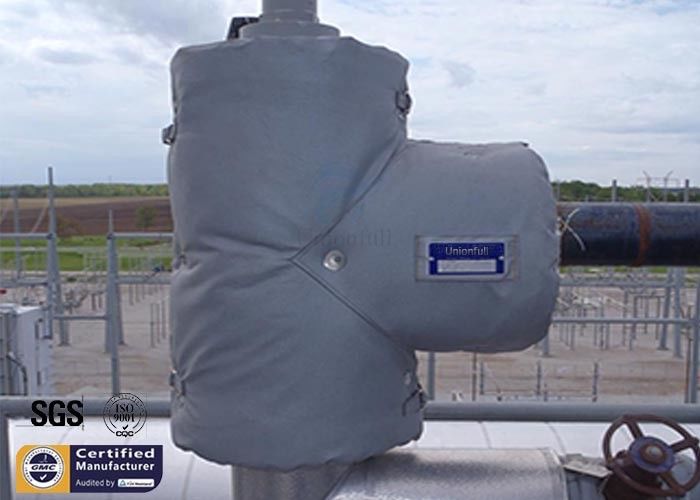

Pictures:

40mm Easy Disassemble Insulation Cover Heating Device Removable Thermal Jacket40mm Easy Disassemble Insulation Cover Heating Device Removable Thermal Jacket
