Gate Valve Glass Fiber Thermal Insulation Jacket Energy Saving For Industry

China Gate Valve Glass Fiber Thermal Insulation Jacket Energy Saving For Industry supplier
Gate Valve Glass Fiber Thermal Insulation Jacket Energy Saving For Industry supplier Gate Valve Glass Fiber Thermal Insulation Jacket Energy Saving For Industry supplier Gate Valve Glass Fiber Thermal Insulation Jacket Energy Saving For Industry supplier Gate Valve Glass Fiber Thermal Insulation Jacket Energy Saving For Industry supplier

Large Image :  Gate Valve Glass Fiber Thermal Insulation Jacket Energy Saving For Industry

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001-2008; SGS;TUV
Model Number: UPIJG-T-40

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: $20--$45 one piece
Packaging Details: 10pcs in woven bag
Delivery Time: 2 weeks after receiving payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2800 PCS Per Day
Contact Now
Detailed Product Description
Out Layer: Silicone Coated Fiberglass Fabric Insulation: E Glass Needle Mat
Energy Saving Rate: 25~40% Thickness: 25~40mm
Working Temperature: 300℃ Continuously Thread: Kevlar

Gate Valve Glass Fiber Thermal Insulation Jacket Energy Saving For Industry



Tired of the extra time and labor it takes to install insulation jacket for your device? Leave it to us. We do the following and much, much more:

-Easy to disassemble and install, everyone can do it, saving more than 50% of manpower

-Save equipment 20%-45% energy

-High adaptable, suitable for different shapes of valve, pipe, pump and heating equipment

-No asbestos, Eco-friendly

-Short return on investment period (with 20% energy-saving rate, it takes 4 to 5 months to recover the cost. the higher the rate is, the less time it takes)



Industry gate valve need to install insulation jacket to avoid freezing and overheating, but the traditional insulatin cover is hard to be bend&fold due to it's material. In order to come true a convenient inspection and maintenance, removable insulation jacket is designed successfull.

Unionfull according to the specific shape of the pipe or equipment and its use environment, after careful design, mapping, removable insulation jacket are made by special processes. It can be used at different temperatures, different shapes of pipes, valves and various adiabatic insulation of cold and hot equipment. Removable insulation jacket is especially practical for pipeline equipment that needs to be disassembled, maintained and cleaned frequently.



Normally, removable insulation jacket consist of 3 to 6 layers, materials of insulation cover are 260℃ silicone coated gfiberglass fabric and 800℃ fiberglass needled mat interior. With these fiberglass materials, flexible insulation cover has performance like heat resistant, electrical insulation, high intensity, flexible and tough, oil&water resistance and anti corrosion.



Properties:

High temperature resistant, and keep the heat in

High density fiberglass Insulation

Improves Equipment Process

Reduce unnecessary emissions

Waterproof and oil proof

Pretty appearance and easy cleaning surface



Data sheet Of Fabric:

Material E-glass fiber cloth
Coating

Silicone rubber 2 sides

Weight 590g/m2 ± 10g/m2
Thickness 0.43mm ± 0.02mm
Color Gray
Temperature resistant -70 ~ +260℃
Yarn type ECG37 1/0



Data sheet Of Insulation Jacket:

Item name Removable insulation jacket
Application Pipe, Valve, Flange,Turbines
Inner fabric Silicone coated fiberglass fabric
Insulation layer Fiberglass needle mat
Protection Layer Silicone coated fiberglass fabric
Facilities 12ga Stainless Steel Lace Hooks and Quilt Pins
Thread Kevlar Thread
Thickness 40mm
Temperature resistant 260℃



Main Application:

Injection Molding Barrel Insulation

Oil and gas processing industry

Fireproof materials for construction
High temperature equipment

Steam turbines, gas turbines (as turbine blankets) and compressors

Exhaust systems of engines

Custom boat covers

Pump & Compressor Insulation Covers

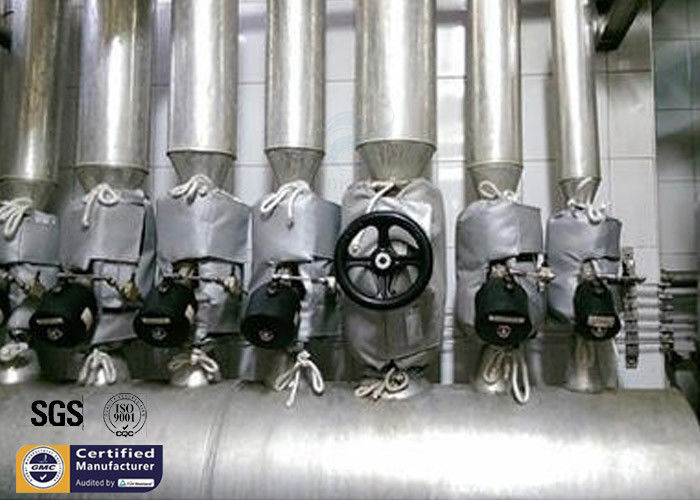

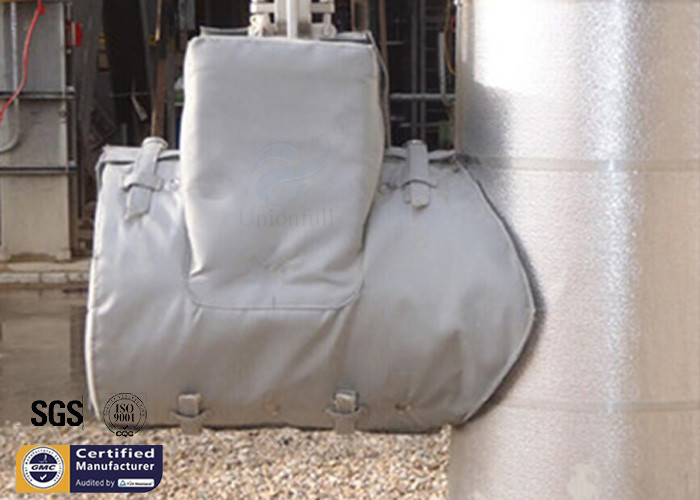

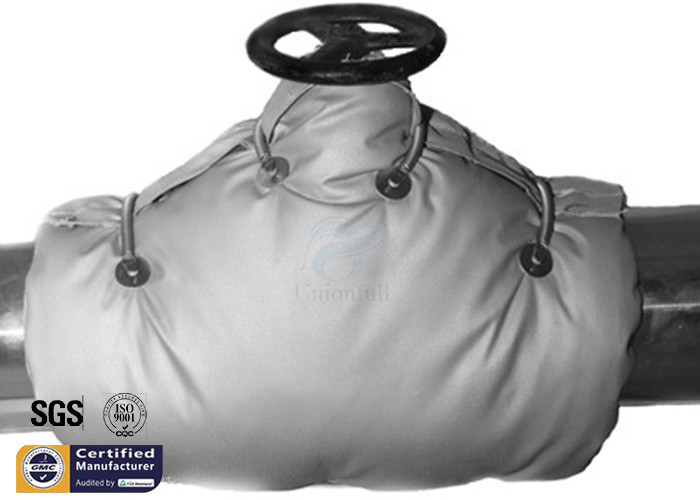

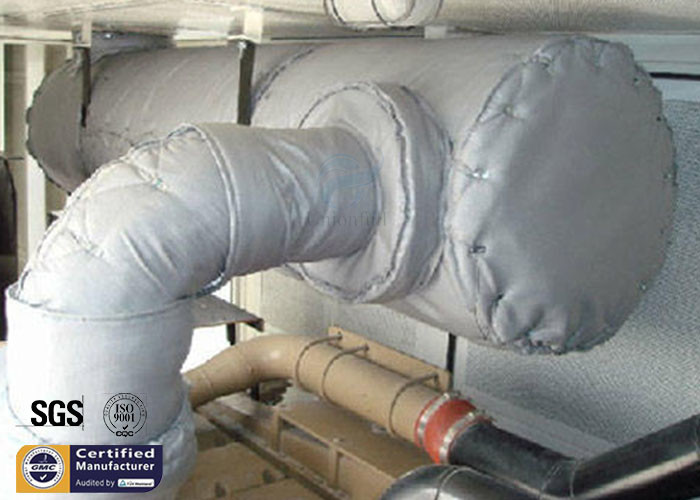

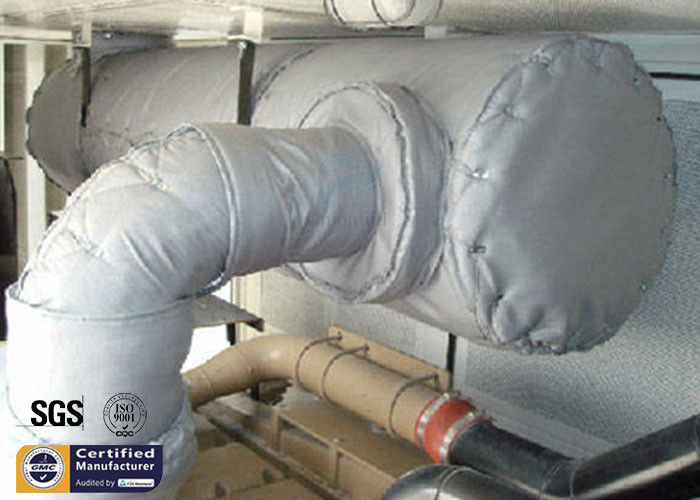

Pictures:

Gate Valve Glass Fiber Thermal Insulation Jacket Energy Saving For IndustryGate Valve Glass Fiber Thermal Insulation Jacket Energy Saving For Industry
