25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible

China 25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible supplier
25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible supplier 25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible supplier 25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible supplier 25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible supplier 25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible supplier

Large Image :  25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: UPCAL-8784

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: One roll in woven bag
Delivery Time: 2 weeks after receiving payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000m2 Per Day
Contact Now
Detailed Product Description
Basic Fabric: Fiberglass Fabric Surface Treatment: Aluminium Foil
Weight: 880g/m2 Construction: AL + Fiberglass + PE
Thickness: 0.85mm Reflectivity: 95 - 97%
Temperature: ≤300℃ Loading: Shanghai

Non Combustiable 25oz Sliver Aluminium Foil Laminated Fiberglass Fabric



Description:



Fiberglass fabric coated with aluminium foil has excellent properties such as smooth surface on the aluminum foil, strong light reflection, good stretching resistance in length and breadth, non-breath ability, non-water permeability, good hermetic and weather resistance.



Temperature resistant:

Fiberglass fabric: ≤550℃

Adhesive: ≤300℃

Aluminium foil: ≤300℃



Data sheet Of Basic Fabric:

Type



C-glass/E-glass

Item No.



UPSE-8784

Thickness



0.8mm 0.032inch

Weight



850g/m2 25oz/yd2

Yarn weft/warp



ECG37 1/4,ECG37 1/5 ECG37 1/4,ECG37 1/5

Construction weft/warp



8/6 ends/cm 8/6 ends/cm

Temperature resistant



≤500℃ ≤932℉

Tensile strength



2600/2400(N/50mm)



Data sheet Of UPCAL-8784:

Item



Aluminum Foil Fiberglass Fabric

Thickness



0.85mm

Width



1 m, 1.2 m, 1.5 m

Weight



880g/m2

Weave



Satin

Glass Yarn Type



E-Glass/ C-Glass
Advantages

95% radiant thermal reflective,

Non-breath ability,Non-water permeability



Advantage

1.Smooth surface on the aluminum foil
2.good stretching resistance in length and breadth
3.Low thermal conductivity and superior heat insulation;

4.Keeps warmth in during winter and cools in summer

5.Good fire resistance can be rated IMO part 5

6.95% heat reflection

7.Moisture barrier,water-proof, fire-retarding and anti-corrosion

8.Light weight and easy to handle



Main Application:

1.Used as the protective layer of super glass wool with excellent functions of fire-resistance, anti-corrosion, heat isolation and heat protection and sound absorption, sound-proof materials in construction.
2.Heat insulation, sound absorption and noise reduction for car, train, refrigerator car and laboratory; moisture proof cushion for traveling

3.Packing for special products and cold storage

4.Making protective wear- gloves, covers

5.Wrapping materials of oil transportation pipelines and the steam pipelines in the petrochemical industry, ducting with the same effects as mentioned above

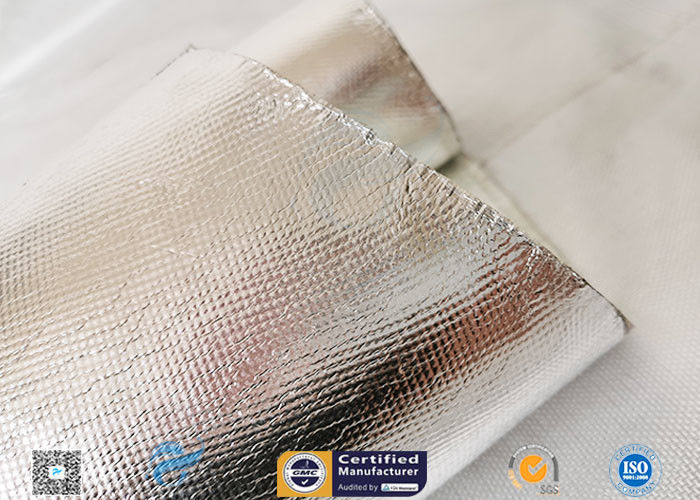

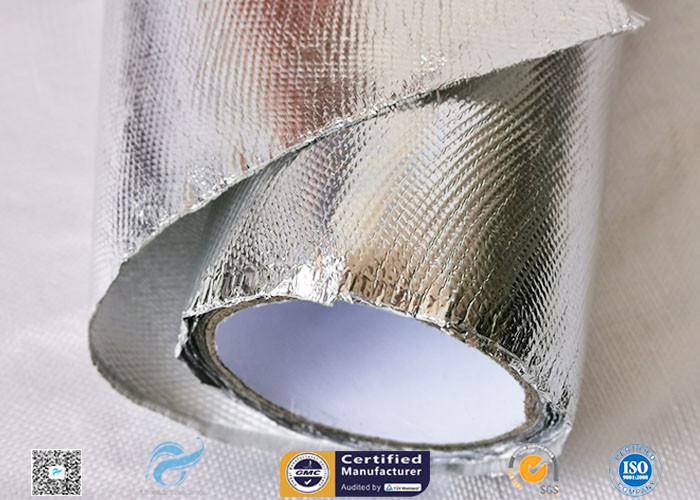

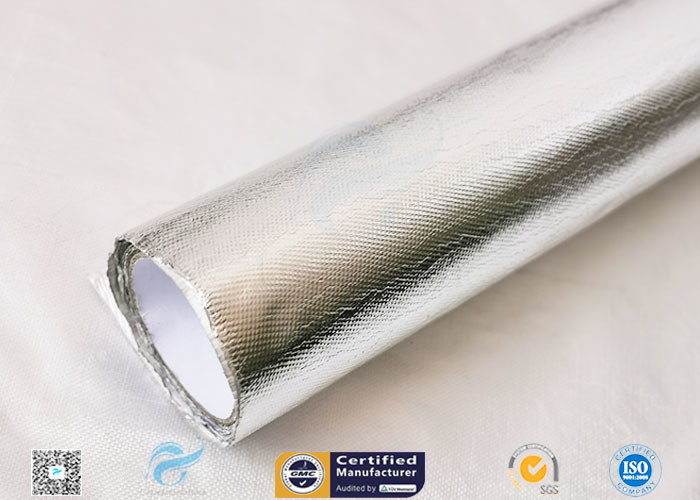

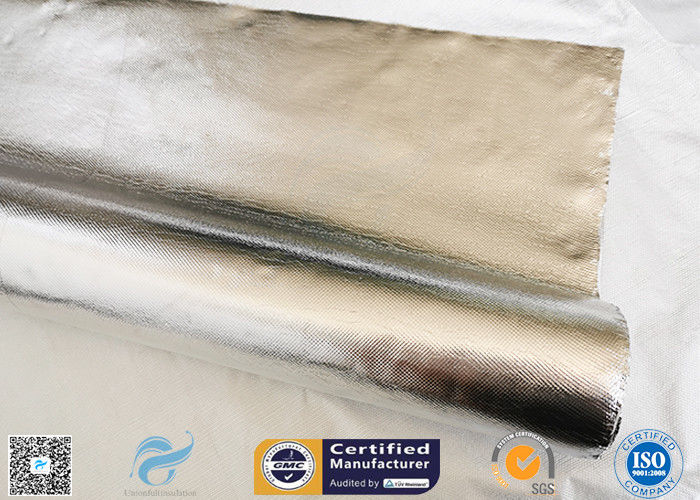

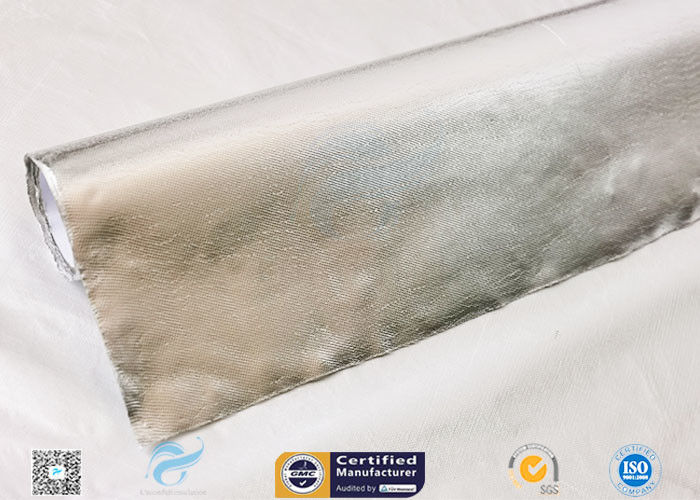

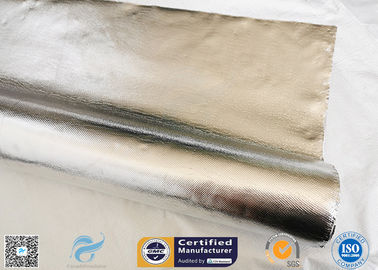

Pictures:

25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible25oz Sliver Aluminium Foil Laminated Fiberglass Fabric Non Combustible
