Waterproof 880g Light Reflect Silver Coated Fabric High Temperature Adhesive

China Waterproof 880g Light Reflect Silver Coated Fabric High Temperature Adhesive supplier
Waterproof 880g Light Reflect Silver Coated Fabric High Temperature Adhesive supplier Waterproof 880g Light Reflect Silver Coated Fabric High Temperature Adhesive supplier Waterproof 880g Light Reflect Silver Coated Fabric High Temperature Adhesive supplier Waterproof 880g Light Reflect Silver Coated Fabric High Temperature Adhesive supplier Waterproof 880g Light Reflect Silver Coated Fabric High Temperature Adhesive supplier

Large Image :  Waterproof 880g Light Reflect Silver Coated Fabric High Temperature Adhesive

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: UPCAL-8784

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: One roll in woven bag
Delivery Time: 2 weeks after receiving payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000m2 Per Day
Contact Now
Detailed Product Description
Basic Fabric: Fiberglass Fabric Surface Treatment: Aluminium Foil
Weight: 880g/m2 Construction: AL + Fiberglass + PE
HS Code: 7607200000 Reflectivity: 95 - 97%
Life Time: More Than 5 Years Loading: Shanghai

Waterproof 880g Light Reflect Aluminium Foil Laminated Fiberglass Fabric



Description:

This cloth is laminated aluminium foil on the fiberglass cloth by high temperature adhesive. By applying uniquely advanced compound processing and using E-fibreglass as the base cloth and special fire-resistant adhesive agent, Unionfull's product performance excellent properties such as the smooth surface on the aluminium foil, strong light reflection, good stretching resistance in breadth, excellent sealing, non-water permeability, good weather resistance,anti-burning. This new material product has already covered many domains such as electric appliance, electronic, transportation, chemical engineering, architectural engineering, heat insulation, sound absorption, fire prevention and environmental protection.



Aluminum foil fiberglass composite fabric reflects 95% or more of the radiant heat that contacts its surface. Constructed from a high-temperature base fiberglass which is then coated with aluminum foil or aluminum film.



Temperature resistant:

Fiberglass fabric: ≤550℃

Adhesive: ≤300℃

Aluminium foil: ≤300℃



Data sheet Of Basic Fabric:

Type



C-glass/E-glass

Item No.



UPSE-8784

Thickness



0.8mm 0.032inch

Weight



850g/m2 25oz/yd2

Yarn weft/warp



ECG37 1/4,ECG37 1/5 ECG37 1/4,ECG37 1/5

Construction weft/warp



8/6 ends/cm 8/6 ends/cm

Temperature resistant



≤500℃ ≤932℉

Tensile strength



2600/2400(N/50mm)



Data sheet Of UPCAL-8784:

Item



Aluminum Foil Fiberglass Fabric

Thickness



0.85mm

Width



1 m, 1.2 m, 1.5 m

Weight



880g/m2

Weave



Satin

Glass Yarn Type



E-Glass/ C-Glass
Advantages

95% radiant thermal reflective,

Non-breath ability,Non-water permeability



Advantage

1.Smooth surface on the aluminum foil
2.good stretching resistance in length and breadth
3.Low thermal conductivity and superior heat insulation;

4.Easy to install, high efficiency, maintenance free, environment friendly.

5.Good fire resistance can be rated IMO part 5

6.95% heat reflection

7.Non-water permeability

8.Light weight and easy to handle



Main Application:

1.Used as the protective layer of super glass wool with excellent functions of fire-resistance, anti-corrosion, heat isolation and heat protection and sound absorption, sound-proof materials in construction.
2.Heat insulation, sound absorption and noise reduction for car, train, refrigerator car and laboratory; moisture proof cushion for traveling

3.Packing for special products and cold storage

4.Making protective wear- gloves, covers

5.Wrapping materials of oil transportation pipelines and the steam pipelines in the petrochemical industry, ducting with the same effects as mentioned above

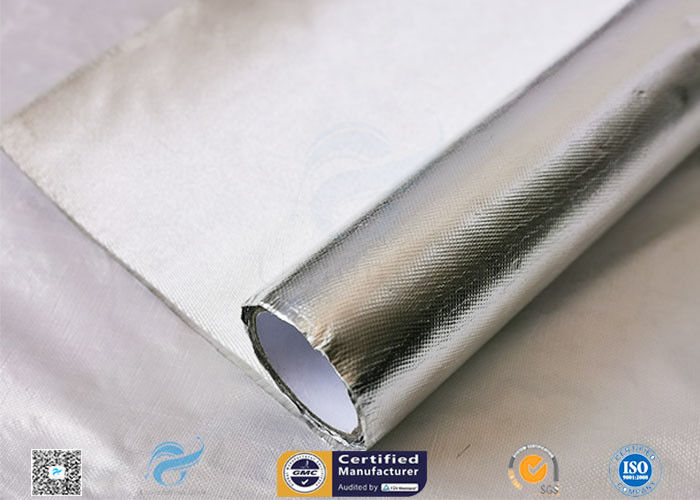

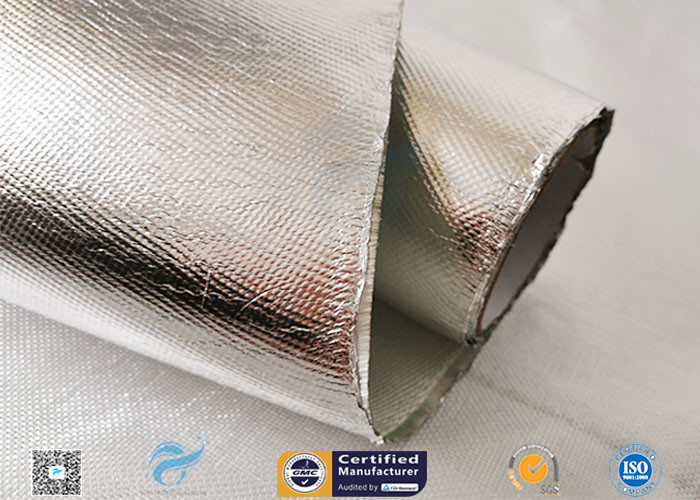

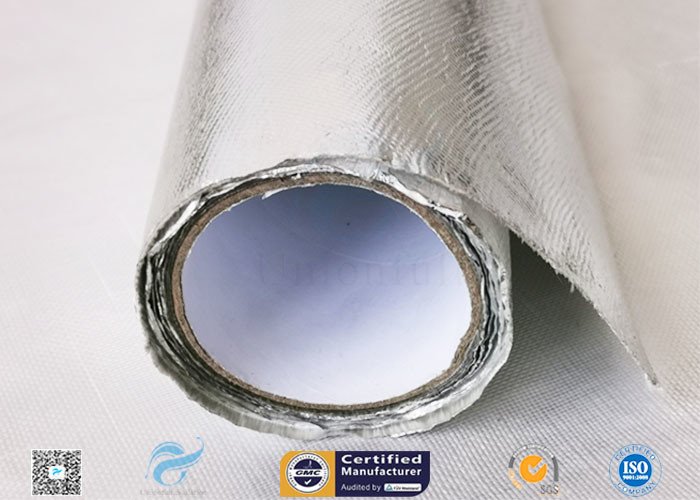

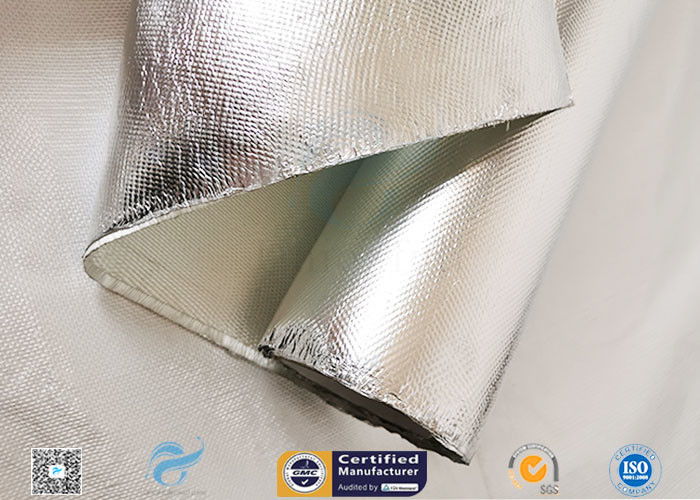

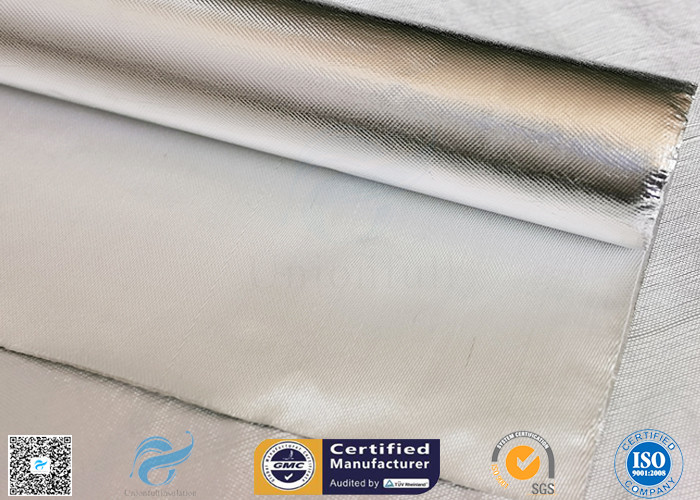

Pictures:

Waterproof 880g Light Reflect Silver Coated Fabric High Temperature AdhesiveWaterproof 880g Light Reflect Silver Coated Fabric High Temperature Adhesive
