Electrical Insulation Durable Silicone Coated Fiberglass Fabric Satin Weave

China Electrical Insulation Durable Silicone Coated Fiberglass Fabric Satin Weave supplier
Electrical Insulation Durable Silicone Coated Fiberglass Fabric Satin Weave supplier Electrical Insulation Durable Silicone Coated Fiberglass Fabric Satin Weave supplier Electrical Insulation Durable Silicone Coated Fiberglass Fabric Satin Weave supplier Electrical Insulation Durable Silicone Coated Fiberglass Fabric Satin Weave supplier Electrical Insulation Durable Silicone Coated Fiberglass Fabric Satin Weave supplier

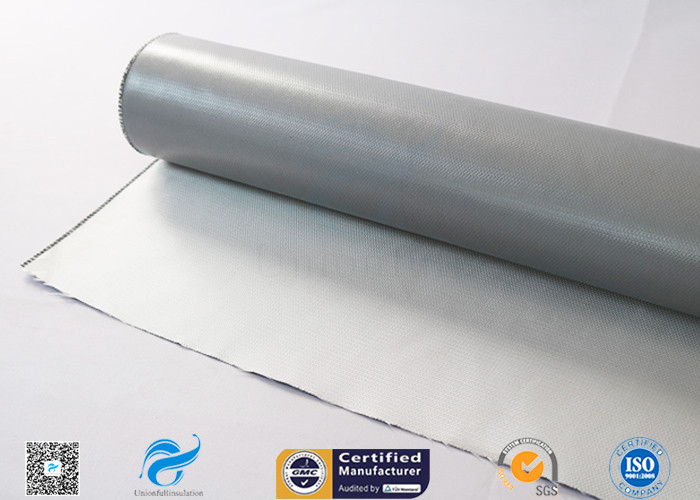

Large Image :  Electrical Insulation Durable Silicone Coated Fiberglass Fabric Satin Weave

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: UPSE-8732S80

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: One roll in woven bag
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000m2 Per Day
Contact Now
Detailed Product Description
Coating Material: Silicone Color: Red, Gray, Black, Yellow, Blue, Orange
Loading Port: Shanghai Yarn Type: E-glass
Weave: Satin Non Flammability: ≤25%

Electrical Insulation Satin Weave Durable Silicone Coated Fiberglass Fabric


Description:
Silicone Coated Fiberglass Fabric are produced using high-end technology and state of the art machinery. The base cloth of the coated fabric is weaved from glass fiber filament yarn and can with stand high temperature up to 260degree.



Silicone glass fiber is woven from different weaving methods, mainly in plain, satin and twill. UPSC-8732S80 is 4HS (four-harness satin), in this weave patter there is a three by one interlacing, where a fill yarn floats over three warp yarns and under one.The 4HS is more pliable than the plain weave and easier to conform to curved surface typical in reinforced plastics.



Characteristics:

.Operating Temperature from -50℃ to 260℃

.Basic Weight: 430g/m2

.Coating Weight: 80g on one side

.Total Weight: 510g/m2

.Coating Type: Silicone

.Thickness: 0.45mm

.Color: Gray/Red/White/Orange/Blue/Yellow

.Yarn Type :ECG37 1/0, ECG37 1/0



Performances:

-- Ozone, oxide, light and weathering aging resistance, excellent weather ability used in outdoors

-- Good electric insulation

-- Materials for -70C.deg to 300C.deg Continuous Exposure and 550C.deg

-- Excellent Chemical and Abrasion resistance.



Silicone Coated Fiberglass Fabric:

Item No. Thickness Width Color Coating Area Weight
UPSE-8628D40 0.22mm 1000/1270/1540mm Grey/Black 20gx2 side 250 g/m2 /7.4oz/yd2
UPSE-8732D160 0.45 mm 1000/1270/1540mm Grey/Red 80gx2 side 590 g/m2 /17.4oz/yd2
UPSE-8660D80 0.64mm 1000/1270/1540mm Grey 40gx2side 730 g/m2 /21.5oz/yd2



Coated Fabric UPSE-8732S80
Coating Silicone rubber
Weight 510g/m2 15oz/yd2
Thickness 0.45mm 0.017in
Low Temperature -70 degree -100℉
High Temperature 260 degree 500℉
Construction Satin (4HS)
Thread count 19.6/11.5 ± 0.5 ends/cm
Alkali content Free



Main Application:
1.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.
2.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.
3.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.

4.Application in filtration: gas filtration and liquid filtration

Pictures:

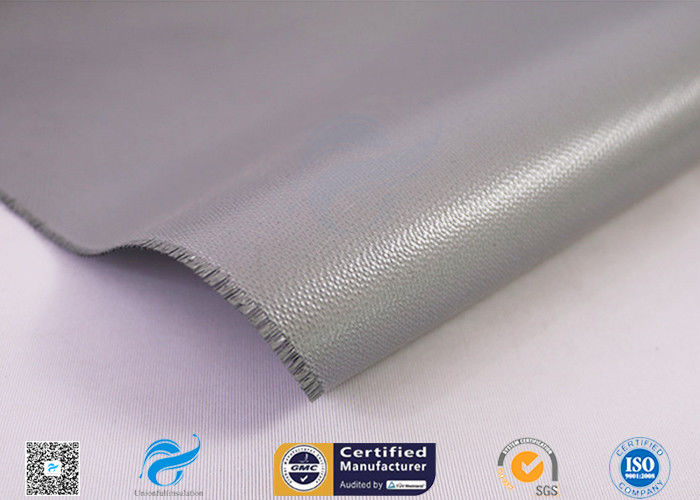

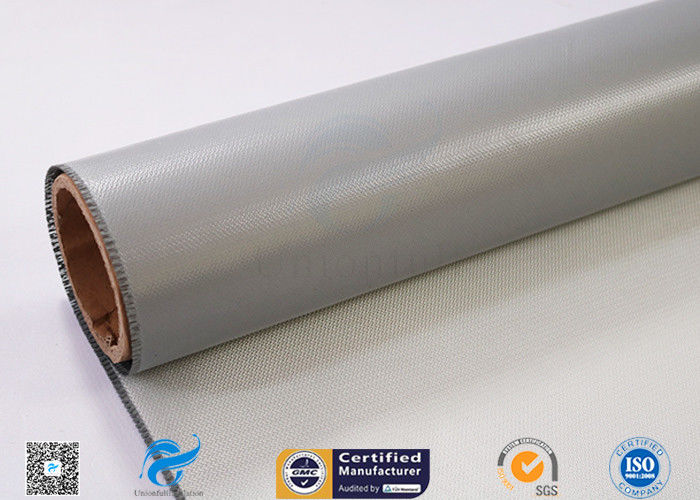

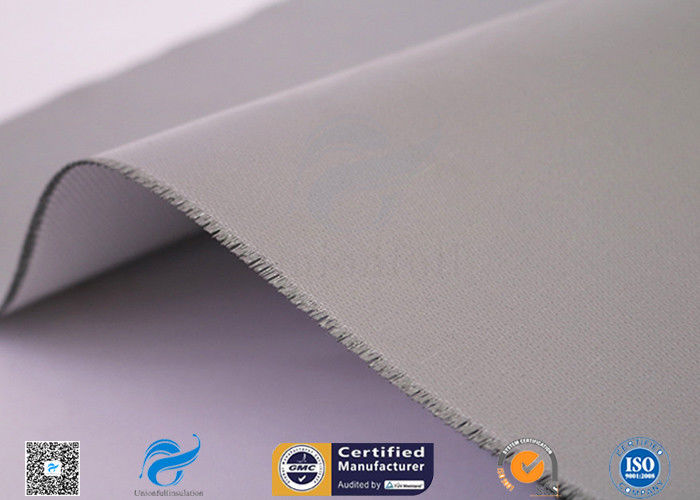

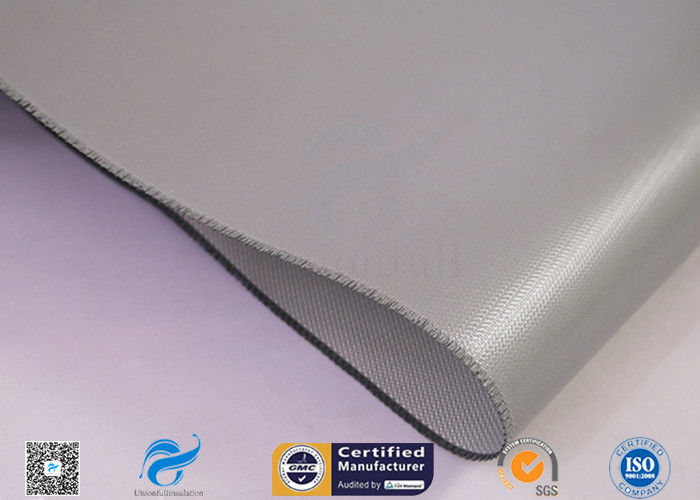

Electrical Insulation Durable Silicone Coated Fiberglass Fabric Satin WeaveElectrical Insulation Durable Silicone Coated Fiberglass Fabric Satin Weave

About Unionfull:
Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.
Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
