Industrial Fireproof Fiberglass Fabric , 510g Single Side Rubber Coated Fiberglass Fabric

China Unionfull (Insulation) Group Ltd. certifications
China Unionfull (Insulation) Group Ltd. certifications
Satisfied with your Quality and service,I will introduce some my partners to you for cooperation

—— Christian Juchem(Brazil)

نحن جد المسرور في التعاون مع الشركة jotex.علشان لديهم عدة المميزات سواء من ناحية جودة المنتجات أو موعد تسليم البضائع و هم يراعون في مصلحات الزبائن دا

—— Amjad Iqbal Syed(UAE)

You are very persistent….

—— Gloria Reed(USA)

I'm Online Chat Now

Industrial Fireproof Fiberglass Fabric , 510g Single Side Rubber Coated Fiberglass Fabric

Industrial Fireproof Fiberglass Fabric , 510g Single Side Rubber Coated Fiberglass Fabric
Industrial Fireproof Fiberglass Fabric , 510g Single Side Rubber Coated Fiberglass Fabric Industrial Fireproof Fiberglass Fabric , 510g Single Side Rubber Coated Fiberglass Fabric Industrial Fireproof Fiberglass Fabric , 510g Single Side Rubber Coated Fiberglass Fabric Industrial Fireproof Fiberglass Fabric , 510g Single Side Rubber Coated Fiberglass Fabric Industrial Fireproof Fiberglass Fabric , 510g Single Side Rubber Coated Fiberglass Fabric

Large Image :  Industrial Fireproof Fiberglass Fabric , 510g Single Side Rubber Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: UPSE-8732S80

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: One roll in woven bag
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000m2 Per Day
Detailed Product Description
Coating Material: Silicone Color: Red, Gray, Black, Yellow, Blue, Orange
Yarn: ECG37 1/0, ECG37 1/0 Coating Side: One Side
Weave: Satin Non Flammability: ≤25%
High Light:

silicone coated glass cloth

,

silicone coated fiberglass cloth

Industrial Fireproof Fabric 510g Single-Side Silicone Coated Fiberglass Fabric


Description:
One side silicone coated fiberglass fabric is made of glass fiber basic fabric and coated with 80g/m2 gray silicone on one side.
Fiber glass yarn of this silicone coated fabric is ECG37 1/0 0.7Z yarn.Total weight is 510g/m2, 430g/m2+80g/m2 coating on single side.

4HS Four-harness satin(crowfoot)

The four-harness satin is more pliable than the plain weave and easier to conform to curved surface typical in reinforced plastics.In this weave patter there is a three by one interlacing, where a fill yarn floats over three warp yarns and under one.


Performances:

-- Ozone, oxide, light and weathering aging resistance, excellent weather ability used in outdoors

-- Good electric insulation

-- Materials for -70C.deg to 300C.deg Continuous Exposure and 550C.deg

-- Excellent Chemical and Abrasion resistance.


Product Industrial Fireproof Fabric
Material Fiberglass fabric
Thickness 0.2~3mm
Width 1m,1.2m,1.5m
Color Gray, Red,Black,Blue,Green,Yellow
Temperature

Basic fiberglass fabric≤500℃

Silicone coating ≤260℃

Certificate SGS,TUV,ISO9001/2008



Model Type Weave Weight Coating side Color Packing
UPSE-8732S80 E-glass Satin 510g/m2 Single side gray Woven bag/carton box


Main Application:
1.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.
2.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.
3.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.

4.Application in filtration: gas filtration and liquid filtration

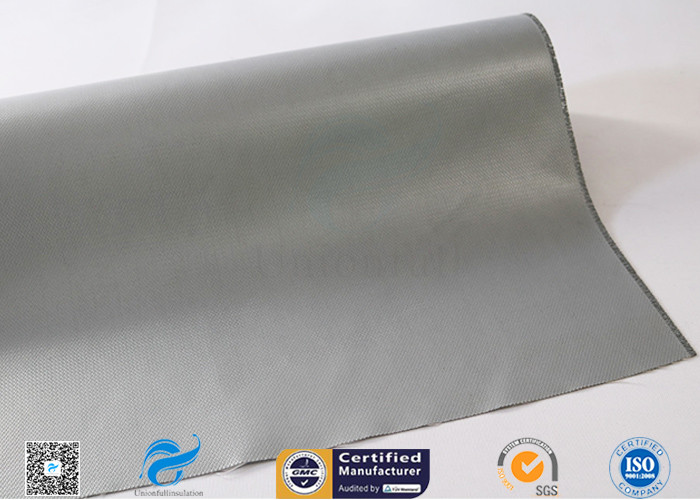

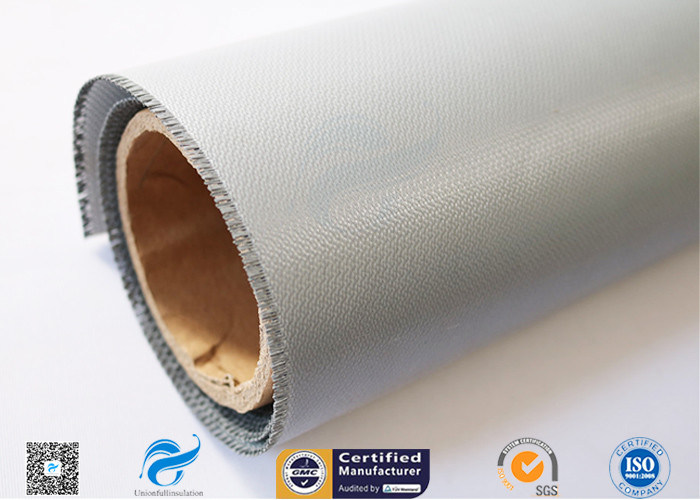

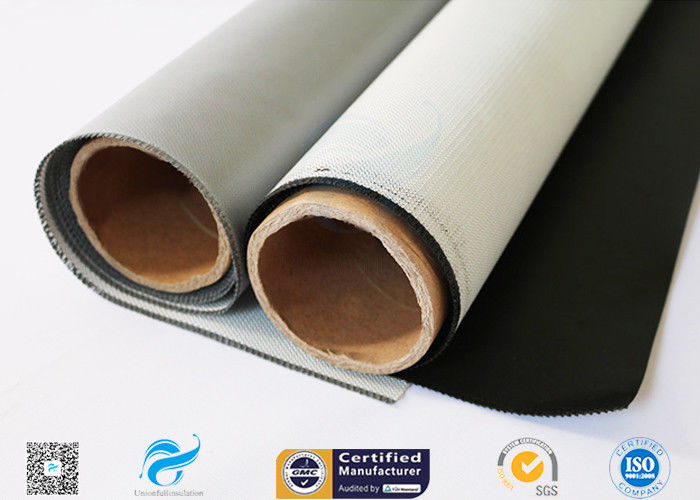

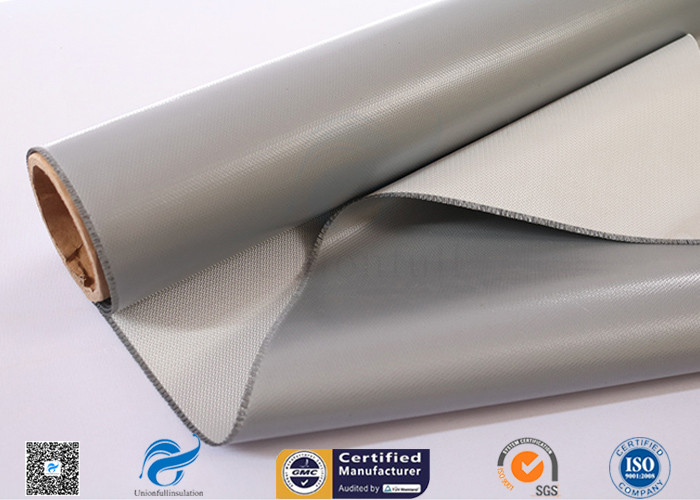

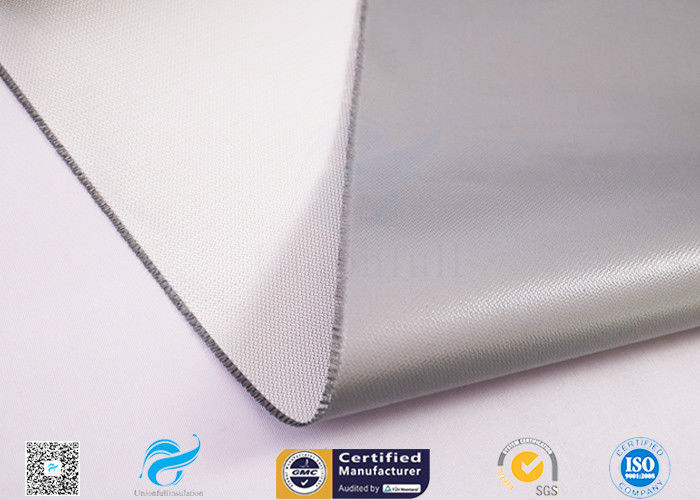

Pictures:
Industrial Fireproof Fiberglass Fabric , 510g Single Side Rubber Coated Fiberglass Fabric 0Industrial Fireproof Fiberglass Fabric , 510g Single Side Rubber Coated Fiberglass Fabric 1

About Unionfull:
Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.
Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
