0.45mm 260℃ Heat Protection Fiberglass Fabric With Silicone Glue One Side

0.45mm 260℃ Heat Protection Fiberglass Fabric With Silicone Glue One Side
0.45mm 260℃ Heat Protection Fiberglass Fabric With Silicone Glue One Side 0.45mm 260℃ Heat Protection Fiberglass Fabric With Silicone Glue One Side 0.45mm 260℃ Heat Protection Fiberglass Fabric With Silicone Glue One Side 0.45mm 260℃ Heat Protection Fiberglass Fabric With Silicone Glue One Side 0.45mm 260℃ Heat Protection Fiberglass Fabric With Silicone Glue One Side

Large Image :  0.45mm 260℃ Heat Protection Fiberglass Fabric With Silicone Glue One Side

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: UPSE-8732S80

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: One roll in woven bag
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000m2 Per Day
Detailed Product Description
Coating Material: Silicone Color: Red, Gray, Black, Yellow, Blue, Orange
Yarn: ECG37 1/0, ECG37 1/0 Coating Side: One Side
Weave: Satin Non Flammability: ≤25%
High Light:

silicone coated glass cloth

,

silicone coated fiberglass cloth

0.45mm 260℃ Heat Protection Fiberglass Fabric With Silicone Glue


Description:
One side silicone coated fiberglass fabric is made of glass fiber basic fabric and coated with 80g/m2 gray silicone on one side.
Fiber glass yarn of this silicone coated fabric is ECG37 1/0 0.7Z yarn.Total weight is 510g/m2, 430g/m2+80g/m2 coating on single side.

4HS Four-harness satin(crowfoot)

The four-harness satin is more pliable than the plain weave and easier to conform to curved surface typical in reinforced plastics.In this weave patter there is a three by one interlacing, where a fill yarn floats over three warp yarns and under one.

Advantages:

  1.Good resistance to weather, chemical,Oil

  2.Poor resistance to solvents, oils, alkalies and acids.

  3.Strong strength, good flexibility, light weight
  4.Continuous operating temperature :500°F (260°C)
  5.Non-toxic, environmentally friendly

  Properties:
  Coating material: Silicone rubber on both sides
  Coating weight: 80g/m2
  Basic weight: 430g/m2
  Thickness: 0.45mm
  Width:1/1.2/1.5m
  Color: Red,black,gray,blue,orange,yellow
  Loading Port: Shanghai
  Delivery time: 7~25days
  Working Temperature: Basic fabric ≤550℃
  Silicone coating ≤260℃
  Application: Hot Insulation Jacket, Marine & Composite Construction,High temperature flexible hose,Air duct

  Data sheet of UPSE-8732S80:

Item Weight Thread count

Yarn



Break strength Alkali Content
Basic weight Coating weight Weft Warp
UPSE-8732S80 430G/M2 80G/M2 19.6 15 ECG37 1/0 2000/1600 N/50mm Free


 Silicone Coated Fiberglass Fabric:

Model Weight Thickness Coating Construction
g/m2 oz/y2 mm inch
UPSE-8732D80 510 15 0.45 0.018 Double sides 4HS
UPSE-8732D160 590 17.4 0.45 0.018 Double sides 4HS
UPSE-8660S80 730 21.5 0.64 0.025 Single side 8HS
UPSE-8660D100 750 22 0.65 0.026 Double sides 8HS
UPSE-8788D300 1150 34 1.85 0.035 Double sides 12HS


Main Application:
1.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.
2.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.
3.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.

4.Application in filtration: gas filtration and liquid filtration

Pictures:

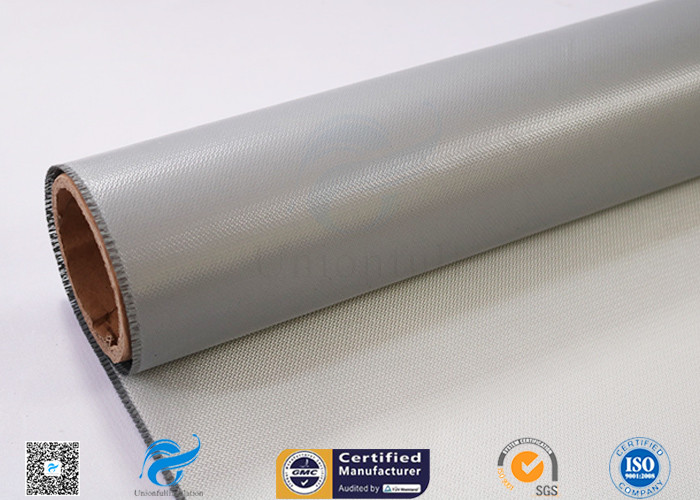

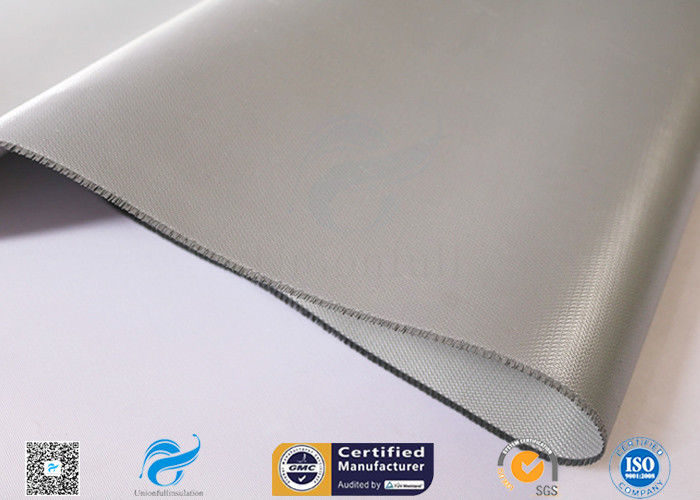

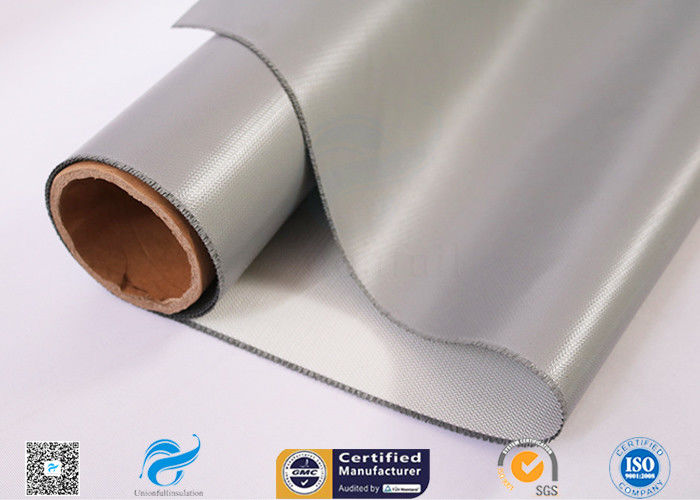

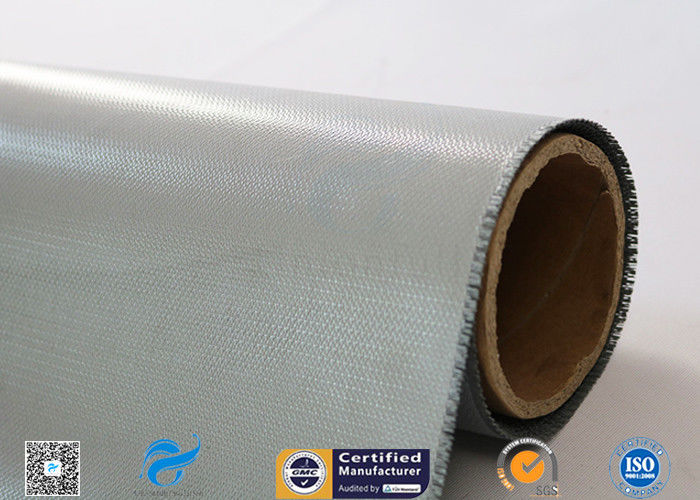

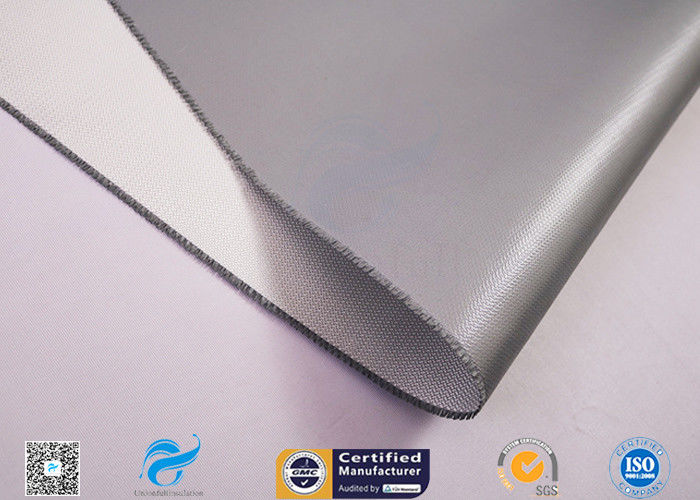

0.45mm 260℃ Heat Protection Fiberglass Fabric With Silicone Glue One Side 00.45mm 260℃ Heat Protection Fiberglass Fabric With Silicone Glue One Side 1

About Unionfull:
Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.
Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
