15oz Gary Color 4HS E Glass Silicone Coated Fiberglass Fabric , Silicone Coated Glass Cloth

Good quality Thermal Insulation Materials for sales
Good quality Thermal Insulation Materials for sales
Satisfied with your Quality and service,I will introduce some my partners to you for cooperation

—— Christian Juchem(Brazil)

نحن جد المسرور في التعاون مع الشركة jotex.علشان لديهم عدة المميزات سواء من ناحية جودة المنتجات أو موعد تسليم البضائع و هم يراعون في مصلحات الزبائن دا

—— Amjad Iqbal Syed(UAE)

You are very persistent….

—— Gloria Reed(USA)

I'm Online Chat Now

15oz Gary Color 4HS E Glass Silicone Coated Fiberglass Fabric , Silicone Coated Glass Cloth

China 15oz Gary Color 4HS E Glass Silicone Coated Fiberglass Fabric , Silicone Coated Glass Cloth supplier
15oz Gary Color 4HS E Glass Silicone Coated Fiberglass Fabric , Silicone Coated Glass Cloth supplier 15oz Gary Color 4HS E Glass Silicone Coated Fiberglass Fabric , Silicone Coated Glass Cloth supplier 15oz Gary Color 4HS E Glass Silicone Coated Fiberglass Fabric , Silicone Coated Glass Cloth supplier 15oz Gary Color 4HS E Glass Silicone Coated Fiberglass Fabric , Silicone Coated Glass Cloth supplier 15oz Gary Color 4HS E Glass Silicone Coated Fiberglass Fabric , Silicone Coated Glass Cloth supplier

Large Image :  15oz Gary Color 4HS E Glass Silicone Coated Fiberglass Fabric , Silicone Coated Glass Cloth

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: UPSE-8732S80

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: One roll in woven bag
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000m2 Per Day
Contact Now
Detailed Product Description
Coating Material: Silicone Color: Gray
Breaking Strength: 2000/1600 N/50mm Coating Side: One Side
Weave: 4HS Alkali Content: Free

15oz Gary Color 4HS E-glass Fabric Coated With Silicone Rubber



Description:

15oz/yd2, 510g/m2, high temperature resistant fabric designed to resist high temperature and occasional flame. It is constructed from E-glass fiber impregnated both sides with a tough, specially compounded silicone rubber coating. Silicone coated fiberglass fabric is a soft but durable, Non-flammable fabric.because of the it's special properties, this silicone coated fiberglass fabric is always used in industrial field products such as fire blanket, expansion joints, pump/pipeline thermal insulation jackets and fire fighting equipments.



Withstands all types of contaminants,Completely impervious to water, moisture, hydraulic oils.



Advantages:

1.Low Thermal conductive

2.Strong strength, good flexibility, light weight
3.Lower fastening pressure

4.Good electrical insulation

5.Good heat and cold resistance (-70 to 260℃)

6.Non-flammable



Silicone Coated Fiberglass Fabric:

Model Coating Weight Total weight Thickness Weave Coating side
UPSE-8628D40 40g 240g/m2 0.2mm Plain 2
UPSE-8732D80 80g 510g/m2 0.43mm 4HS 2
UPSE-8732S80 80g 510g/m2 0.43mm 4HS 1
UPSE-8732D160 160g 590g/m2 0.45mm 4HS 2
UPSE-8660S100 100g 760g/m2 0.65mm 8HS 1
UPSE-8660D200 200g 860g/m2 0.65mm 8HS 2



Characteristics of UPSE-8732S80 :

Surface treatment:Silicone coating

Basic fabric: E-glass fabric

Color: Gray

Area weight:510g/m2, 15oz/yd2

Thickness:0.43mm, 0.017in

Alkali content: Alkali free

Working temp.: -70~260℃



Technical Data Sheet:

Model Yarn Weave Yarn Type Flammability Strength Width
Warp Weft
UPSE-8732S80 ECG37 1/0 ECG37 1/0 4HS E-glass ≤25% 2000/1600 N/50mm 1000mm
Advantage Heat protection,Anti-corrosion,high mechanical strength
flexible and soft,water proof



Main Application:

1.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.
2.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.
3.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.

4.Application in filtration: gas filtration and liquid filtration

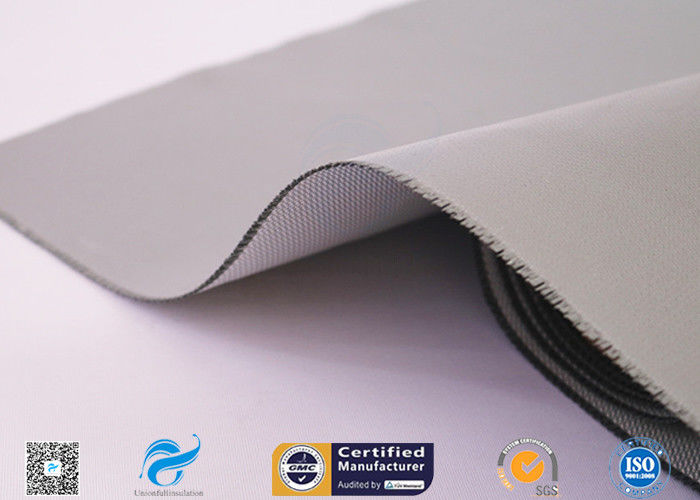

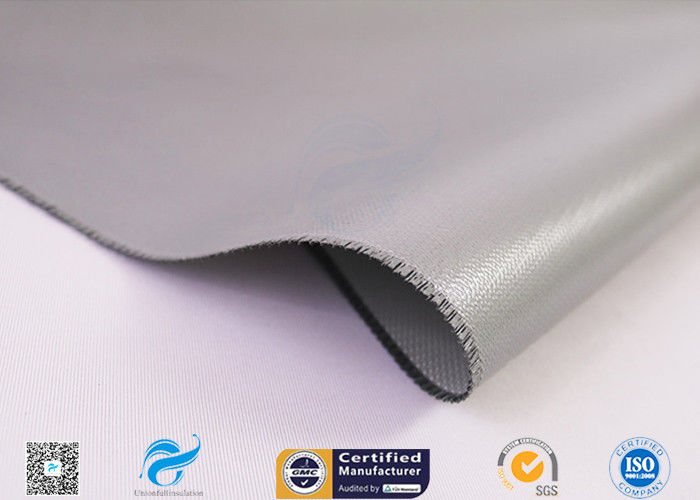

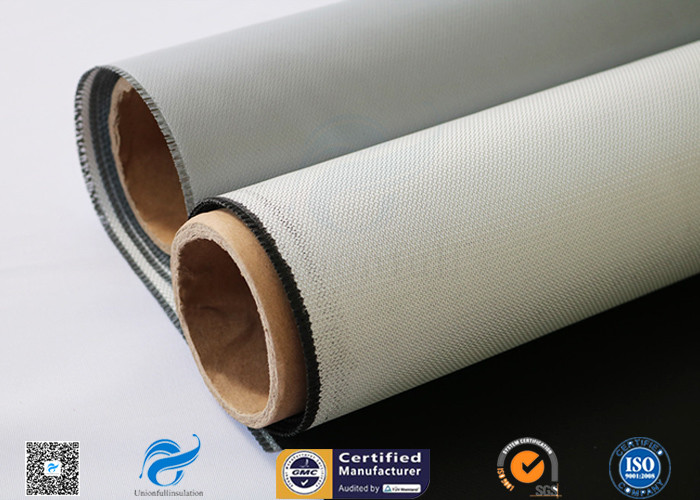

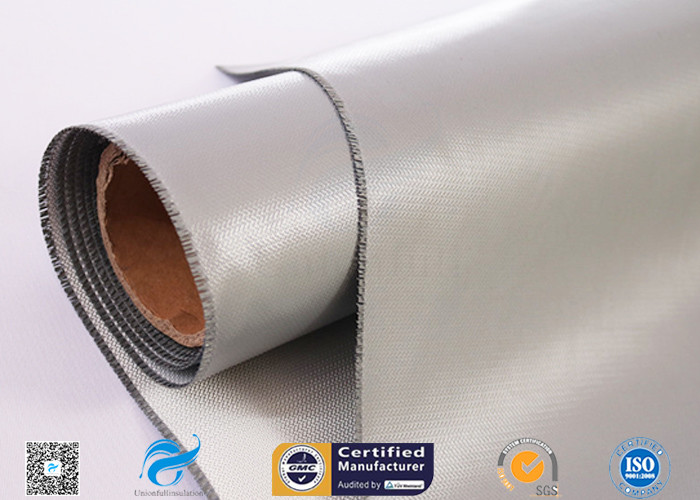

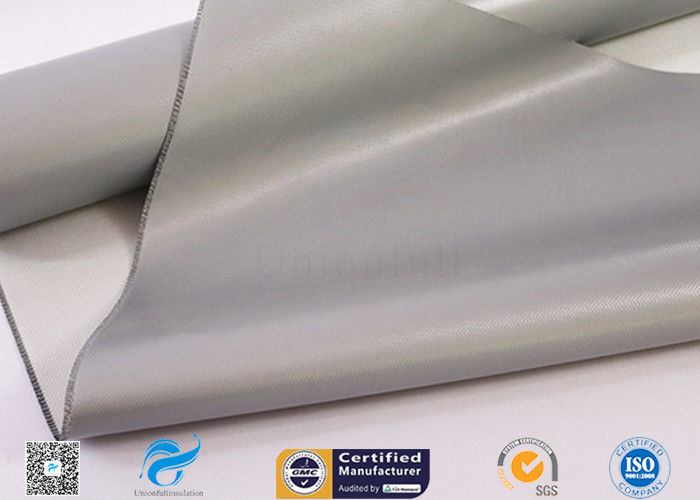

Pictures:

15oz Gary Color 4HS E Glass Silicone Coated Fiberglass Fabric , Silicone Coated Glass Cloth15oz Gary Color 4HS E Glass Silicone Coated Fiberglass Fabric , Silicone Coated Glass Cloth



About Unionfull:

Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.

Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
