Thermal Insulation Alkali Free Fiberglass Fabric Coated With Silicone Rubber

China Thermal Insulation Alkali Free Fiberglass Fabric Coated With Silicone Rubber supplier
Thermal Insulation Alkali Free Fiberglass Fabric Coated With Silicone Rubber supplier Thermal Insulation Alkali Free Fiberglass Fabric Coated With Silicone Rubber supplier Thermal Insulation Alkali Free Fiberglass Fabric Coated With Silicone Rubber supplier Thermal Insulation Alkali Free Fiberglass Fabric Coated With Silicone Rubber supplier Thermal Insulation Alkali Free Fiberglass Fabric Coated With Silicone Rubber supplier

Large Image :  Thermal Insulation Alkali Free Fiberglass Fabric Coated With Silicone Rubber

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: UPSE-8732S80

Payment & Shipping Terms:

Minimum Order Quantity: 500mters
Price: $2.5~$3.5/ m2
Packaging Details: One roll in woven bag
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000m2 Per Day
Contact Now
Detailed Product Description
Coating Material: Silicone Color: Gray
Breaking Strength: 2000/1600 N/50mm Coating Side: One Side
Weave: 4HS Alkali Content: Free

Thermal Insulation Alkali Free Fiberglass Fabric Coated With Silicone Rubber



Description:

The basic material of glass fiber cloth is alkali-free glass fiber yarn, and its manufacturing process is generally made of reinforced moisturizer. Due to its unique high temperature resistance, excellent weather resistance, and softness and toughness, fiberglass fabric has been widely used in aerospace, chemical, large-scale power generation equipment, thermal insulation, fire prevention and other fields.



UPSE-8732S80 is E-glass basic fiberglass cloth and coated with silicone on one side. Silicone coating is durable and abrasion resistant to withstand the high temperature heat. It adds extended life, while providing greater oil and water resistance than uncoated fabrics as well as electrical insulation. Working temperature of this coated fiberglass fabric is -70~260℃.



Key Features:

1.Low Thermal conductive

2.Strong strength, good flexibility, light weight
3.Lower fastening pressure

4.Good electrical insulation

5.Good heat and cold resistance (-70 to 260℃)

6.Non-flammable



Main specification of silicone fiberglass fabric:

Item No. Breaking Strength Thickness Flammability Bursting strength Mpa Width
UPSE-8628S80 1500/1200 N/50mm 0.2mm ≤25% 2.1 0~1550mm
UPSE-8732D80 2000/1600 N/50mm 0.45mm ≤25% 2.2 0~1550mm
UPSE-8660D100 2400/2200 N/50mm 0.65mm ≤25% 2.4 0~1550mm
UPSE-8784D160 2600/2400 N/50mm 0.88mm ≤25% 2.8 0~1550mm



Data sheet:

Model



UPSE-8732S80

Yarn Weft



ECG37 1/0

Yarn Warp



ECG37 1/0

Count Thread



19.6/15

Surface treatment



Silicone

Coating Side



1 side

Total weight



510g/m2 15oz/yd2

Thickness



0.43mm 0.018 in

Width



1540mm 60.6 in

Roll length



50m 164ft



Main Application:

1.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.
2.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.
3.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.

4.Application in filtration: gas filtration and liquid filtration

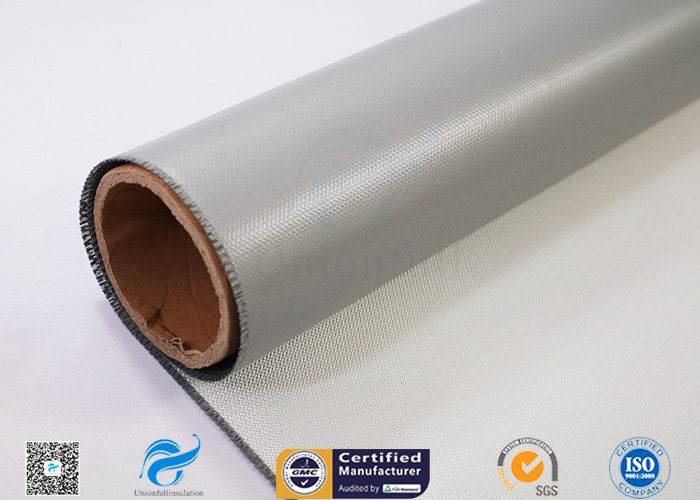

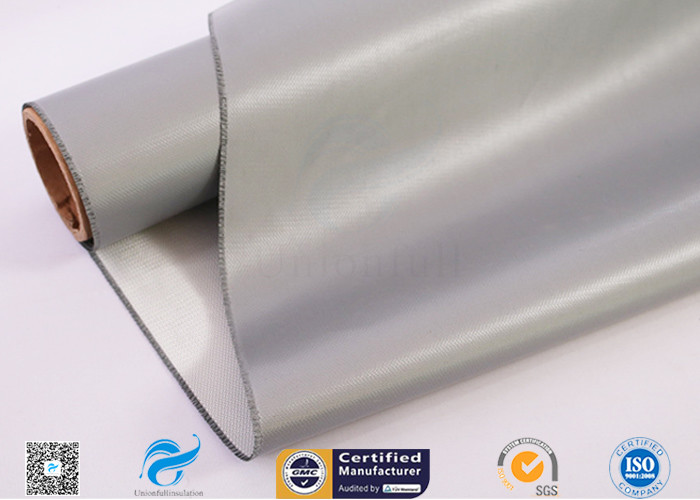

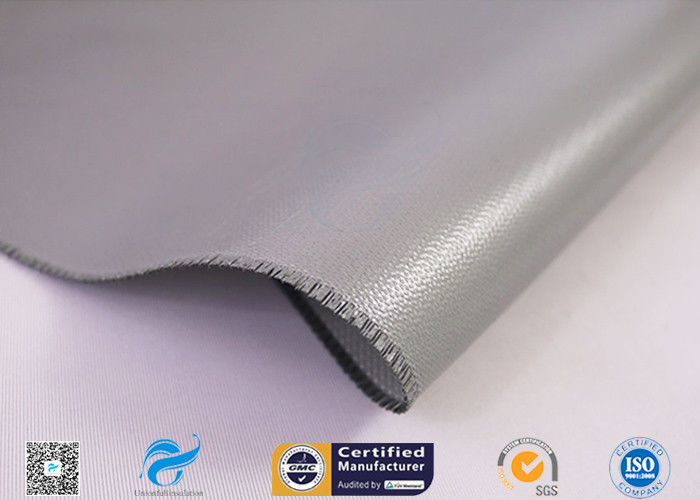

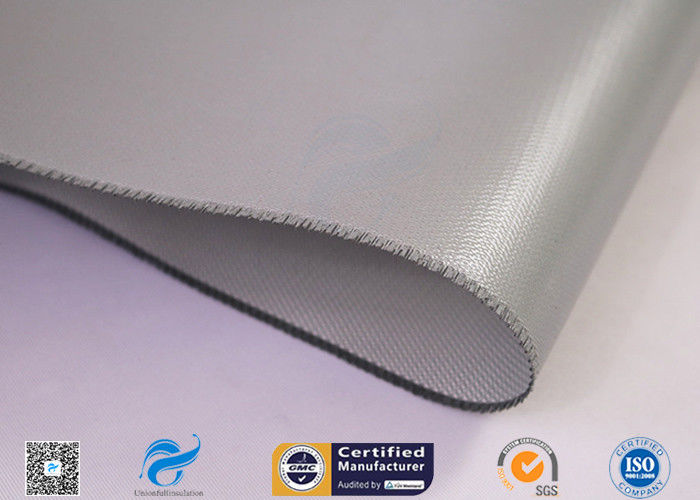

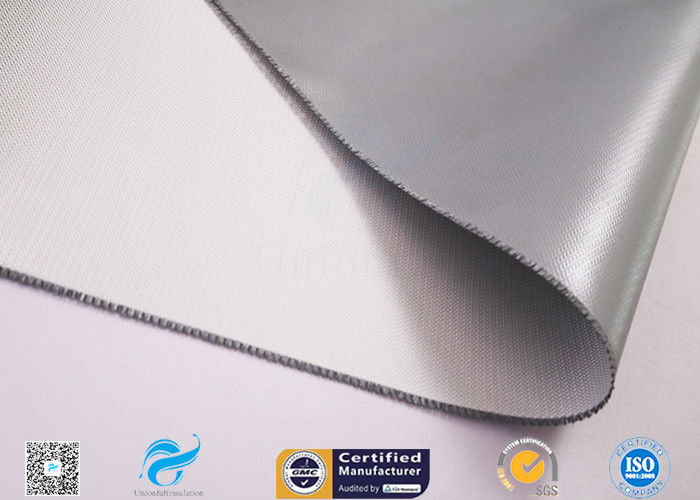

Pictures:

Thermal Insulation Alkali Free Fiberglass Fabric Coated With Silicone RubberThermal Insulation Alkali Free Fiberglass Fabric Coated With Silicone Rubber



About Unionfull:

Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.

Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
