Anti Ripper Insulation Silicone Coated Fiberglass Fabric 1000mm Wide 80/80g

China Anti Ripper Insulation Silicone Coated Fiberglass Fabric 1000mm Wide 80/80g supplier
Anti Ripper Insulation Silicone Coated Fiberglass Fabric 1000mm Wide 80/80g supplier Anti Ripper Insulation Silicone Coated Fiberglass Fabric 1000mm Wide 80/80g supplier Anti Ripper Insulation Silicone Coated Fiberglass Fabric 1000mm Wide 80/80g supplier Anti Ripper Insulation Silicone Coated Fiberglass Fabric 1000mm Wide 80/80g supplier Anti Ripper Insulation Silicone Coated Fiberglass Fabric 1000mm Wide 80/80g supplier

Large Image :  Anti Ripper Insulation Silicone Coated Fiberglass Fabric 1000mm Wide 80/80g

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: UPSE-8784D160

Payment & Shipping Terms:

Minimum Order Quantity: 100mters
Price: $6.8~$7.88/ m2
Packaging Details: One roll in woven bag
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000m2 Per Day
Contact Now
Detailed Product Description
Coating Material: Red Silicone Width: 1000mm
Color: Red, Gray, Black, Yellow, Blue, Orange Working Temperature: 260℃
Coating Side: Double Side Alkali Content: Free

Anti-ripper 1000mm Wide 80/80g Insulation Silicone Coated Fiberglass Fabric



Description:

It is constructed from a fiberglass basic fabric and coated with a specially compounded iron oxide red silicone rubber on 1 or 2 sides. They features excellent electrical insulation, heat insulation and chemical corrosion resistance.

Silicone coating is durable and abrasion resistant to withstand the high temperatures heat. It adds extended life, while providing greater oil and water resistance than uncoated fabrics as well as electrical insulation.



Specification:

Item

Yarn type

Area weight Thickness Width Weave

Basic fabric

Coated fabric Basic fabric Coated fabric



UPSE-8784D160



ECG37 1/2 850g/m2 1010g/m2 0.85mm 0.88mm 1000mm 8HS



Feature of silicone fabric:
1. Weather ability: resistance to ozone, oxygen, sunlight and aging, long using life up to 10 years.
2. Good electric insulator, dielectric constant 3~3.2, break down voltage between 20~50KV/mm.

3.Temperature resistance, it can continuously work under -70℃ to 280℃.

4.Fire prevention
Fiberglass fabrics have flame retardant properties not found in other fabrics. The real fiberglass fabric, after the fire, because the inner skeleton of the fabric is glass fiber, it will not be deformed and will not be charred.

5.Insulation
Glass fiber sun fabric has good thermal insulation properties that other fabrics do not have, which greatly reduces the use rate of room air conditioners, thereby saving energy.

6.Constant size
The material of the fabric itself determines that it is not malleable and maintains a flatness for a long time. No warping, expansion



Main Technical Data Sheet:

Item Thickness mm Width m Weight(g/m2) Color
Basic fabric Coating Total
UPSE-8628S40 0.43 1~1.55 210 40 250 Red,Gray
UPSE-8732D80 0.45 1~1.55 430 80 510 Gray,Red
UPSE-8732D160 0.45 1~1.55 430 160 590 Gray
UPSE-8660S100 0.65 1~1.55 650 100 750 Black,Red
UPSE-8784D160 0.88 1~1.55 850 160 1010 Red,Gray
UPSE-8784D300 0.88 1~1.55 850 300 1150 Gray,Red



Main Application:

-- Industry Conveyor belt and flexible hoses,expansion joints.

-- Serve as welding blankets, foundry splash protection, heat protection quilt.

-- Acoustic insulation of piping works, covers for equipment and personnel protection include: flange and valve covers, turbo covers, supercharger covers, muffler and silencer covers. exhaust system covers.

-- Electrical insulation, chemical resistant,UV light, abrasion and contamination resistance, packing material.

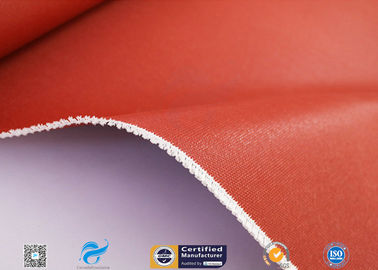

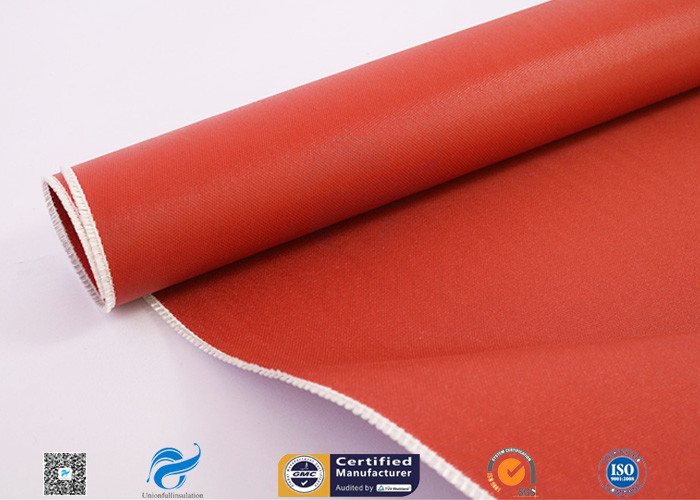

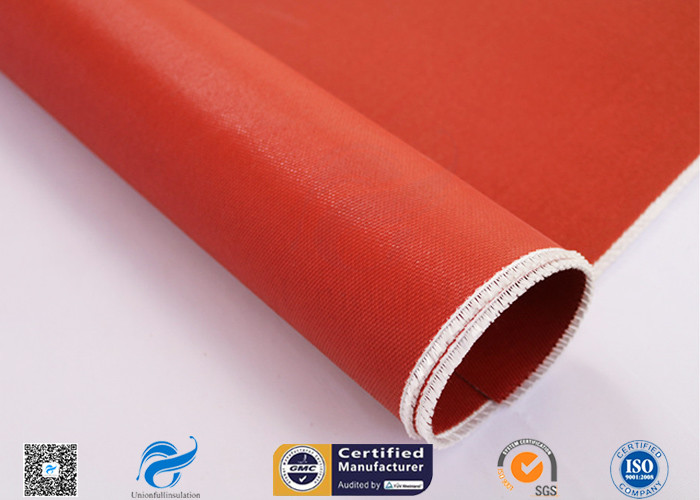

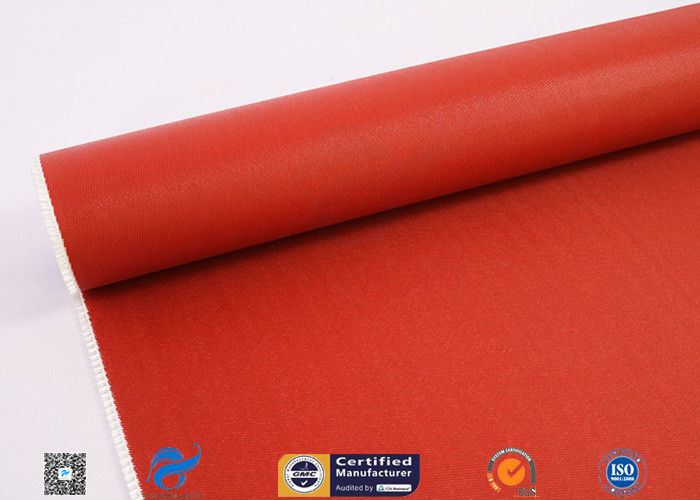

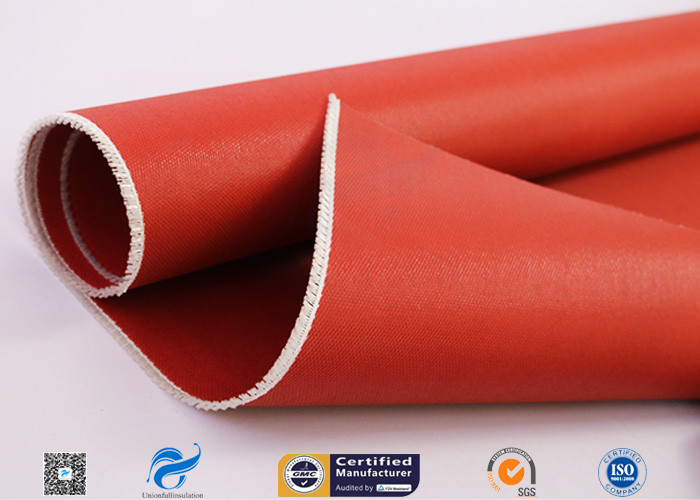

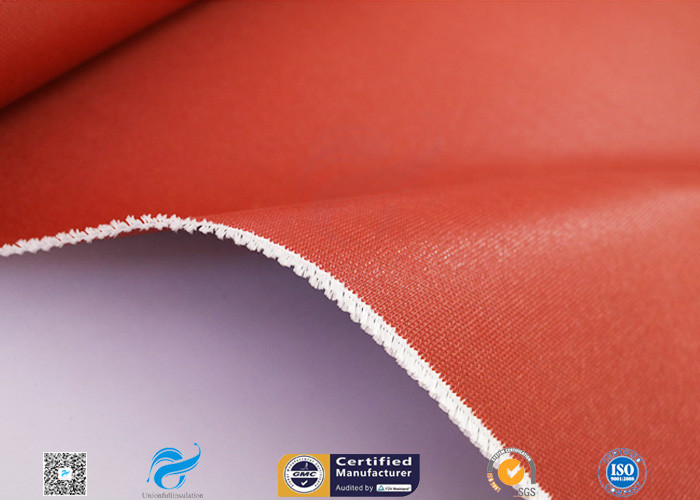

Pictures:

Anti Ripper Insulation Silicone Coated Fiberglass Fabric 1000mm Wide 80/80gAnti Ripper Insulation Silicone Coated Fiberglass Fabric 1000mm Wide 80/80g



About Unionfull:

Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.

Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
