Non Flammable Abrasion Resistance Silicone Coated Fabric 1010g High Strength

China Non Flammable Abrasion Resistance Silicone Coated Fabric 1010g High Strength supplier

Large Image :  Non Flammable Abrasion Resistance Silicone Coated Fabric 1010g High Strength

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: UPSE-8784D160

Payment & Shipping Terms:

Minimum Order Quantity: 100mters
Price: $6.8~$7.88/ m2
Packaging Details: One roll in woven bag
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000m2 Per Day
Contact Now
Detailed Product Description
Coating Material: Silicone Color: Red
Breaking Strength: 2600/2400 N/50mm Coating Side: Double Side
Weave: 8HS Alkali Content: Free

High Strength Non-flammable 1010g Abrasion Resistance Silicone Fabrics



Description:

High temperature resistant silicone fabrics are made of good fiberglass with superior capacity of high temperature and corrosion resistance, coated and rolled with silicone rubber, which is a brand new product with excellent performance and multiple applications.

UPSE-8784D160 is E-glass basic fiberglass cloth and coated with silicone on both sides. Silicone coating is durable and abrasion resistant to withstand the high temperatures heat. It adds extended life, while providing greater oil and water resistance than uncoated fabrics as well as electrical insulation. Working temperature of this coated fiberglass fabric is -70~260℃.



Alkali-free fiber (commonly known as E-glass): The R2O content is less than 0.8%, which is an aluminoborosilicate component. Its chemical stability, electrical insulation properties and strength are very good. Mainly used as electrical insulation materials, glass fiber reinforced materials and tire cords.



Key Features:

-Excellent heat resistance

-High strength and flexible

-Non-flammable

-Good heat and cold resistance (-70 to 260℃)

-Outstanding resistant of chemical and weathering



Main specification of silicone fiberglass fabric:

Item No. Breaking Strength Thickness Flammability Bursting strength Mpa Width
UPSE-8628S80 1500/1200 N/50mm 0.2mm ≤25% 2.1 0~1550mm
UPSE-8732D80 2000/1600 N/50mm 0.45mm ≤25% 2.2 0~1550mm
UPSE-8660D100 2400/2200 N/50mm 0.65mm ≤25% 2.4 0~1550mm
UPSE-8784D160 2600/2400 N/50mm 0.88mm ≤25% 2.8 0~1550mm



Data sheet:

Model



UPSE-8784D160

Yarn Weft



ECG37 1/2

Yarn Warp



ECG37 1/2

Count Thread



15/15

Surface treatment



Silicone

Coating Side



2sides

Total weight



1010g/m2 30oz/yd2

Thickness



0.88mm 0.033 in

Width



1540mm 60.6 in

Roll length



50m 164ft



Main Application:

1.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.
2.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.
3.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.

4.Application in filtration: gas filtration and liquid filtration

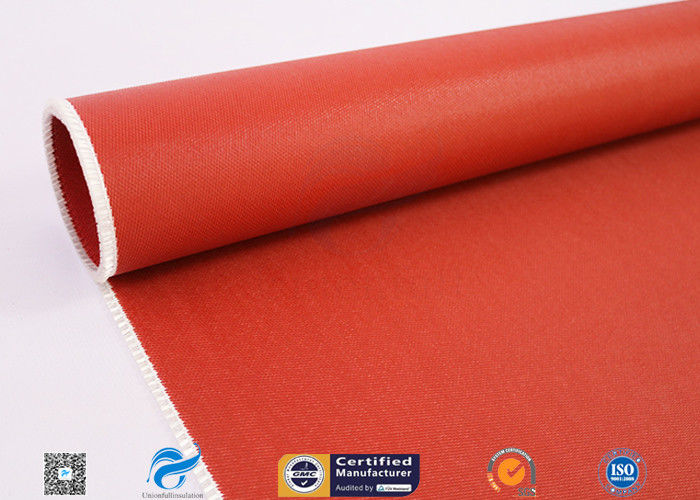

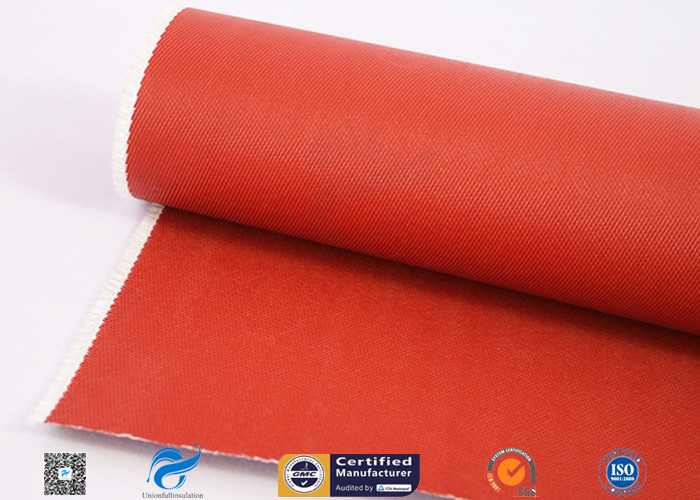

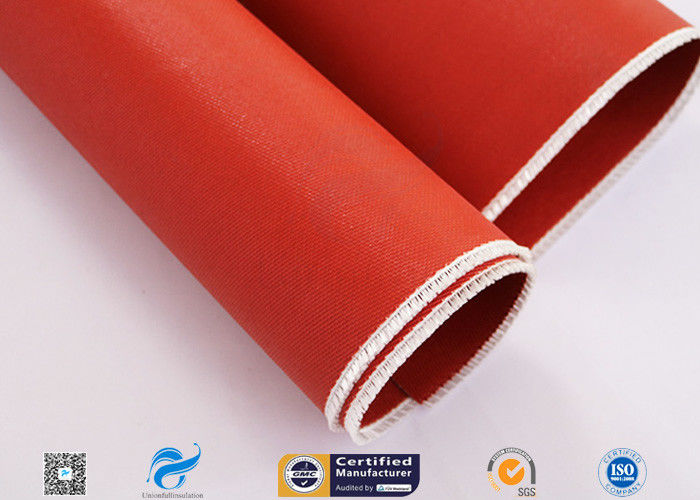

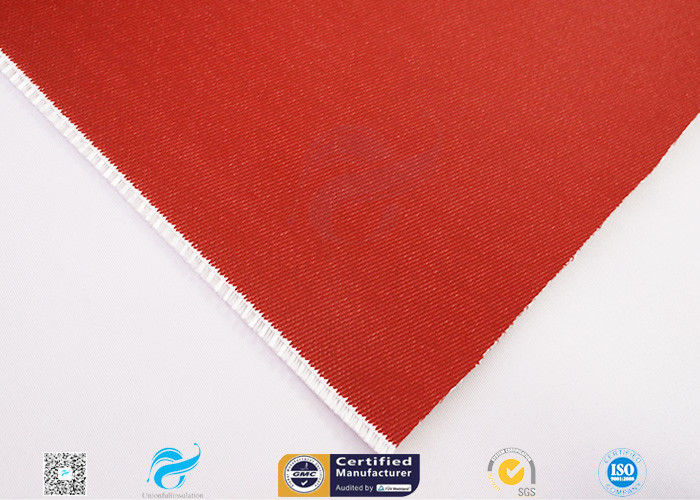

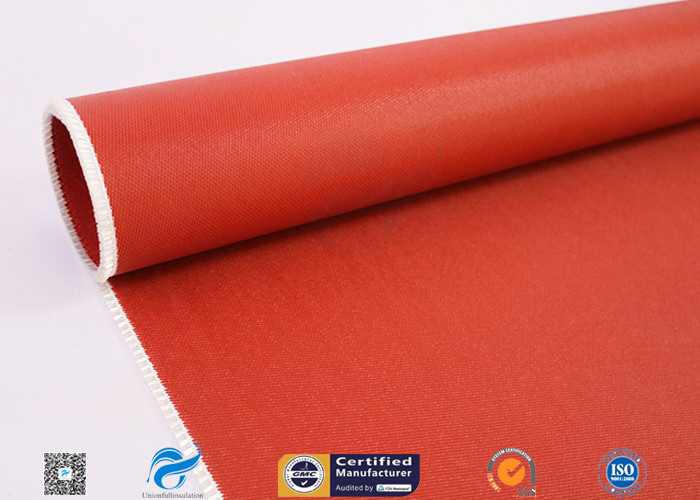

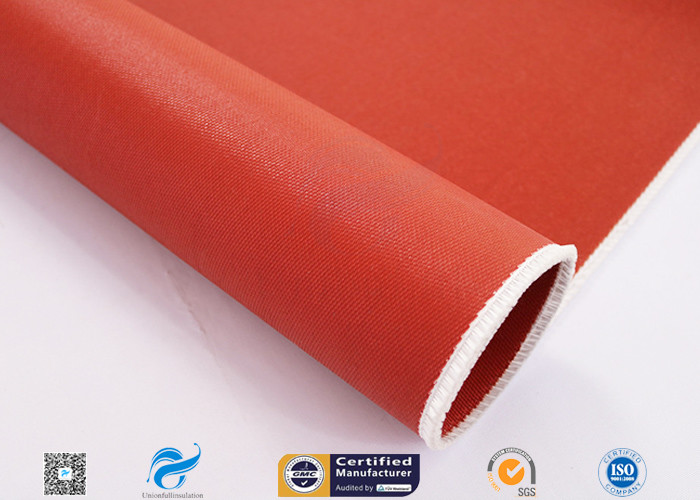

Pictures:

Non Flammable Abrasion Resistance Silicone Coated Fabric 1010g High StrengthNon Flammable Abrasion Resistance Silicone Coated Fabric 1010g High Strength



About Unionfull:

Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.

Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
