Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008; SGS;TUV |
Model Number: | UPSE-8732D80 |
Minimum Order Quantity: | 500mters |
Price: | $2.3~$3.88/ m2 |
Packaging Details: | One roll in woven bag |
Delivery Time: | 10 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 30000m2 Per Day |
Weave: | 4HS | Surface Treatment: | Silicone Coating |
---|---|---|---|
Alkali Content: | Alkali Free | Width: | 1.5m |
Yarn: | ECG37 1/0, ECG37 1/0 | Coating: | 40/40g |
Highlight: | silicone coated glass cloth,silicone coated fiberglass cloth |
Unionfull provides different size of silicone coated fiberglass fabric:
Thickness
|
0.18~2.0mm |
Coating
|
Silicone rubber |
Area weight
|
180~2000g/m2 |
Width
|
1~1.55m |
Tensile strength
|
1600~3700N/50mm |
Working Temp.
|
-70degree Min, 280degree Max |
Voltage
|
20-50kv/mm |
Moisture absorption rate | <5% |
Flammability
|
≤25% |
Yarn type
|
E-glass, C-glass |
Specification of UPSE-8732D80:
Model | Yarn type | Area weight | Thickness | Width | Strength | ||
Basic fabric | Coated fabric | Basic fabric | Coated fabric | ||||
UPSE-8732D80 | E-glass | 430g/m2 | 510g/m2 | 0.4mm | 0.43mm | 1550mm | 2000/1600N/50mm |
Capability:
1.low thermal conductivity
2.No hot shrink
3.Good abrasion resistance
4.Outstanding heat resistant
5.Superior chemical&weathering resistance
6.Non flammability
FAQ
Q1: Are you factory or trading company?
We are manufacturer professional in thermal insulation material. Unionfull Group Ltd. is not only provide good quality product but also provide international service.
Q2: What's your products ranges ?
1.Coated fiberglass fabric;
2.Fiberglass needle mat
3.Fiberglass conveyor belt
4.Finished product (fire blanket & insulation jacket & welding curtain)
5.PTFE BBQ grill mat
6.Fiberglass woven roving
Q3:What is your terms of delivery?
FOB, CFR, CIF, DDU, DDP, EXW,
Q4:How about your delivery time?
A: In generally, it will take 7 to 25 days after receiving your payment bank receipt. The specific delivery time depends on the items and the quantity of your order.
Q5: Can you supply the sample?
Yes, we could supply small sample free for your quality test.
Freight collect.
Main Application:
1.Silicone-coated glass fiber can be used as the inner and outer anti-corrosion layer of pipelines and storage tanks. It has excellent anti-corrosion performance, high temperature resistance and high strength. It is an ideal anti-corrosion material.
2.Silicone fiberglass fabric can also be used as sealing material, temperature resistant and anti-corrosion conveyor belt and packaging material.
3.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.
4.Electrical insulation
Silicone rubber coated glass fiber membrane structural material, with high electrical insulation grade, can withstand high voltage load, can be made into insulation cloth, casing and other products.

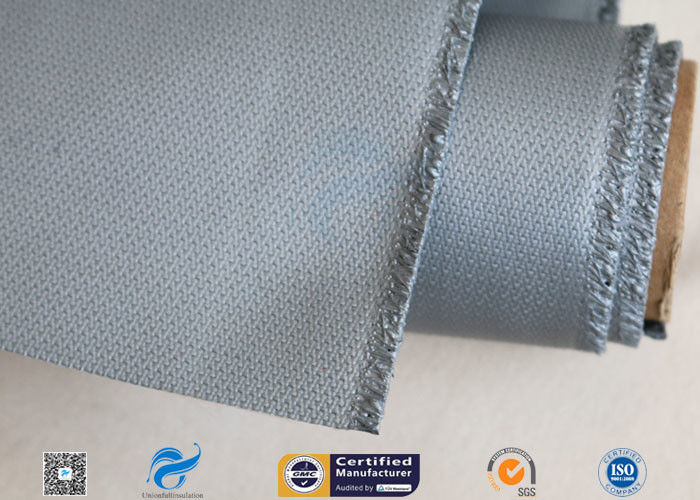

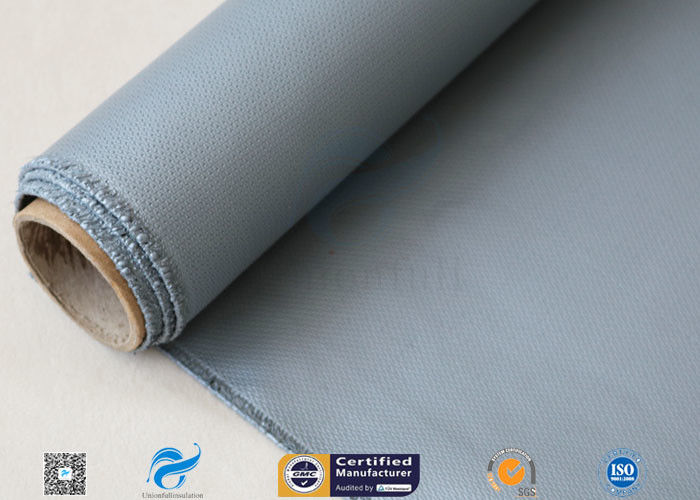

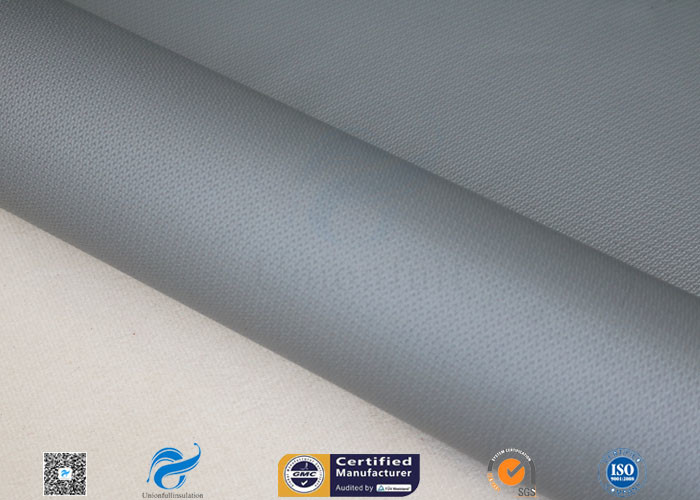

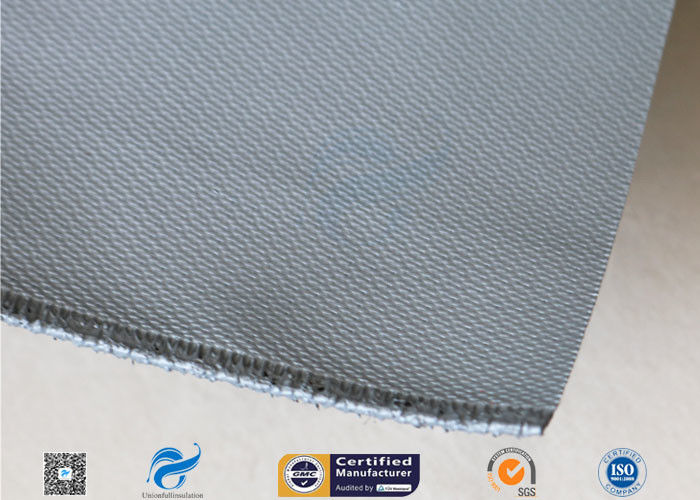

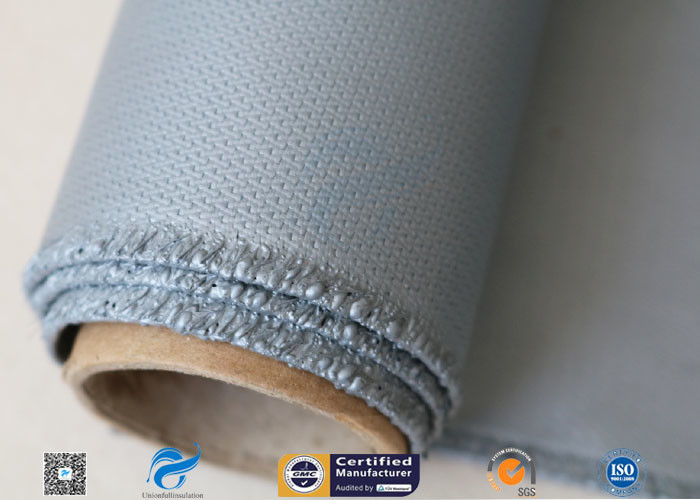

Pictures:
About Unionfull:
Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.
Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
