Waterproof Silicone Coated Fiberglass Fabric Superior Non Stick 40/40g 0.2mm

China Waterproof Silicone Coated Fiberglass Fabric Superior Non Stick 40/40g 0.2mm supplier
Waterproof Silicone Coated Fiberglass Fabric Superior Non Stick 40/40g 0.2mm supplier Waterproof Silicone Coated Fiberglass Fabric Superior Non Stick 40/40g 0.2mm supplier Waterproof Silicone Coated Fiberglass Fabric Superior Non Stick 40/40g 0.2mm supplier Waterproof Silicone Coated Fiberglass Fabric Superior Non Stick 40/40g 0.2mm supplier Waterproof Silicone Coated Fiberglass Fabric Superior Non Stick 40/40g 0.2mm supplier

Large Image :  Waterproof Silicone Coated Fiberglass Fabric Superior Non Stick 40/40g 0.2mm

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: UPSE-8628D80

Payment & Shipping Terms:

Minimum Order Quantity: 500mters
Price: $2~$3.2/ m2
Packaging Details: One roll in woven bag
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000m2 Per Day
Contact Now
Detailed Product Description
Weave: Plain Surface Treatment: Silicone Coating
Alkali Content: Alkali Free Width: 1.2m
Yarn: G75 1/0,G75 1/0 Coating: 40/40g

Superior Non-stick 40/40g 0.2mm Waterproof Silicone Coated Fiberglass Fabric

Unionfull Group Ltd has been researching & developing & manufacturing high-performance insulation materials since it was born in 2014. We supplier coated fiberglass cloth with varieties of coating material, coating weight, colors and widths for different application : construction, electronics, space flight, chemical engineering, welding curtains, packing etc.



Characteristics of silicone coated fiberglass fabric:
Lifetime: 10 years
Temperature tolerance: -70ºC to 280 ºC

Tensile strength:1600~3700N/50mm
Dielectric constant: 3-3.2
Breakdown voltage: 20-50KV/MM

Alkali content: Alkali free

Width:1000~1550mm



Data sheet:

Product Name



Silicone coated fiberglass fabric

Item Code



UPSE-8628D80
Material

40g silicon+210g fiberglass fabric+40g silicon

Total weight



280g/m2

Yarn type



Warp G75 1/0, Weft G75 1/0

Tensile strength



2000/1500 N/50mm

Temperature



280℃ Max

Width



1.2m
Performance Fireproof,waterproof,chemical resistant,heat resistant,high strength



Properties:

1.Superior chemical resistant

2.Moisture absorption rate: <5%

3.Constant size
The material of the fabric itself determines that it is not malleable and maintains a flatness for a long time

4.Insulation
Glass fiber sun fabric has good thermal insulation properties that other fabrics do not have, which greatly reduces the use rate of room air conditioners, thereby saving energy

5.Shade, light, ventilation
This fabric eliminates up to 80% of solar radiation, maintains indoor air circulation, and provides a clear view of the outdoor scene.

Main Application:
1.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.

2.Silicone fiberglass fabric can also be used as sealing material, temperature resistant and anti-corrosion conveyor belt and packaging material.
3.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.

4.Electrical insulation

Silicone rubber coated glass fiber membrane structural material, with high electrical insulation grade, can withstand high voltage load, can be made into insulation cloth, casing and other products.


Pictures:

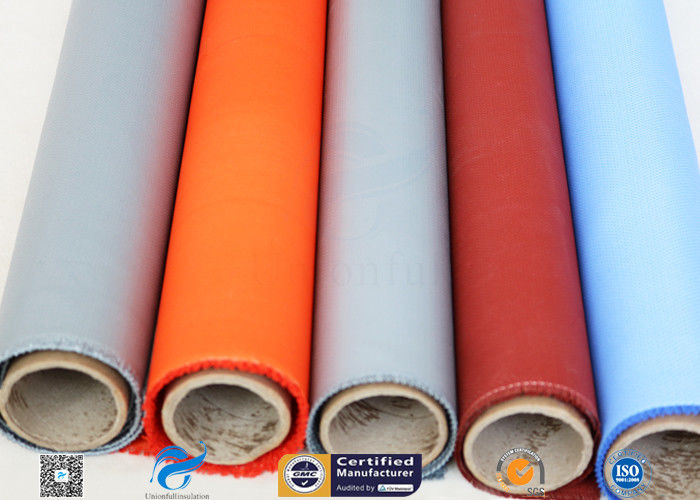

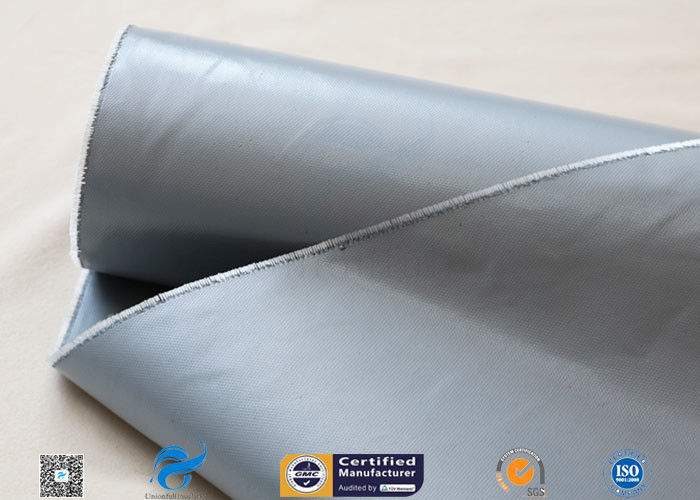

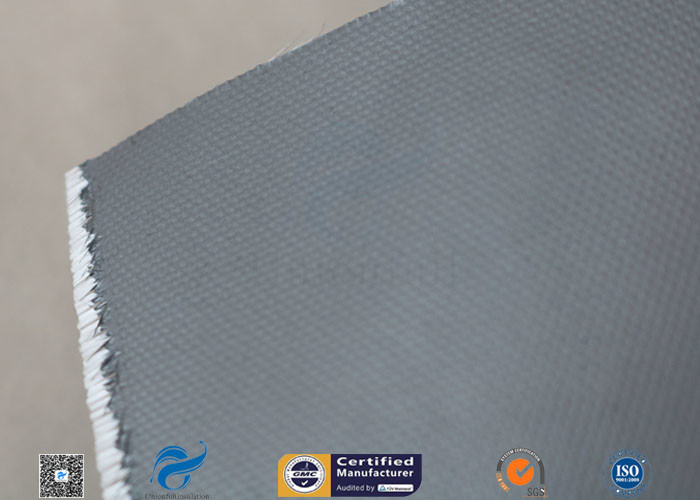

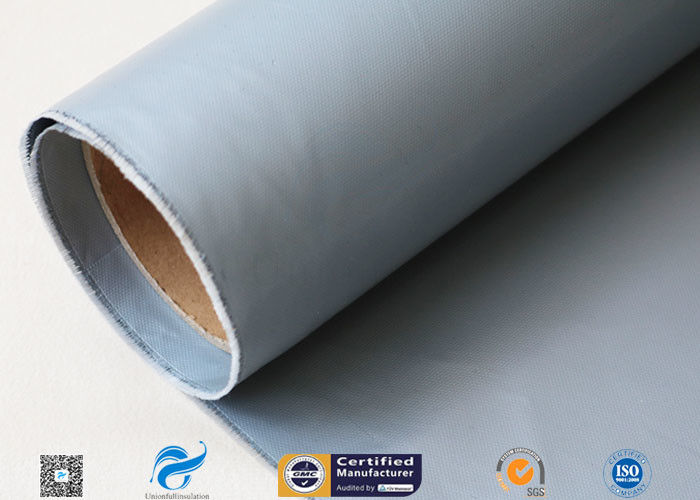

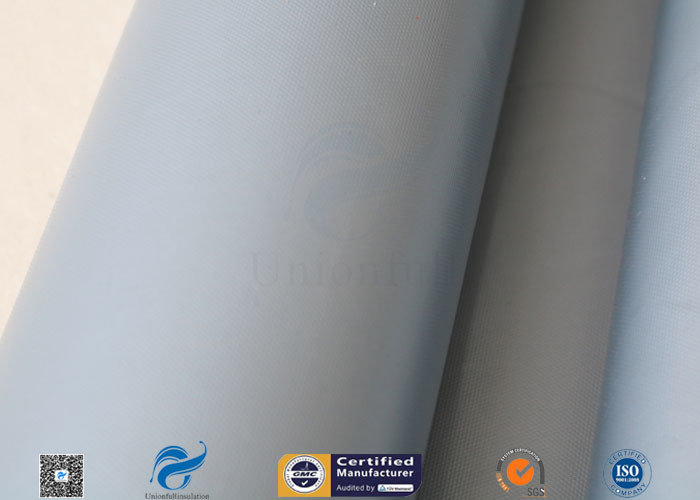

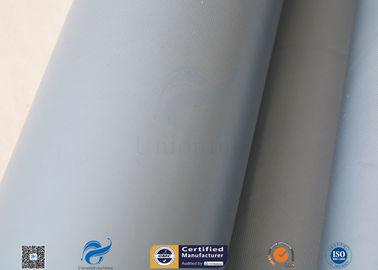

Waterproof Silicone Coated Fiberglass Fabric Superior Non Stick 40/40g 0.2mmWaterproof Silicone Coated Fiberglass Fabric Superior Non Stick 40/40g 0.2mm

About Unionfull:

Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.
Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
