Divisible 260℃ Double Side E Glass Fiber With Silicone Coating Plain Weave

China Divisible 260℃ Double Side E Glass Fiber With Silicone Coating Plain Weave supplier
Divisible 260℃ Double Side E Glass Fiber With Silicone Coating Plain Weave supplier Divisible 260℃ Double Side E Glass Fiber With Silicone Coating Plain Weave supplier Divisible 260℃ Double Side E Glass Fiber With Silicone Coating Plain Weave supplier Divisible 260℃ Double Side E Glass Fiber With Silicone Coating Plain Weave supplier Divisible 260℃ Double Side E Glass Fiber With Silicone Coating Plain Weave supplier

Large Image :  Divisible 260℃ Double Side E Glass Fiber With Silicone Coating Plain Weave

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: UPSE-8628D80

Payment & Shipping Terms:

Minimum Order Quantity: 500mters
Price: $2~$3.2/ m2
Packaging Details: One roll in woven bag
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000m2 Per Day
Contact Now
Detailed Product Description
Material: Fiberglass Fabric Coating Side: 2 Sides
Weave: Plain Surface Treatment: Silicone Coating
Alkali Content: Alkali Free Color: Gray
Yarn: G75 1/0,G75 1/0 Coating: 40/40g

Divisible 260℃ Double Side E-glass Fiber With Silicone Coating

The silicone rubber coated fiberglass fabric has been selling for 20 years. It can resist the aging caused by oxygen, light, ozone and the climate change within the temperature from -70 to 260 Celsius degree. Due to it’s high resistant performance,fiberglass fabric can be used more than 10 years in generally.

UPSE-8628D80 is weaved by plain weave which is consist of yarns interlaced in an alternating fashion, one over and one under every other yarn. The plain weave provides good fabric stability.



Specification:

Item No.



UPSE-8628D80

Weave type



Plain

Yarn warp/weft



G75 1/0,G75 1/0

Basic fabric



E-glass

Coating



40g/40g silicone rubber

Weight



280g/m2

Thickness



0.2mm

Temp. resistant



High to 260℃, 500℉
Low to -70℃,-100℉

Roll width



1270mm

Roll length



50m/100m

Flammability



≤25%

Package



Woven bag/Carton

Alkali content



Free



Main Specification:

  Base Cloth
(g/m2)
Weight(g/m2) Thickness(mm) Color Weaving
1 310/3731 520 0.4 Gray Twill
2 430/3732 580 0.4 Gray Satin
3 850/3784 1000 0.8 Gray Satin
4 880/3788 1600 1.2 Black Satin
5 880/3788 1600 1.2 Red Satin
6 880/3788 1550 1.1 Gray Satin
7 880/3788 1650 1.2 Black Satin
8 880/3788 2000 1.5 Red Satin

Note:Special specification also can be produced.



Properties:

1.High resistance to weathering and flexing

2.Superior chemical resistant

3.Excellent temperature resist, range from -100°F to +500°F

4.Moisture absorption rate: <5%

Main Application:
1.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.

2.Silicone fiberglass fabric can also be used as sealing material, temperature resistant and anti-corrosion conveyor belt and packaging material.
3.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.

4.Electrical insulation

Silicone rubber coated glass fiber membrane structural material, with high electrical insulation grade, can withstand high voltage load, can be made into insulation cloth, casing and other products.

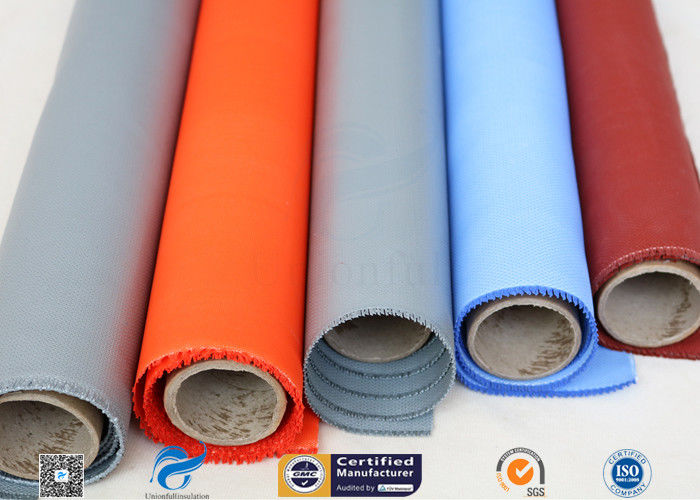

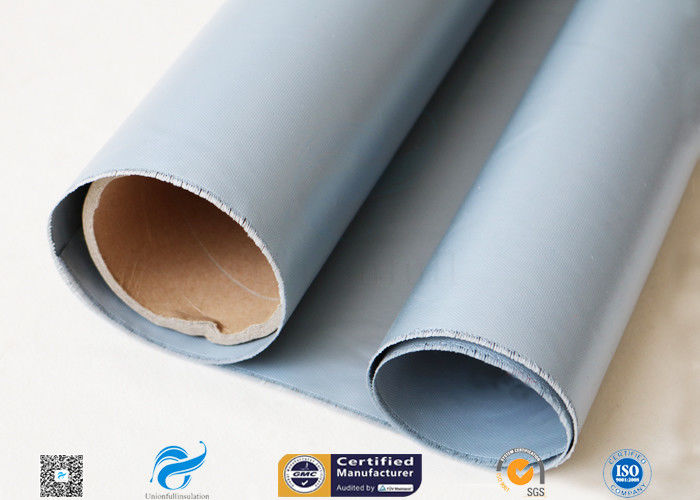

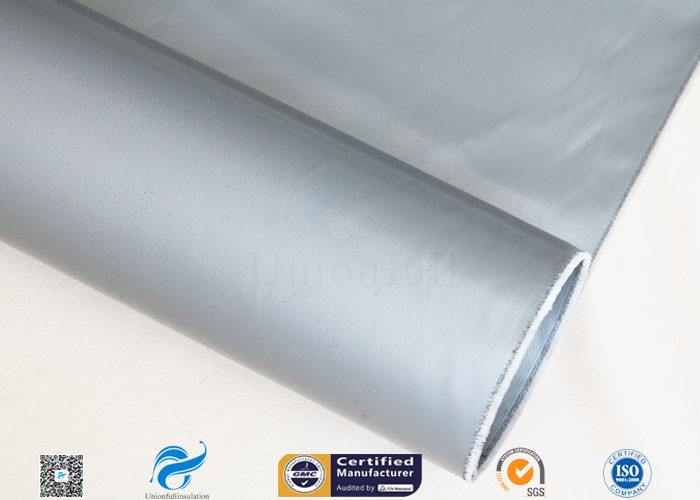

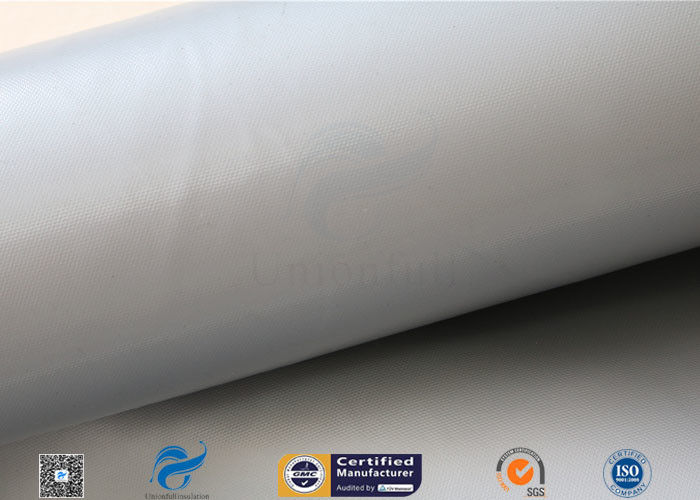

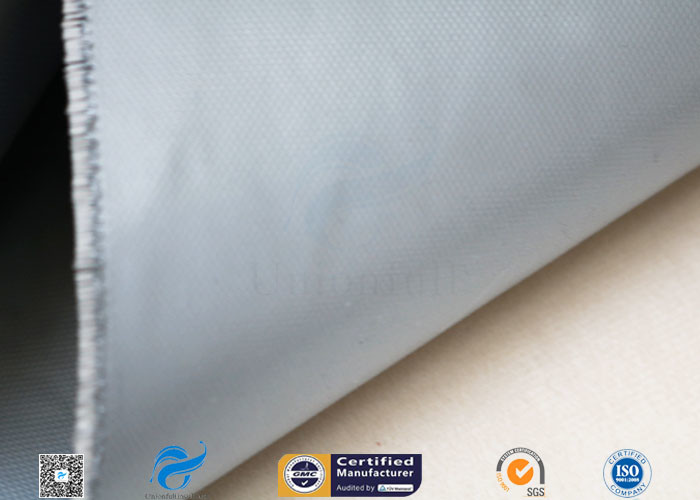

Pictures:
Divisible 260℃ Double Side E Glass Fiber With Silicone Coating Plain WeaveDivisible 260℃ Double Side E Glass Fiber With Silicone Coating Plain Weave

About Unionfull:
Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.
Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
