Payment & Shipping Terms:
|Material:||Fiberglass Fabric||Coating Side:||2 Sides|
|Weave:||Plain||Surface Treatment:||Silicone Coating|
|Alkali Content:||Alkali Free||Color:||Gray|
|Yarn:||G75 1/0,G75 1/0||Coating:||40/40g|

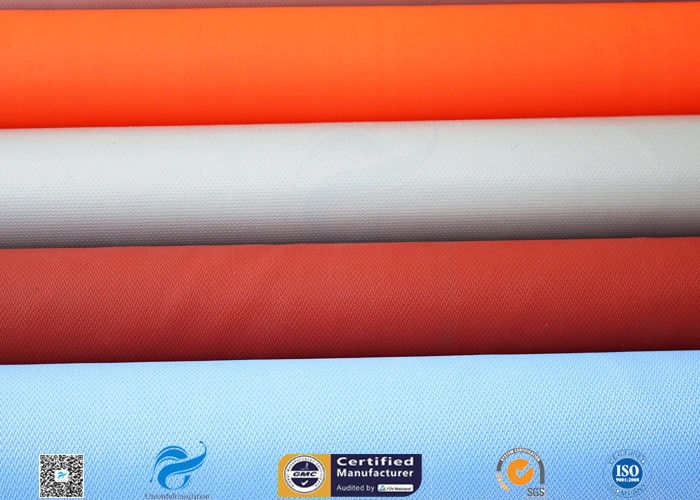

Unionfull offers different fiberglass fabric to meet variety applications among our customers. The fabric can be coated on different materials such as silicone,pu,acrylic,aluminium,ptfe etc. But the most popular product is silicone coated fiberglass fabric, as it has good performance at temperature resistant and flexible.

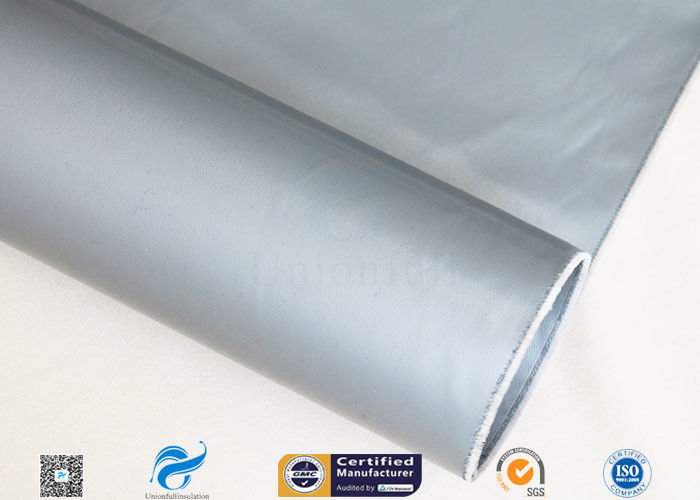

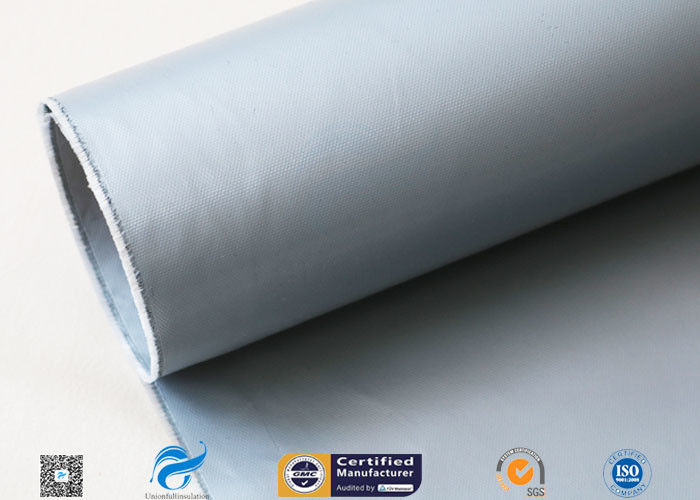

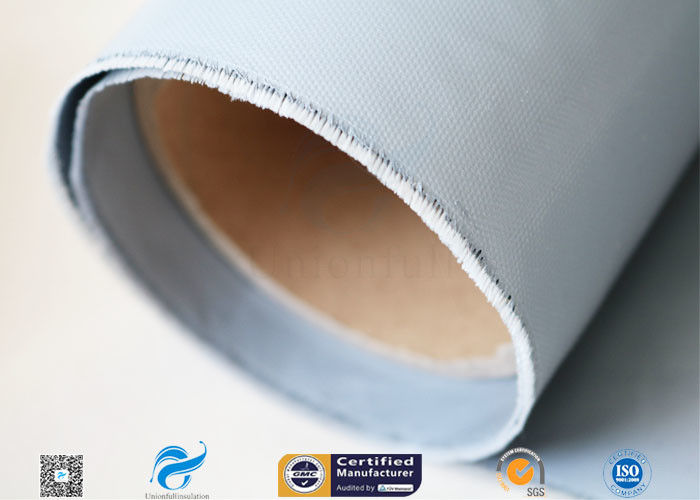

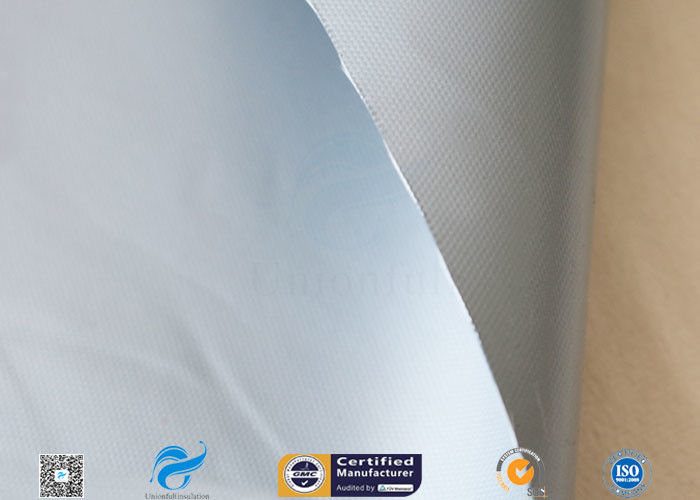

UPSE-8628D80 is coated with 40g silicone rubber on both sides, it can with stand of extreme temperature from -70~260℃ after coating. This type of fabric can be made into fire blanket,insulation jacket, welding curtain etc.
Technical data sheet:
|280g/m2||0.2mm||17.3/13 cm||G75 1/0,G75 1/0||Plain||≤25%|
Note:Special specification also can be produced.
1. Good performance on resisting high temperature and low temperature,can be with stand of -70℃ to 260℃
2. Ozone, oxide, light and weather aging resistance;
3. Fire resistant
4. High strength. Has good mechanical properties
5. Good chemical resistant, oil and water resistant
6. High softness
1.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.
2.Silicone fiberglass fabric can also be used as sealing material, temperature resistant and anti-corrosion conveyor belt and packaging material.
3.Silicone fiberglass fabric could be used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction. This membrane material specially fit for use in industries of petroleum, chemical engineering, cement, iron and steel and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.
Silicone rubber coated glass fiber membrane structural material, with high electrical insulation grade, can withstand high voltage load, can be made into insulation cloth, casing and other products.
Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.
Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
