Plain Weave Silicone Rubber Coated Fiberglass Fabric For Joint 260g

China Plain Weave Silicone Rubber Coated Fiberglass Fabric For Joint 260g supplier
Plain Weave Silicone Rubber Coated Fiberglass Fabric For Joint 260g supplier Plain Weave Silicone Rubber Coated Fiberglass Fabric For Joint 260g supplier Plain Weave Silicone Rubber Coated Fiberglass Fabric For Joint 260g supplier Plain Weave Silicone Rubber Coated Fiberglass Fabric For Joint 260g supplier Plain Weave Silicone Rubber Coated Fiberglass Fabric For Joint 260g supplier

Large Image :  Plain Weave Silicone Rubber Coated Fiberglass Fabric For Joint 260g

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: UPSE-8628D80

Payment & Shipping Terms:

Minimum Order Quantity: 500mters
Price: $2~$3.2/ m2
Packaging Details: One roll in woven bag
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000m2 Per Day
Contact Now
Detailed Product Description
Material: Fiberglass Fabric Coating Side: 2 Sides
Weave: Plain Surface Treatment: Silicone Coating
Alkali Content: Alkali Free Color: Gray

Plain Weave 260g Silicone Rubber Coated Fiberglass Fabric For Joint

Silicone coated fiberglass fabric which is produced by Uninofull present excellent performance in insulation filed: High dielectric strength,temperature

resistant,Anti-corrosion,fireproof,superior abrasion resistance,good heat insulation,good weather ability,etc.



Additional Specifications:

Width 1000mm-1540mm(40 - 60 inch)
Thickness 0.2mm-5mm(0.008 inch-0.19inch)
Weight 40 gsm-2000 gsm (1.18oz/yd2-59 oz/yd2)
Coating side One side coated, double coated
Color red, sliver gray, black, white, yellow, green and etc.
Package 50m/roll, 100m/roll
Weave pattern Plain/Satin/Twill



Data of UPSE-8628D40:

Surface treatment: Silicone coated

Basic fabric: Fiberglass fabric

Yarn Type:E-glass

Coating: 20g silicone rubber on both sides

Basic weight: 210g/m2 (6.2oz/yd2)

Total weight: 260g/m2 (7.6oz/yd2)

Thickness: 0.2mm (0.008inch)

Width: 1000mm (39inch)

Length: 50m/roll

Weave pattern: plain



Plain Weave:

The plain weave consist of yarns interlaced in an alternating fashion, one over and one under every other yarn. The plain weave provides good fabric stability.



Properties:

1.Low temperature to -70 °C and high temperature to 260℃

2.Insulation
Glass fiber sun fabric has good thermal insulation properties that other fabrics do not have, which greatly reduces the use rate of room air conditioners, thereby saving energy.

3.Constant size
The material of the fabric itself determines that it is not malleable and maintains a flatness for a long time.

4.Anti-ripper
It does not require reinforcement for natural tear resistance, has significant wind resistance and is subject to frequent mechanical properties.

Main Application:
 1.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.
2.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.

3.Daily life

Tennis rackets, fishing rods, bows and arrows, swimming pools, bowling places, etc. in daily life are also used.

4.Application in filtration: gas filtration and liquid filtration

5.In the transportation industry, buses, yachts, tankers, cars, etc. are used.

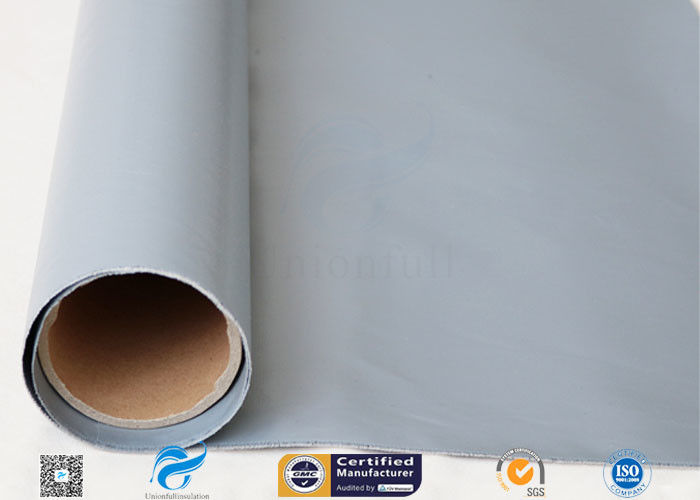

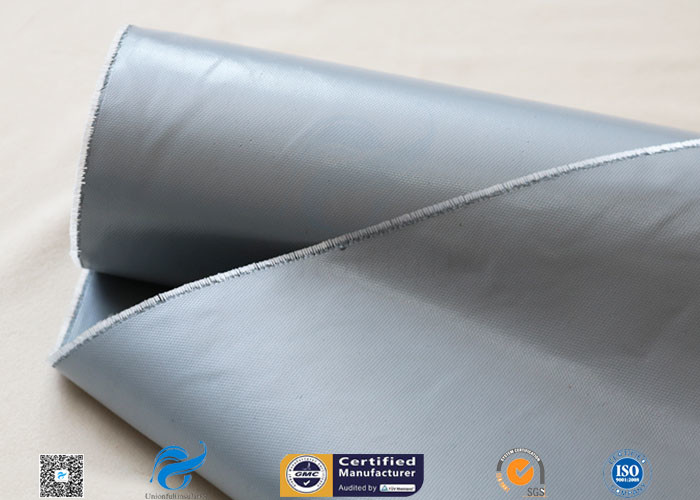

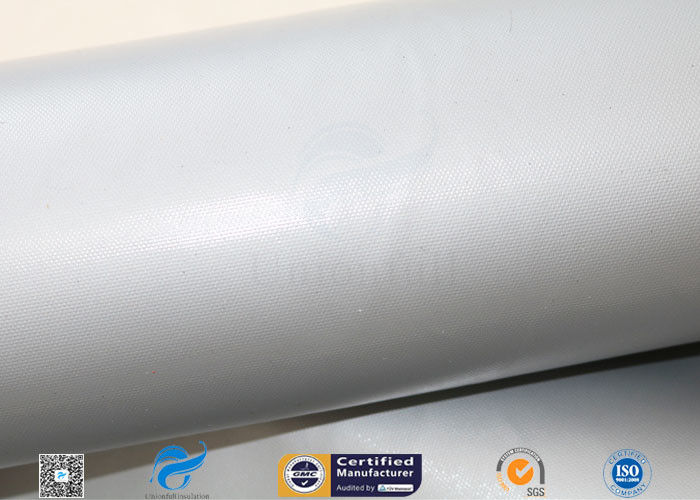

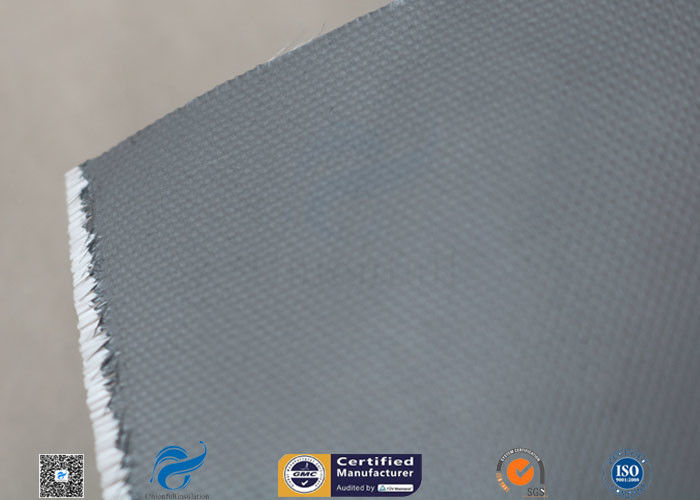

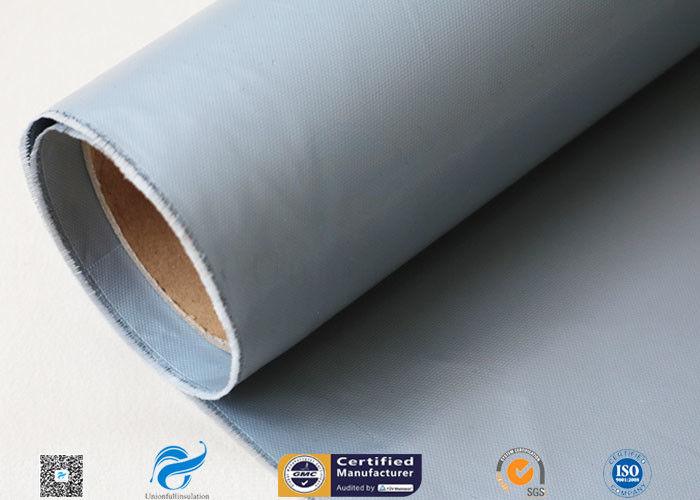

Pictures:
Plain Weave Silicone Rubber Coated Fiberglass Fabric For Joint 260gPlain Weave Silicone Rubber Coated Fiberglass Fabric For Joint 260g

About Unionfull:
Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.
Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
