E Glass Fiberglass Fabric Coated With Red Silicone High Temperature Resistance

China E Glass Fiberglass Fabric Coated With Red Silicone High Temperature Resistance supplier
E Glass Fiberglass Fabric Coated With Red Silicone High Temperature Resistance supplier E Glass Fiberglass Fabric Coated With Red Silicone High Temperature Resistance supplier E Glass Fiberglass Fabric Coated With Red Silicone High Temperature Resistance supplier E Glass Fiberglass Fabric Coated With Red Silicone High Temperature Resistance supplier

Large Image :  E Glass Fiberglass Fabric Coated With Red Silicone High Temperature Resistance

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008,SGS,TUV
Model Number: UPSE-8660D300

Payment & Shipping Terms:

Minimum Order Quantity: 500 m
Price: $4.85~6/m2
Packaging Details: 50 meters one roll in poly bag
Delivery Time: 15 working days after receiving the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 m2 per day
Contact Now
Detailed Product Description
Features: Corrosion Resistance/Acid Resistance /Moisture Resistance Material: Fireproof Covers
Keyword: Fiberglass Flame Retardant Fireproof Covers Yarn Type: E-Glass
Surface Treatment: Silicon Coated Standing Temperature: -70-260Degree
Tensile Strength: 2400/2200 N/50mm Flammability: ≤25%

High Temperature Resistance E-Glass Fibergass Fabric Coated With Red Silicone



Product Introduction



Glass fiber fabric coated with silicone rubber has a glass fiber woven substrate, one or both sides of which have been coated with siloxane. These fabrics exhibit fiber glass strength and tear resistance and provide excellent demoulding performance. Our silicone fabric releases a lot of the bonding material that would normally bond to PTFE. Our silicone fabric has high dielectric strength, abrasion resistance and bending resistance, and its operating temperature range is -70~+260℃. Silicone coatings have a high degree of chemical resistance and resistance to weak, non-oxidizing acids. All coatings of the above quality enable the fabric to be used in a wide range of industrial applications such as sealants; Rubber, salt, minerals and lubricants, air, moisture and sunlight. Distribution and split pages; Safety curtains; Contraction tunnel; Conveyor belt; Electrical insulation tape; Foam making.



Product Specification



Basic Fabric
Warp 16.5 end/cm
Weft 13.8 end/cm
Width 1500mm
Roll length 50m
Weight 660g/m2
Weave 8H Satin
After Coating
Impregnated Silicone
Color Red
Thickness 0.66mm
Weight 960g/m2
Temperature Resistance -70℃~260℃



Characteristic



1. Excellent release properties, high strength, tear resistance

2. High dielectric strength

3. High wear resistance and bending resistance

4. High chemical resistance, unaffected by weak alkaline, non-oxidizing acids, most salts, minerals and lubricants, air, moisture and sunlight

5. Operating temperature range from -70℃ to +260℃ non-toxic, odorless and tasteless.



Application



1. Electrical insulation: suitable for the production of insulation cloth and other products and sleeves.

2. The non-metallic compensator acts as a flexible coupling for the pipe, avoiding the damage caused by thermal expansion and contraction.

3. Used as inner and outer anti-corrosion layer, excellent performance, corrosion resistance, high temperature resistance and high strength.

4. Can also be used as sealing material, high temperature resistant and anticorrosive conveyor belt and packaging material.

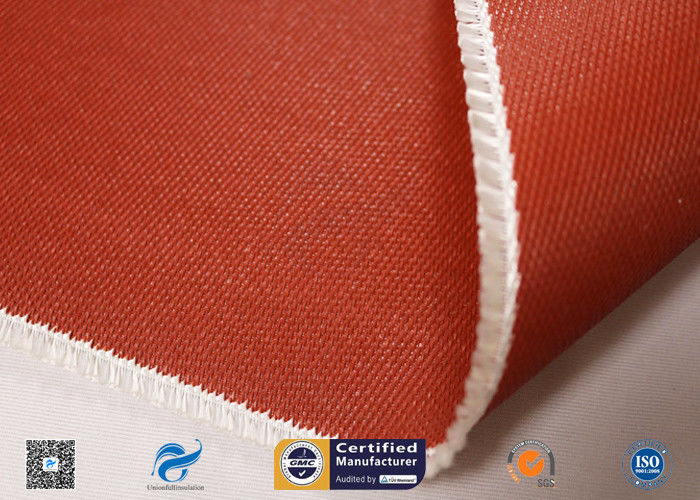

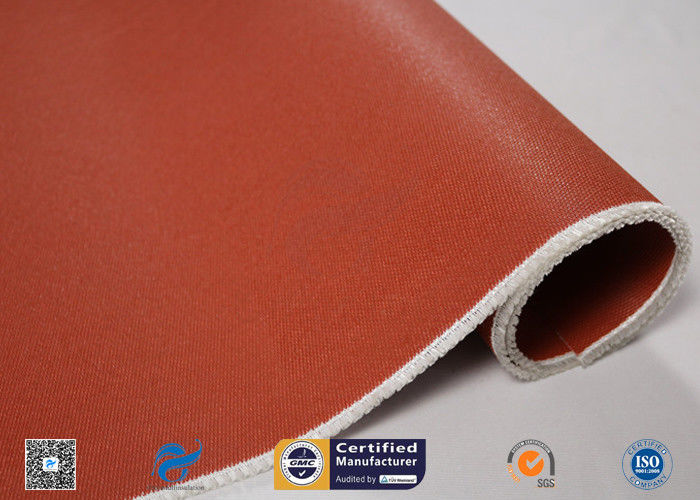

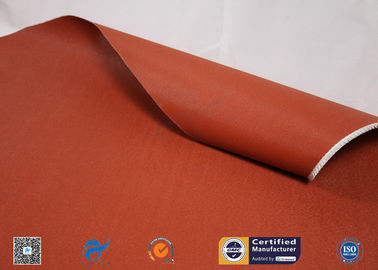

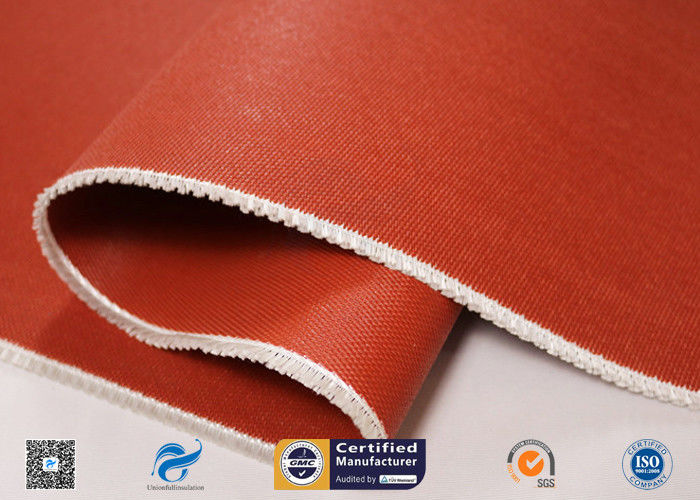

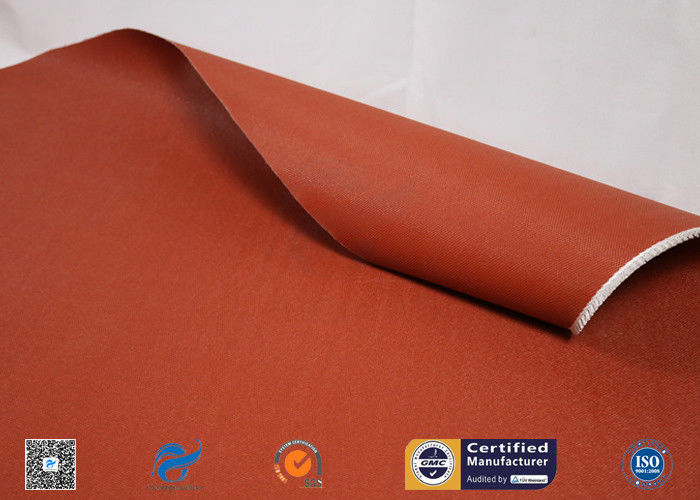

Pictures



E Glass Fiberglass Fabric Coated With Red Silicone High Temperature Resistance



E Glass Fiberglass Fabric Coated With Red Silicone High Temperature Resistance
