4HS Silicone Coated Fiberglass Cloth Reinforced Materials 1 Side 80g

China 4HS Silicone Coated Fiberglass Cloth Reinforced Materials 1 Side 80g supplier
4HS Silicone Coated Fiberglass Cloth Reinforced Materials 1 Side 80g supplier 4HS Silicone Coated Fiberglass Cloth Reinforced Materials 1 Side 80g supplier 4HS Silicone Coated Fiberglass Cloth Reinforced Materials 1 Side 80g supplier 4HS Silicone Coated Fiberglass Cloth Reinforced Materials 1 Side 80g supplier 4HS Silicone Coated Fiberglass Cloth Reinforced Materials 1 Side 80g supplier

Large Image :  4HS Silicone Coated Fiberglass Cloth Reinforced Materials 1 Side 80g

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: UPSE-8732S80

Payment & Shipping Terms:

Minimum Order Quantity: 500mters
Price: $2.3~$3.88/ m2
Packaging Details: One roll in woven bag
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000m2 Per Day
Contact Now
Detailed Product Description
Material: Fiberglass Fabric Width: 1000mm
Thickness: 0.43mm Coating Side: 1 Side
Weave: Satin Surface Treatment: Silicone Coating

4HS Reinforced Materials 1 Side 80g Silicone Coated Fiberglass Cloth



Description:
Silicone coated fiberglass fabric is a fiberglass cloth, which possesses the properties of temperature resistance, anti-corrosion, high strength and is coated with organic silicone rubber.

Properties:
1, Outstanding temperature resistance range from -70°C to +260°C
2, High strength;Dimensional stability
3, Resistance to UV, IR and HF
4, Superior non-stick surface, easy to clean
5, Chemical corrosion resistant, oil-proofing, waterproofing (washable)

Technical Data Sheet:


Code



Weight
g/m2



Weave
Pattern



Thread count
per cm
Yarn
Warp Weft Warp Weft
3732 430 Satin 19.6 15 G37 1/0 G37 1/0
3784 860 Satin 45 36 G37 1/2 G37 1/2
3786 1260 Satin 43 35 G37 1/4 G37 1/4
3788 1680 Satin 42 36 G37 1/4 G37 1/4
666 650 Satin 16 15 G75 1/3 G75 1/3


Description of UPSE-8732S80:

Product name


Silicone coated fiberglass fabric

Item No.


UPSE-8732S80

Coating


Silicone rubber

Area weight


510g/m2,14oz/yd2

Weave


4HS

Thread Count in Warp


19.6 ends/Cm

Thread Count in Weft


15 ends/Cm

HS code


70199090

Package


Woven bag/carton

Length


50m/roll


4HS weave: also called Four-Harness Satin
In this weave pattern there is a three by one interlacing, where a fill yarn floats over three warp yarns and under one.
Compared with plain weave and twill weave, it is of high density,high intensity, with a soft and loose structural weave with a good texture. It is applicable for use as a higher reinforced material in machinery.


Main Application:
1.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.
2.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.
3.Glass fiber cloth is mostly used in hand lay-up process. Glass fiber cloth is mainly used in hull, storage tank, cooling tower, ship, vehicle, tank and so on.

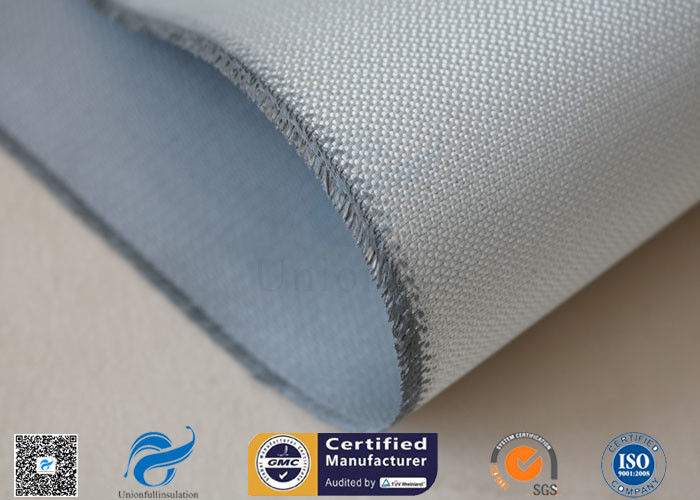

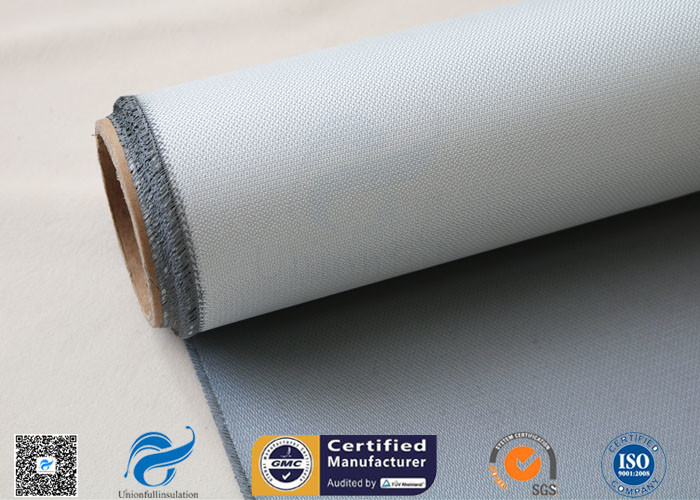

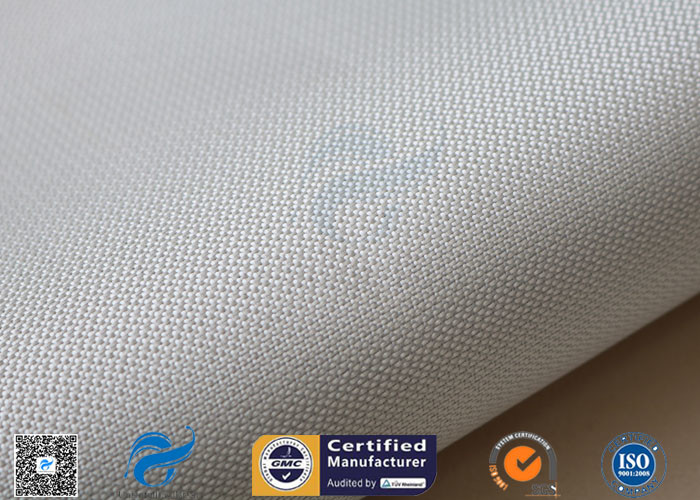

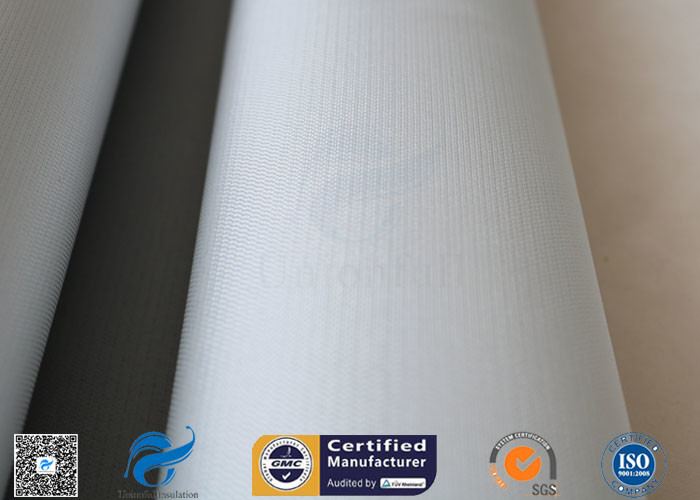

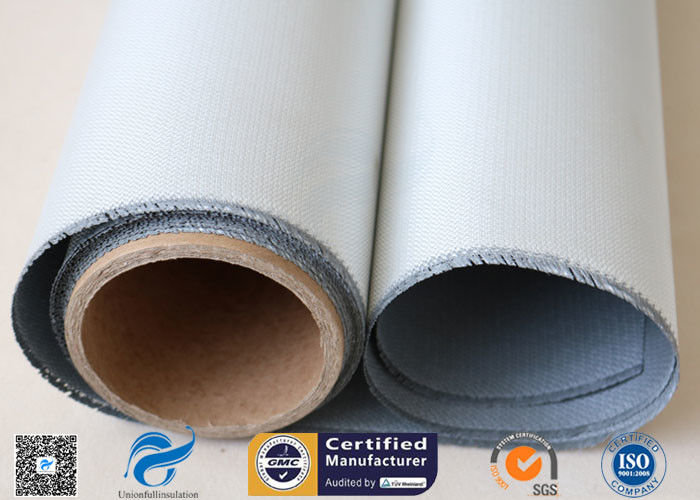

Pictures:

4HS Silicone Coated Fiberglass Cloth Reinforced Materials 1 Side 80g4HS Silicone Coated Fiberglass Cloth Reinforced Materials 1 Side 80g

About Unionfull:
Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.
Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
