Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008; SGS;TUV |
Model Number: | UPSE-8732D160 |
Minimum Order Quantity: | 500mters |
Price: | $2.55~$3.88/ m2 |
Packaging Details: | One roll in woven bag |
Delivery Time: | 10 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 30000m2 Per Day |
Material: | Fiberglass Fabric | Roll Size: | 1.55*50m |
---|---|---|---|
Yarn Type: | E-glass | Thickness: | 0.45mm |
Breaking Strength: | 2000/1600 N/50mm | Coating Side: | 2 |
Weave: | Satin | Surface Treatment: | Silicone Coating |
High Light: | silicone coated glass cloth,silicone coated fiberglass cloth |
Description:
Silicone coatings are highly resistant to chemical attack and are protected from mild, non-oxidizing acids, most salts, minerals and lubricants, air, moisture and sunlight. All of the above quality of the coating enables the fabric to be used in a wide range of industrial applications, such us: Gasket, Fireproof Curtains; Shrink Tunnels; Conveyor Belts; Electrical Insulation Tapes; Foam Manufacturing
As an ideal engineering material in construction, glass fiber cloth is mainly used to reinforce cement, roofing, wall materials, stone etc. Unionfull can produce any size according to customer's requirements like width and weight per square meter. Our product quality is guaranteed as approved by SGS, TUV, and we are the winner of the IMO rules.
Data sheet of Silicone Coated Fiberglass Fabric:
Material | Model No. | Thickness mm | Tensile Strength | bursting strength | combustible | Width mm |
Silicone coated fiberglass fabric | UPSE-8628S40 | 0.25 | 1800/1500 | 2.1 | ≤25% | 0-1500 |
UPSE-8732S80 | 0.40 | 2000/1600 | 2.2 | ≤25% | 0-1500 | |
UPSE-8732S40 | 0.50 | 2000/1600 | 2.3 | ≤25% | 0-1500 | |
UPSE-8660S100 | 0.60 | 2400/2200 | 2.4 | ≤25% | 0-1500 | |
UPSE-8660D200 | 0.70 | 2400/2200 | 2.4 | ≤25% | 0-1500 | |
UPSE-8784S100 | 0.85 | 2600/2400 | 2.5 | ≤25% | 0-1500 | |
UPSE-8784D200 | 0.90 | 2600/2400 | 2.5 | ≤25% | 0-1500 | |
UPSE-8788S150 | 1.80 | 3700/3000 | 2.3 | ≤25% | 0-1500 | |
UPSE-8788D300 | 1.85 | 3700/3000 | 2.2 | ≤25% | 0-1500 |
Features:
Excellent release properties High strength and tear resistance
High dielectric strength
High resistance to wear and flexing
Working temperature range can be from -70℃ to +260℃
Non-toxic odorless and tasteless
Chemical corrosion resistant
oil-proofing, waterproofing
Main Application:
1.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.
2.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.
3.Glass fiber cloth is mostly used in hand lay-up process. Glass fiber cloth is mainly used in hull, storage tank, cooling tower, ship, vehicle, tank and so on.

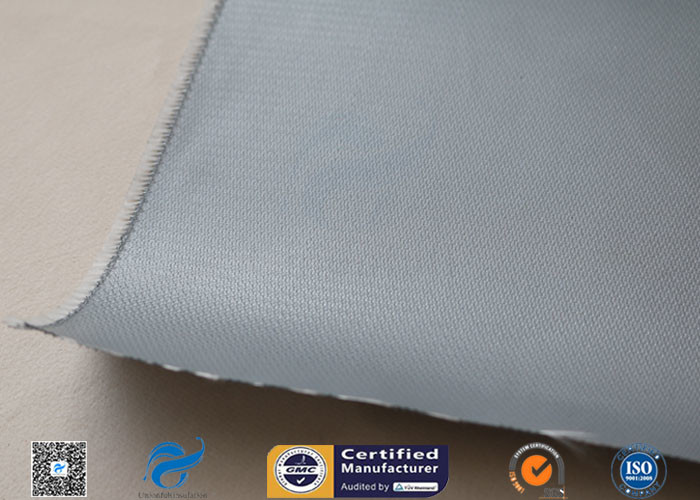

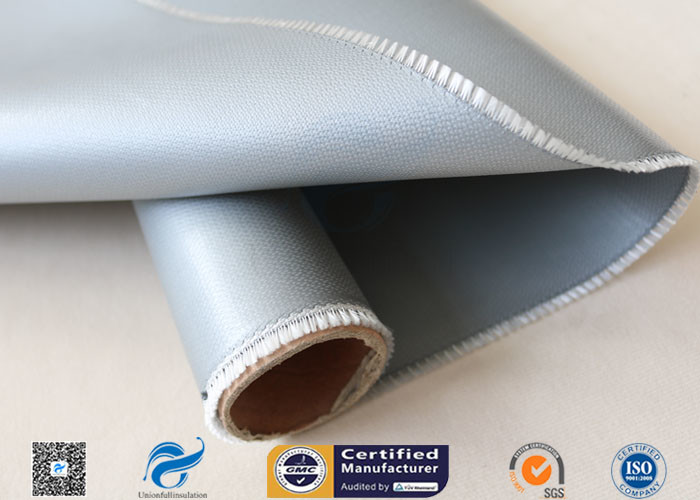

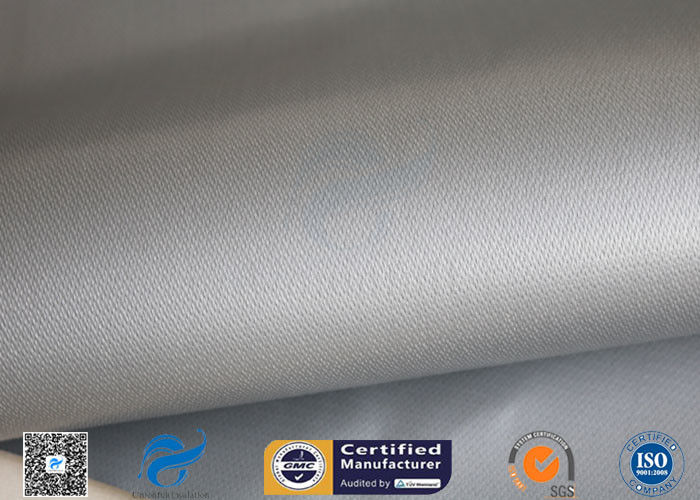

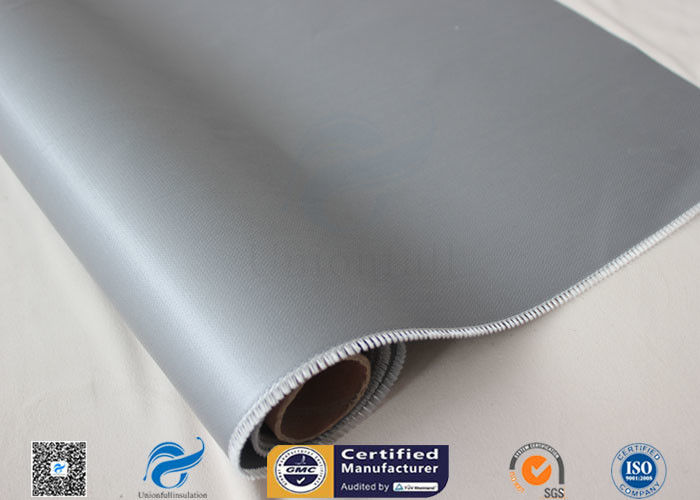

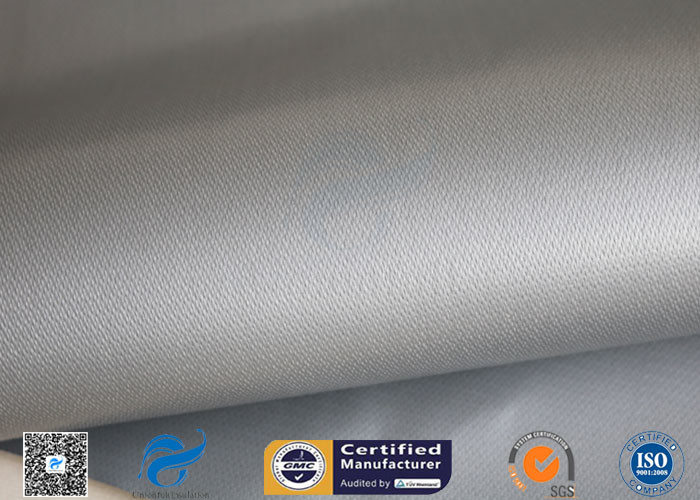

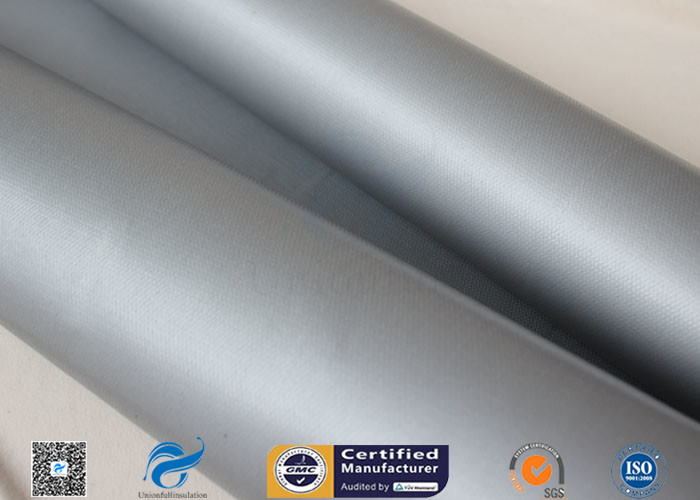

Pictures:
About Unionfull:
Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.
Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
