Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008; SGS;TUV |
Model Number: | UPSE-8732D160 |
Minimum Order Quantity: | 500mters |
Price: | $2.6~$4.8/ m2 |
Packaging Details: | One roll in woven bag |
Delivery Time: | 10 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 30000m2 Per Day |
Material: | Fiberglass Fabric | Roll Size: | 1*50m |
---|---|---|---|
Yarn Type: | E-glass | Thickness: | 0.45mm |
Breaking Strength: | 2000/1600 N/50mm | Coating Side: | 2 |
Weave: | Satin | Surface Treatment: | Silicone Coating |
Highlight: | silicone coated glass cloth,silicone coated fiberglass cloth |
Description:
Silicone coated fiberglass fabric has varieties advantages like: high mechanical strength,good heat and color resistance,good sealing property,resistance to many common chemical&aging
These fabrics exhibit the strength and tear resistance of the glass fibers, as well as provide excellent mold release properties. A lot of adhesive material, usually glued to PTFE, will be released from our silicone fabric. Unionfull’s silicone fabric has high dielectric strength, abrasion resistance and bending resistance, and its operating temperature range is -100 ° F to + 500 ° F.
UPSE-8732D80 is one of our main product, and also is the hot-sale among variety size as it can meet most of the industries’ demand.
Data sheet of UPSE-8732D160:
Weight |
590 g/m2 |
Thickness |
0.45 mm |
Width
|
1000mm 1270mm 1540mm |
Coated
|
Silicone 2 sides |
Tensile strength
|
2000/1600(N/50mm) |
Working temperature | Basic fabric 550 ºC, Silicone coating 260 ºC. |
Pattern
|
Satin |
Yarn warp
|
ECG37 1/0 |
Yarn weft
|
ECG37 1/0 |
Construction warp
|
19.6±1 ends/cm |
Construction weft
|
15±1 ends/cm |
Yarn Type
|
E -Glass |
Features:
Heat resistant
Chemical resistant
Superior abrasion resistance
Good heat insulation
Good chemical resistance
Good weather ability
Main Application:
1.High temperature gas,liquid,dust filter
2.Fireproof material (fireproof clothing,fire resisting curtain and so on)
3.Welding heat insulation protection material
4.Noise reduction,insulation exhaust filter of the auto and motorcycle
5.Heat-preservation and ablation materials of the rockets, missile and spacecraft

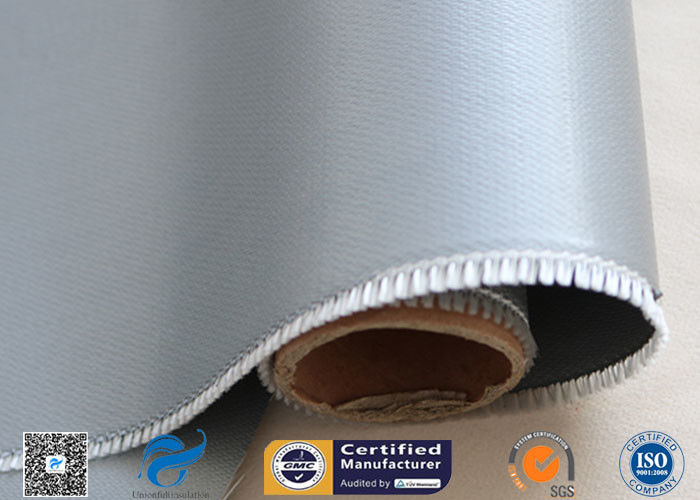

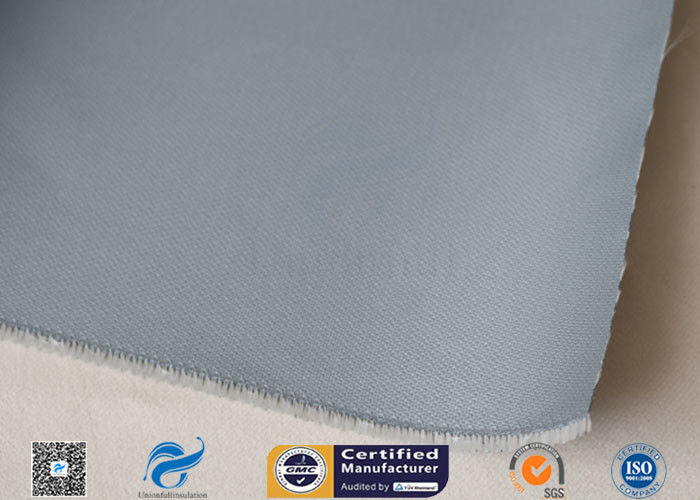

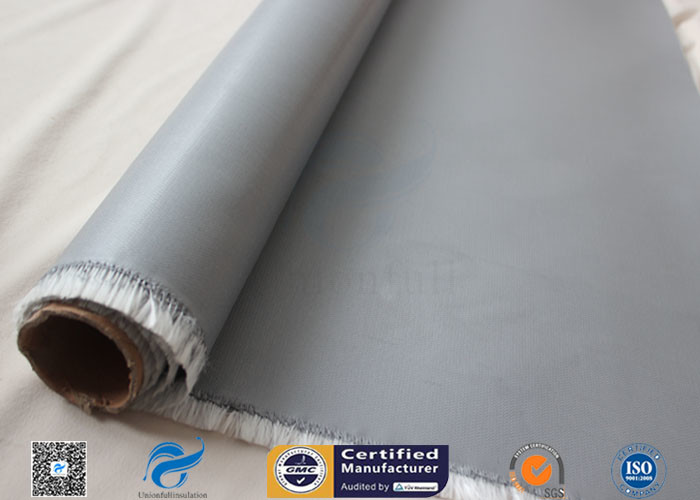

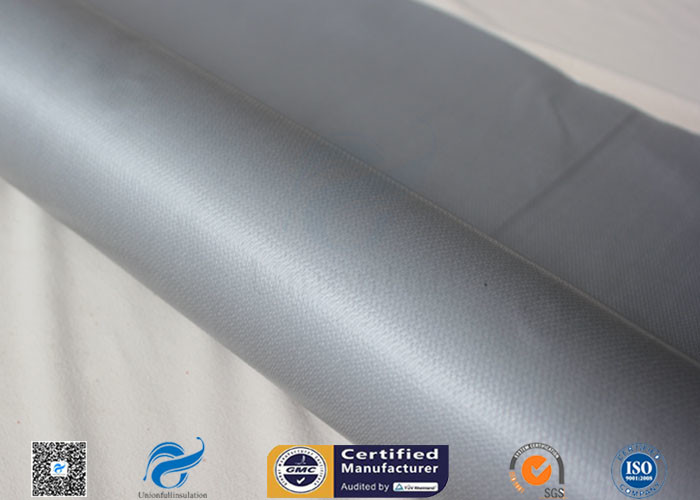

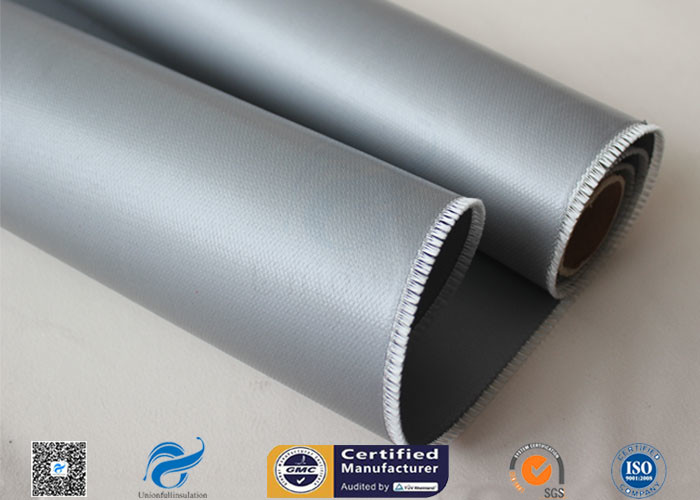

Pictures:
About Unionfull:
Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.
Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
