Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008; SGS;TUV |
Model Number: | UPSE-8732D80 |
Minimum Order Quantity: | 500mters |
Price: | $2.35~$3.88/ m2 |
Packaging Details: | One roll in woven bag |
Delivery Time: | 10 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 30000m2 Per Day |
Material: | Fiberglass Fabric | Width: | 1000mm |
---|---|---|---|
Color: | Gray | Thickness: | 0.43mm |
Yarn Type: | E-glass | Coating Side: | 1 Or 2 |
Highlight: | silicone coated glass cloth,silicone coated fiberglass cloth |
Description:
Silicone Coated Fiberglass is made of good fiberglass basic fabrics coated with specially compounded liquid silicone rubber on one or both sides.
It has such advantages as high strength, fire retardant, high temperature resistance,oil resistance,water proof,chemical resistance,none-penetrative, non-toxic and so on.
Fiberglass fabric is ideal cloth that are used in demanding temperature applications throughout industrial insulation market. They are easy to fabricate and remains flexible after high temperature exposure and provides excellent protection from molten metal splash. Silicone coated fiberglass fabric has a lot of applications ranging from welding to metal cutting applications.
Specification:
Item No. | Thickness | Width | Color | Coating | Area Weight |
UPSE-8628D120 | 0.22mm | 1000/1270/1540mm | Grey | 60gx2 side | 330 g/m2 /9.7oz/yd2 |
UPSE-8732S80 | 0.43 mm | 1000/1270/1540mm | Grey/Red | 80gx1 side | 510 g/m2 /15oz/yd2 |
UPSE-8732D120 | 0.45 mm | 1000/1270/1540mm | Grey/Red | 60gx2 side | 560 g/m2 /16.5oz/yd2 |
UPSE-8660S150 | 0.68mm | 1000/1270/1540mm | Grey/Red/Black | 150gx1 side | 810 g/m2 /23.8oz/yd2 |
UPSE-8660D150 | 0.70mm | 1000/1270/1540mm | Grey/Red | 150gx2 side | 960 g/m2 /28oz/yd2 |
UPSE-8660D300 | 0.80mm | 1000/1270/1540mm | Grey/Red | 300gx2 side | 1260 g/m2 /37oz/yd2 |
UPSE-8784D300 | 0.90 mm | 1000/1270/1540mm | Red, grey | 150gx2 side | 1150 g/m2 /34oz/yd2 |
Characteristics:
Silicone fiberglass cloth is engineered to retain the distinctive properties of silicone, and adding a glass fabric to the matrix enable it to obtain the added benefits of dimensional stability, durability, excellent tensile strength and low elongation. In addition, it can operate in temperatures from -94°F to +500°F (-70°C to +260°C).
Features:
1.Durable, abrasion resistant
2.Easy to be cut, sewn
3.Good heat insulation
4.Good chemical resistance
5.Superior abrasion resistance
6.Good weather ability
7.Non-adhesive, not easy to adhere to any substance
Main Application:
-Gasket and for packaging, food, printing, chemical and rubber industries
-Removable insulation jackets
-Reinforced construction material
-Fabric duct-work connector
-Fire curtains
-Welding blankets
-Sealing Material

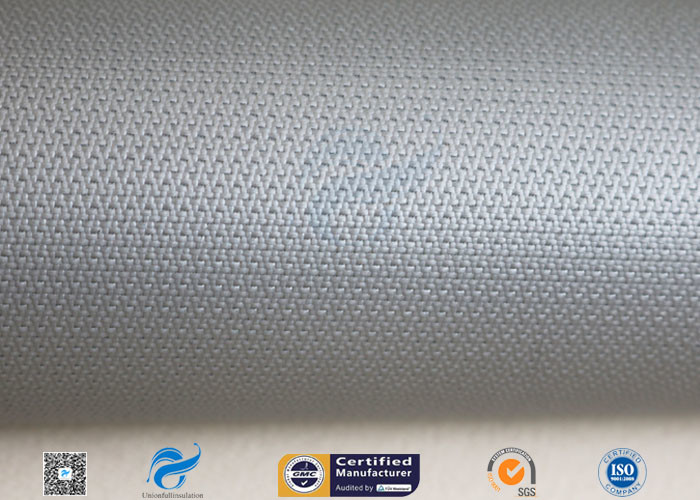

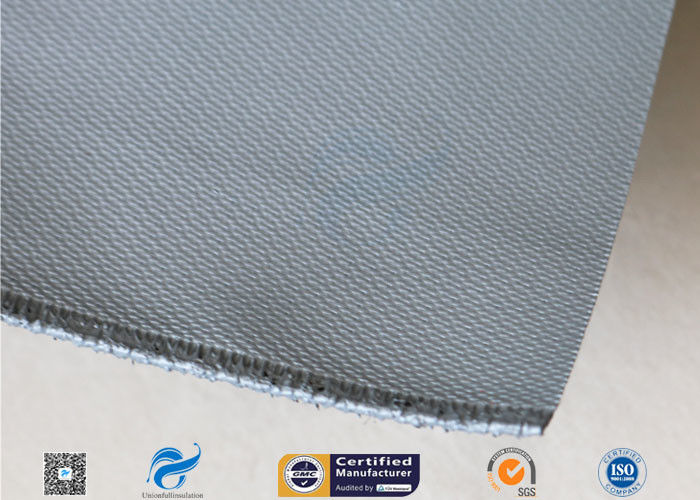

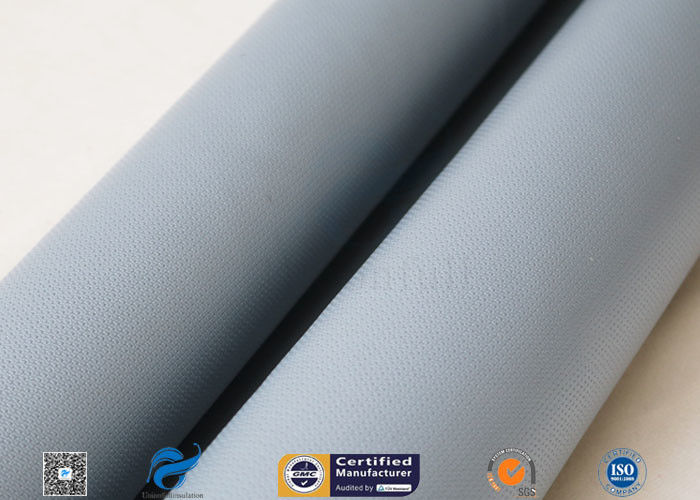

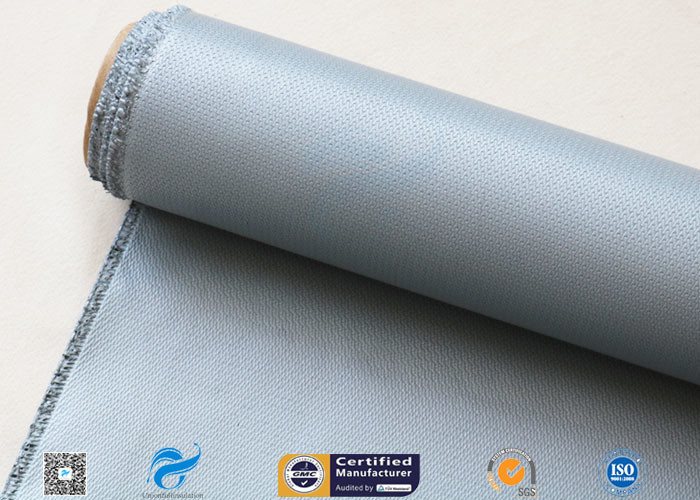

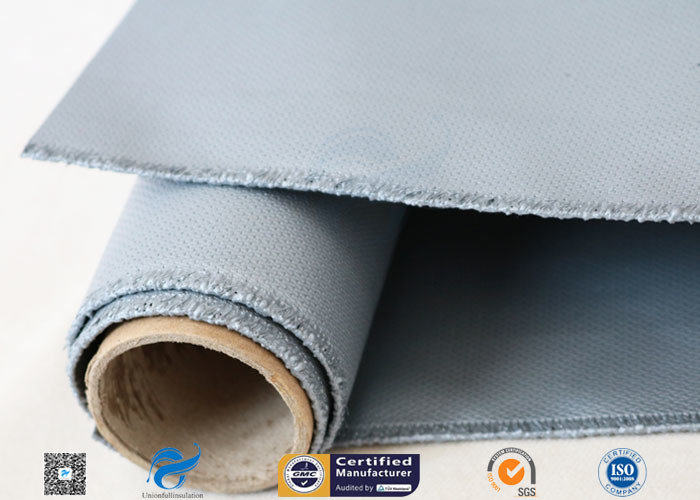

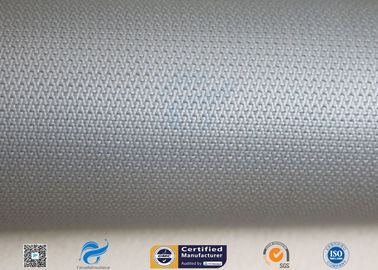

Pictures:
About Unionfull:
Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.
Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
