Satin Weave Silicone Coated Fiberglass Fabric 40/40g Gray Color 1m Width

China Satin Weave Silicone Coated Fiberglass Fabric 40/40g Gray Color 1m Width supplier
Satin Weave Silicone Coated Fiberglass Fabric 40/40g Gray Color 1m Width supplier Satin Weave Silicone Coated Fiberglass Fabric 40/40g Gray Color 1m Width supplier Satin Weave Silicone Coated Fiberglass Fabric 40/40g Gray Color 1m Width supplier Satin Weave Silicone Coated Fiberglass Fabric 40/40g Gray Color 1m Width supplier Satin Weave Silicone Coated Fiberglass Fabric 40/40g Gray Color 1m Width supplier

Large Image :  Satin Weave Silicone Coated Fiberglass Fabric 40/40g Gray Color 1m Width

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: UPSE-8732D80

Payment & Shipping Terms:

Minimum Order Quantity: 500mters
Price: $2.35~$3.6 / m2
Packaging Details: One roll in woven bag
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000m2 Per Day
Contact Now
Detailed Product Description
Material: Fiberglass Fabric Surface Treatment: Silicone Coating
Total Weight: 510g/m2 Width: 1000mm
Length: 50m Per Roll Thickness: 0.43mm
Yarn Type: E-glass Weave: Satin

Satin Weave 40/40g Gray Color 1m Width Silicone Coated Fiberglass Fabric

Description:

Unionfull offers colored silicone coated fabric with varieties of coating weight, colors and widths for different customers.

Silicone rubber coated fabric is a kind of high performance and multi-function composite materials which is made of E-glass fabric.

It is an engineering material with outstanding performance: non-flammable , anti-corrosion , high temperature resistance, high strength etc.



Characteristic:

Product Name


Silicone coated fiberglass fabric

Weave



Plain/Twill/Satin

Weight(gsm)


420g~1600g

Thickness



0.45mm~1.2mm

Width



1.1m,1.2m,1.55m

Coating Side



1 or 2

Surface Treatment



Silicone rubber coated

Color



red,gray,black,blue,etc

Temperature Resistance



-70~260ºC

Roll Length



50m



Data Sheet of UPSE-8732D80:

Type: E-glass

Coating: 40/40g each side

Structure: silicone+glass fiber+silicone

Weight:510g/m2

Flammability:≤25%

Strength: 2000/1600 N/50mm

Thickness:0.45mm

Weave: Satin



Advantage

-Fire resistance

-Non adhesive

-High Temp. resistance from -70C to +260ºC

-Good weather ability

-Antistatic
It does not adsorb solid particles in the air and does not adhere to dust, which can effectively reduce the amount of dust.

-Constant size
The material of the fabric itself determines that it is not malleable and maintains a flatness for a long time

-Anti-ripper
It does not require reinforcement for natural tear resistance, has significant wind resistance and is subject to frequent mechanical properties.



Main Application:

1.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.

2.Anti-corrosion. With excellent anti-corrosive property, silicone coated glass fabric can be used as protection coating on pipe and saving box.
3.Non-metallic compensator. Silicone coated glass fabric can be produced as soft connecting part of pipe to avoid pipe broken caused by thermal expansion and contraction. With properties of thermal insulation, anti-corrosion, anti-aging and soft, silicone coated glass fabric is widely used in fields like oil, chemical industry, cement and energy sources.

4.Other fields. Silicone coated glass fabric can also be used as sealing material, building reinforced material, high temperature corrosion resistant conveyor belt, packing material, etc.

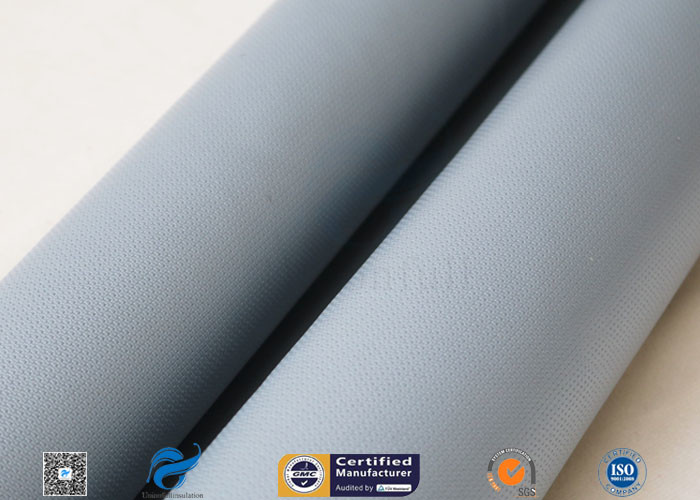

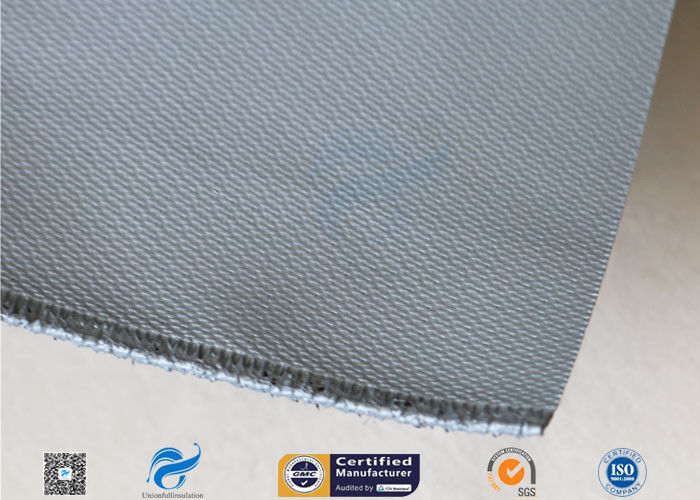

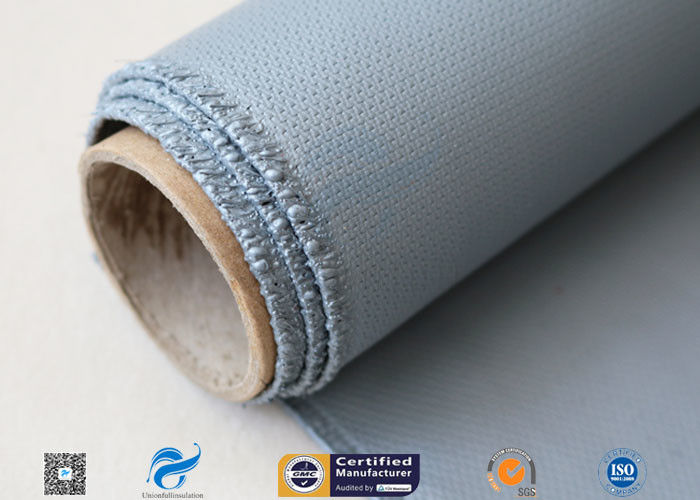

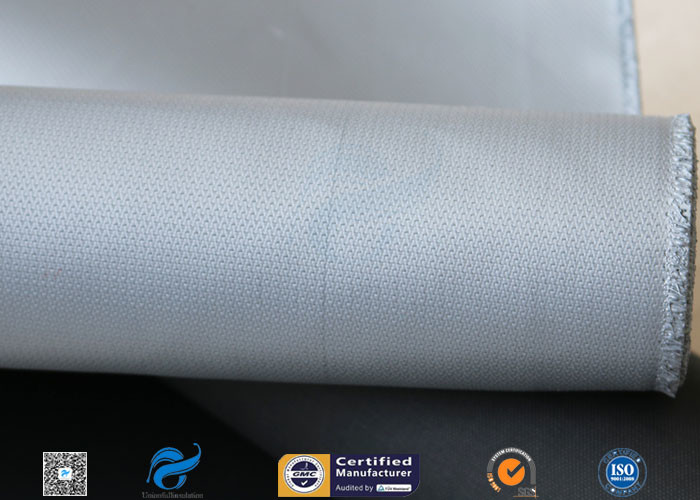

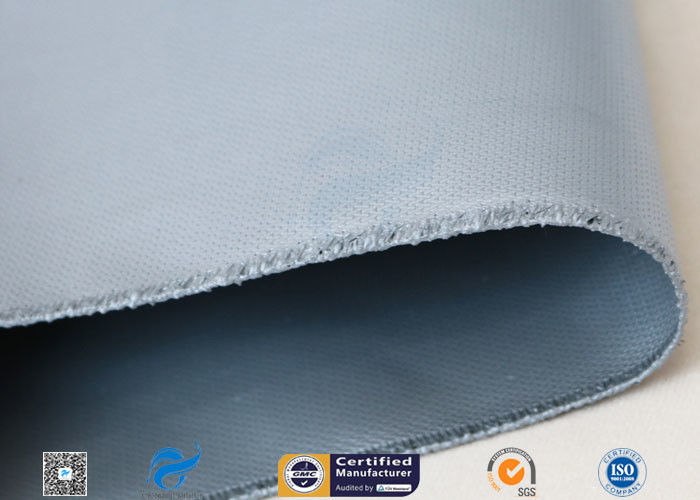

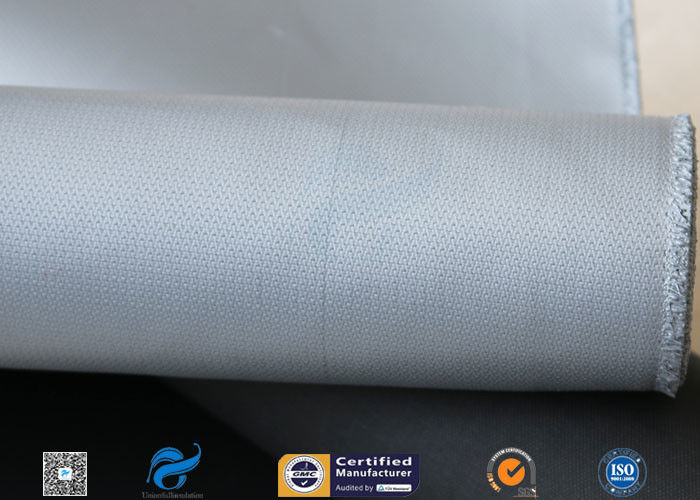

Pictures:

Satin Weave Silicone Coated Fiberglass Fabric 40/40g Gray Color 1m WidthSatin Weave Silicone Coated Fiberglass Fabric 40/40g Gray Color 1m Width



About Unionfull:

Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.

Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
