17oz Double Sided Silicone Coating Fiberglass Fabric Anti Fire Satin Weave

China 17oz Double Sided Silicone Coating Fiberglass Fabric Anti Fire Satin Weave supplier
17oz Double Sided Silicone Coating Fiberglass Fabric Anti Fire Satin Weave supplier 17oz Double Sided Silicone Coating Fiberglass Fabric Anti Fire Satin Weave supplier 17oz Double Sided Silicone Coating Fiberglass Fabric Anti Fire Satin Weave supplier 17oz Double Sided Silicone Coating Fiberglass Fabric Anti Fire Satin Weave supplier 17oz Double Sided Silicone Coating Fiberglass Fabric Anti Fire Satin Weave supplier

Large Image :  17oz Double Sided Silicone Coating Fiberglass Fabric Anti Fire Satin Weave

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: UPSE-8732D160

Payment & Shipping Terms:

Minimum Order Quantity: 500mters
Price: $2.35~$3.88 / m2
Packaging Details: One roll in woven bag
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000m2 Per Day
Contact Now
Detailed Product Description
Basic Fabric: 430g Fiberglass Fabric Surface Treatment: Silicone Coating
Total Weight: 590g/m2 Width: 1000mm
Length: 50m Per Roll Thickness: 0.45mm

17oz Double-sided Silicone Coating Fiberglass Fabric Anti Fire Satin Weave

Description:

Silicone coating fiberglass fabric is made of the basic material with high temperature resistant fiberglass fabric and silicone rubber by follow-processing; it is a compound material with high quality of performance.

Unionfull produce silicon rubber coating on one side or both sides of fiberglass fabric, the final area weight is 300-2500g/m2, width is 1-1.54m, supply it in roll or in tape as per client's requirement.



Coating Type:One side coating/tow side coating

Specification Thickness Weight Color Package
UPSE-8628D80 0.2mm 290g/m2 Gray/Red/Black 50m/roll
UPSE-8732D160 0.45mm 590g/m2 Gray/Red/Black 50m/roll
UPSE-8784D200 0.88mm 1050g/m2 Gray/Red/Black 50m/roll



Data Sheet of UPSE-8732D160:

Basic Fabric E-glass fabric
Finish process Silicone rubber coating
Coating Side 2 sides
Weight 590g/m2 17.4oz/yd2
Thickness 0.45mm 0.018inch
Tensile strength 2000/1600 (N/50mm)
Temperature resistant

glass fabric:≤550℃(1000ºF)

Silicone Coating≤260℃(500ºF)



Package 1 roll with 1 polybag
Delivery time 10~15days
Color Gray



Advantage

1.Good chemical resistance
2.Superior Release Non-stick surface

3.Temperature range from -70C to +260ºC

4.Good weather ability

5.Antibacterial, moisture proof

6.Constant size
The material of the fabric itself determines that it is not malleable and maintains a flatness for a long time

7.Anti-ripper
It does not require reinforcement for natural tear resistance, has significant wind resistance and is subject to frequent mechanical properties.



Main Application:

1.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.

2.Anti-corrosion. With excellent anti-corrosive property, silicone coated glass fabric can be used as protection coating on pipe and saving box.
3.Non-metallic compensator. Silicone coated glass fabric can be produced as soft connecting part of pipe to avoid pipe broken caused by thermal expansion and contraction. With properties of thermal insulation, anti-corrosion, anti-aging and soft, silicone coated glass fabric is widely used in fields like oil, chemical industry, cement and energy sources.

4.Other fields. Silicone coated glass fabric can also be used as sealing material, building reinforced material, high temperature corrosion resistant conveyor belt, packing material, etc.

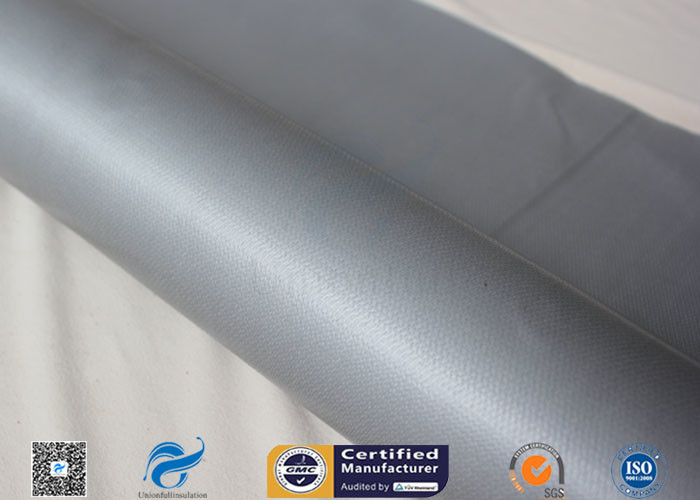

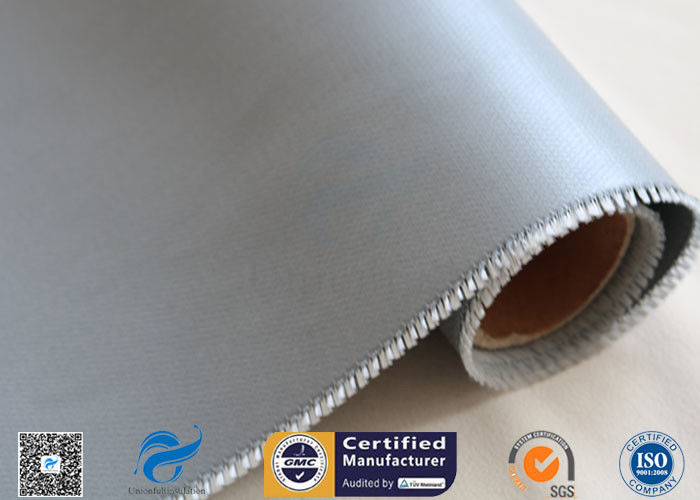

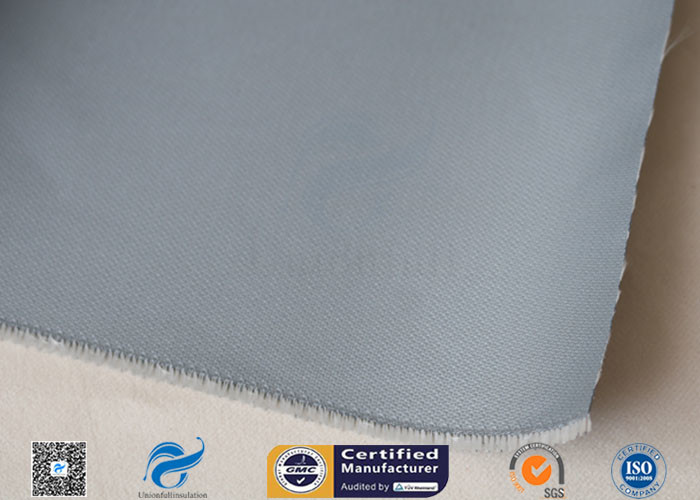

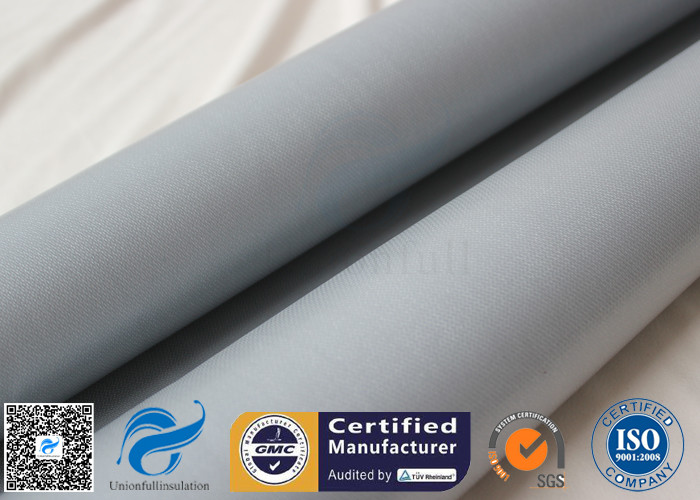

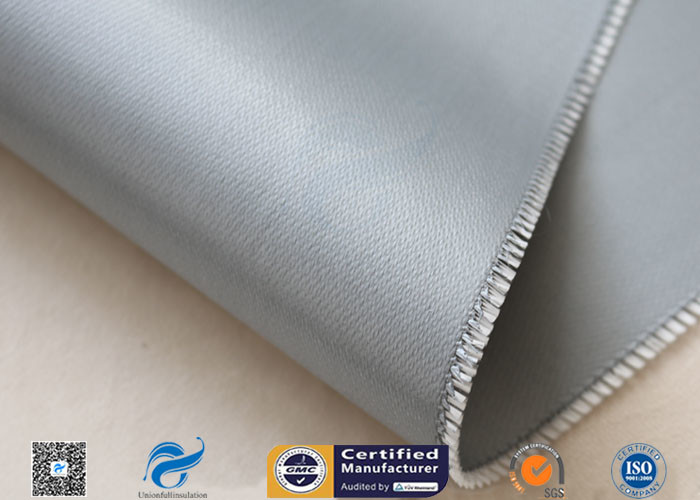

Pictures:

17oz Double Sided Silicone Coating Fiberglass Fabric Anti Fire Satin Weave17oz Double Sided Silicone Coating Fiberglass Fabric Anti Fire Satin Weave



About Unionfull:

Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.

Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
