572℉ Aluminium Foil Fiberglass Fabric For Roof Heat Insulation Non Water Permeability

China 572℉ Aluminium Foil Fiberglass Fabric For Roof Heat Insulation Non Water Permeability supplier
572℉ Aluminium Foil Fiberglass Fabric For Roof Heat Insulation Non Water Permeability supplier 572℉ Aluminium Foil Fiberglass Fabric For Roof Heat Insulation Non Water Permeability supplier 572℉ Aluminium Foil Fiberglass Fabric For Roof Heat Insulation Non Water Permeability supplier 572℉ Aluminium Foil Fiberglass Fabric For Roof Heat Insulation Non Water Permeability supplier 572℉ Aluminium Foil Fiberglass Fabric For Roof Heat Insulation Non Water Permeability supplier

Large Image :  572℉ Aluminium Foil Fiberglass Fabric For Roof Heat Insulation Non Water Permeability

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: UPCAL-8732

Payment & Shipping Terms:

Minimum Order Quantity: 500mters
Price: $2~$3.6 / m2
Packaging Details: One roll in woven bag
Delivery Time: 2 weeks after receiving payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000m2 Per Day
Contact Now
Detailed Product Description
Basic Fabric: 430g Fiberglass Fabric Surface Treatment: Aluminium Foil
Total Weight: 450g/m2 Width: 1/1.2/1.5m
Length: 50m Per Roll Aluminium Thick: 7/14/18 Micron

Non-Water Permeability 572℉ Aluminium Foil Fiberglass Fabric For Roof Heat Insulation

Description:



Basic fiberglass cloth is 0.85mm thick and woven in satin.

Aluminized fiberglass cloth is an ideal heat insulation material, normally it can be seen on the roof heat insulation as it can reflect more than 95% of the radiant heat that contacts its foiled surface.



Heat reflective side of this silver coated fabric is available in aluminum foil or aluminum film. Aluminum foil fabric should be used for static applications. By laminated on 430g basic fiberglass fabric, this Aluminum foil fiberglass cloth could be with stand of high temperature up to 572℉/300℃, the basic fiberglass fabric protect from continuous radiant heat up to 1022°F.



Details of Fiberglass Fabric:



Basic Fabric



UPSE-8732

Yarn Weft



ECG37 1/0

Yarn Warp



ECG37 1/0

Count Thread



19.6/11.5 ends/cm

Breaking strength



2000/1600 N/50mm

Temperature resistant



up to 500℃

Weight



430g/m2 12.6 oz/yd2

Thickness



0.4mm 0.016 in

Roll length



50m 164ft



Data sheet Of UPCAL-8732:

Item



Aluminum Foil Fiberglass Fabric

Aluminium Foil Thickness



7/14/18/25 Micron

Width



1 m, 1.2 m, 1.5 m

Roll Length



50m/100m

Total Weight



450g/m2

Weave



4HS

Breaking strength



2000/1600(N/50mm)

Working Temperature



fiberglass fabric ≤ 500℃

Aluminium foil ≤ 300℃

Adhesive ≤ 300℃

Application



electric appliance, electronic, transportation, chemical engineering, architectural engineering, heat insulation, sound absorption, fire prevention



Advantage



-Low thermal conductivity

-Non-breath ability

-Economic, healthy and environmental

-It will not absort any water ,Be unaffected by the humidity and moister .

-Does not contain hazardous chemicals.

-Fiber glass scrim reinforced for strength and durability

-95% heat reflection

-Good weather resistance



Main Application:



1.Electric insulation: can made into insulated fabric, sleeves, and used in places which need high electric insulation grade.



2.Used as the protective layer of super glass wool with excellent functions of fire-resistance, anti-corrosion, heat isolation and heat protection and sound absorption, sound-proof materials in construction.
3.Used as the thermal insulation material on heat supply pipes after laminate glass wool, rock wool, PU foam and other insulation to protect them against vapor moisture.
4.Heat sealing aluminum foil facing also used as a water vapor barrier in air condition ductworks and Hot & cold room.

5.Others: it can also be used as construction sealing material, high temperature corrosion-proofing belt, packing material, new energy etc.

6.Separation of refrigerator; warm keeping for center air conditioner, refrigerator and other home appliances

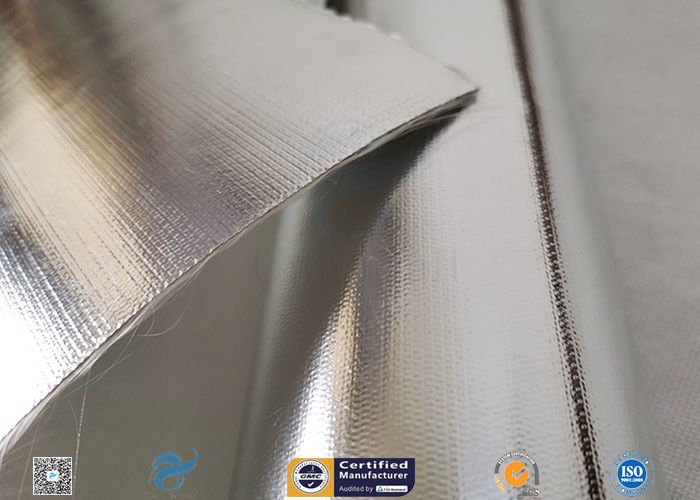

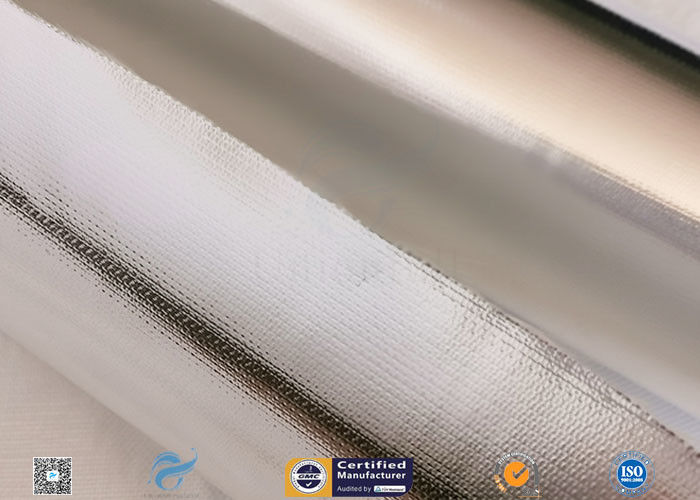

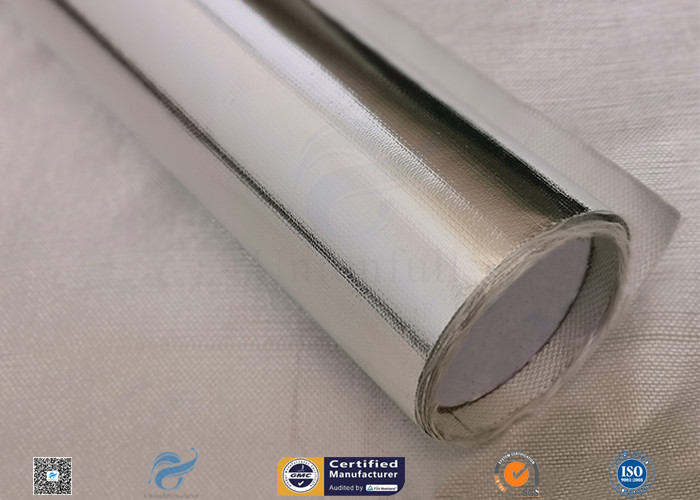

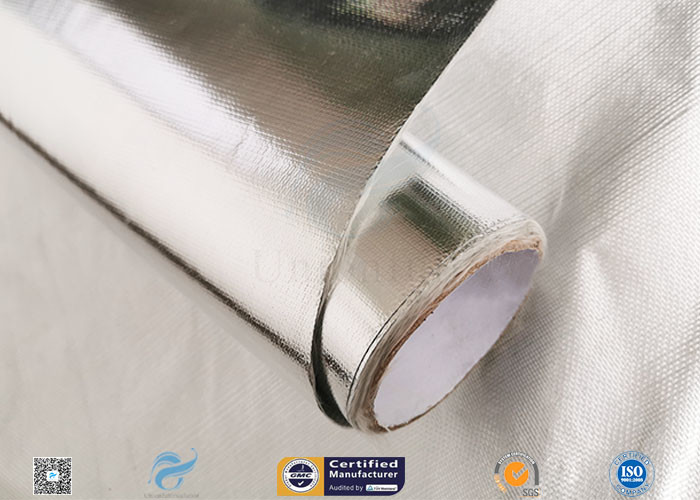

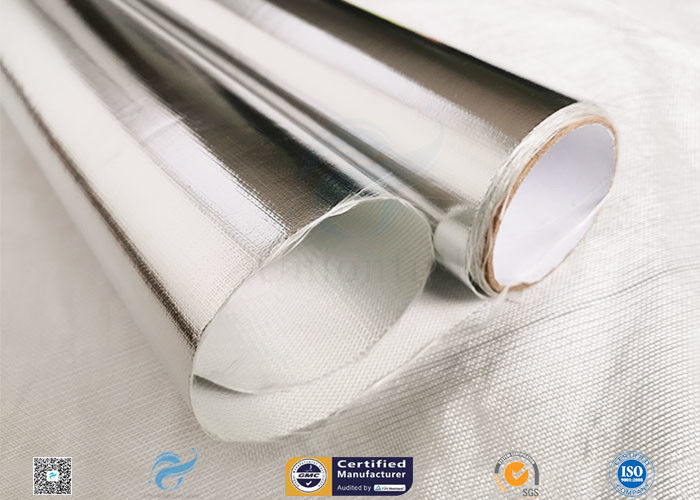

Pictures:



572℉ Aluminium Foil Fiberglass Fabric For Roof Heat Insulation Non Water Permeability572℉ Aluminium Foil Fiberglass Fabric For Roof Heat Insulation Non Water Permeability
