0.45 Mm Aluminum Foil Laminated Fiberglass Fabric For Fireproof

China 0.45 Mm Aluminum Foil Laminated Fiberglass Fabric For Fireproof supplier
0.45 Mm Aluminum Foil Laminated Fiberglass Fabric For Fireproof supplier 0.45 Mm Aluminum Foil Laminated Fiberglass Fabric For Fireproof supplier 0.45 Mm Aluminum Foil Laminated Fiberglass Fabric For Fireproof supplier 0.45 Mm Aluminum Foil Laminated Fiberglass Fabric For Fireproof supplier

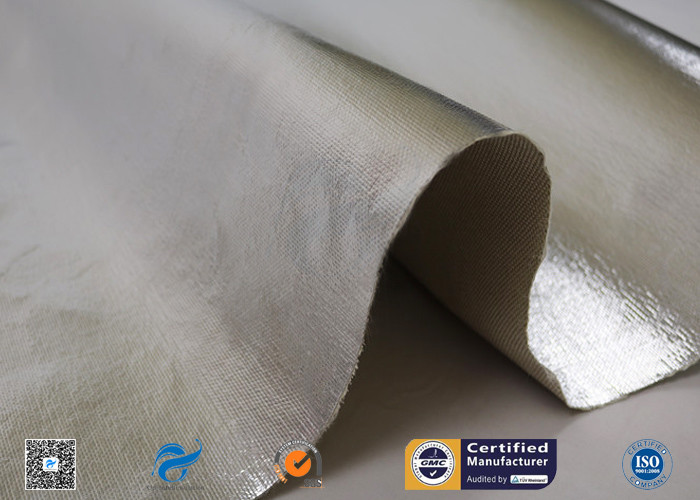

Large Image :  0.45 Mm Aluminum Foil Laminated Fiberglass Fabric For Fireproof

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS,TUV
Model Number: UPFRAF-8732

Payment & Shipping Terms:

Minimum Order Quantity: 500 m
Price: $2~$3.7/m2
Packaging Details: One roll in woven bag
Delivery Time: 2 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 m2 per day
Contact Now
Detailed Product Description
Coating: Aluminum Alkali Content: Free
Weave Type: Satin Width: 1000mm
Keyword: Aluminum Glass Fiber Fabric Material: Aluminum Foil+Fiberglass Fabric
Usage: Building Application Reflective: Insulation Materials

0.45 mm Aluminum Foil Laminated Fiberglass Fabric for Fireproof



Product Introduction



Aluminum foil fiberglass cloth (aluminum foil cloth) is a new type of heat preservation and insulation material which is composed of aluminum foil and glass fiber cloth by special technology. That is, the flat aluminum foil, high reflectivity and glass fiber cloth with strong tensile force, and other characteristics



Specification



Item No. Weave Density per cm Weight Thickness

Aluminum

Coating

Thickness

Tensile Strength
N/5cm
Width

Temperature

Resistance

Warp & Weft Warp & Weft Fabric Gule
UPFRAF-3732 Satin 18*13 430g/m2 0.43mm 18micron 6000*4500 100cm 550℃ 300℃



Product Features



1. It is made of aluminum foil and glass fiber cloth by adhesive; it has excellent water vapor barrier performance, fire retardant, high mechanical strength, and oxidation resistance, strong cohesion, corrosion resistance, weak acid and alkali resistance; It has high flexibility, decoration and protection; it is suitable for splicing of pipeline seals, HVAC ducts, heat insulation and water vapor barrier requirements for cold and warm water pipes, fixed, anti-electronic interference, isolated electromagnetic waves, engineering, electronics The insulation of the industry.

2. This product uses high-quality pressure-sensitive oily glue, good viscosity, strong adhesion, greatly improved thermal insulation performance, with the joint of all aluminum foil composite materials, the sealing of the insulation nail puncture and the repair of the damaged parts. It is the main raw and auxiliary materials for the refrigerator and freezer production plant. It is also the heat insulation and sound insulation material of the high-grade hotel, and the moisture-proof, mildew-proof, fire-proof and anti-corrosion packaging materials for the export equipment.

3. The surface of the composite aluminum foil is smooth and flat, with high reflectivity, large tensile strength in the longitudinal and transverse directions, heat insulation, anti-reflection and anti-radiation heat.



Application



1. The aluminum foil has a reflective heat insulation effect. In the summer, the tape is attached to the glass, the roof and the like, and the winter can be taken down, and the warm sun is brought in again

2. It is suitable for thermal insulation and water vapor barrier of residential buildings, warehouses, cold storages, factories, etc.; it is used for thermal insulation and moisture protection of glass rooms, lighting rooms, glass windows, etc.

3. It can be used in large buckets, pipes, water heater exhaust pipes, insulation cotton insulation cotton materials, and it is resistant to tension, tearing, and tearing.

4. The pipe joint is sealed, the gas hot water gas pipeline, the de-oiler flue, etc. are sealed, the water pipe and the air-conditioning pipe are insulated and beautiful, and can also be used for temporary repair of the rupture of the vessel, and can also be used for computer host radiation protection. Wait.

5. It is used for reflection insulation wrapping of high temperature pipelines, and special cable wrapping is used to prevent the use of thermal industry.

6. This baby is widely used in automobile manufacturing, textile, electronics industry, electromechanical industry, aerospace industry, packaging industry, construction industry, shipbuilding industry, etc. It is an important industrial material.
