Wateproof And Fireproof Aluminum Foil Coated Fiberglass Fabric

China Wateproof And Fireproof Aluminum Foil Coated Fiberglass Fabric supplier
Wateproof And Fireproof Aluminum Foil Coated Fiberglass Fabric supplier Wateproof And Fireproof Aluminum Foil Coated Fiberglass Fabric supplier Wateproof And Fireproof Aluminum Foil Coated Fiberglass Fabric supplier Wateproof And Fireproof Aluminum Foil Coated Fiberglass Fabric supplier

Large Image :  Wateproof And Fireproof Aluminum Foil Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull Group Ltd
Certification: ISO9001:2008, SGS,TUV
Model Number: UPFRAF-8732

Payment & Shipping Terms:

Minimum Order Quantity: 500 meteres
Price: $2~$3.7/m2
Packaging Details: One roll in woven bag
Delivery Time: 15 days after receiving the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 square meter per day
Contact Now
Detailed Product Description
Surface Treatment: Aluminum Foil, Aluminum Foil Yarn Type: E-Glass
Standing Temperate: -70℃ ~ 260℃ Color: Silver
Thickness: 0.45mm Length: 50m
Good Features: Flame Retardant Application: Blind, Construction

Wateproof And Fireproof Aluminum Foil Coated Fiberglass Fabric



Product Introduction



The aluminum foil cloth is composed of an aluminum foil conductive cloth and a hot melt. The special flame-retardant adhesive is used to form a dense film. The composite aluminum foil has smooth and smooth surface, high light reflectivity, large tensile strength in longitudinal and transverse directions, airtight, impervious to water and good sealing performance. It has high shielding rate, strong material toughness and low price. It can effectively shield the electronic interference generated by any electronic equipment, and is also the most suitable material to replace the conductive cloth.



Specification



Item No. AL-3732
Weave Plain
Thread Count Warp 18 per cm 45 per inch
Weft 13 per cm 33 per inch
Weight 450 Gram/SQM 13.2 OZ/YD2
Thickness 0.45mm 0.02 inch
Coating Aluminum foil
Coating Thickness 18micron 0.7mil
Tensile Warp 2250 N/5cm 250 lbs/inch
Strength Weft 1620 N/5cm 180 lbs/inch
Width 100cm 40 inch
120cm 48 inch
150cm 60 inch
Service Temperature fiberglass is 550℃



 Application



The aluminum foil cloth is mainly used for the insulation material of the pipeline of the heating and cooling equipment, the sound-absorbing and sound-insulating material of the building, the rock wool, the outer sheath of the ultra-fine glass wool, and plays the role of flame retardant, anti-corrosion, heat insulation and sound absorption. At the same time, it can be applied to the moisture-proof, anti-fog and anti-corrosion packaging materials of export equipment. It can also be used for protective dressing of chemical pipelines such as petroleum pipelines and steam pipelines, and it can play the role of flame retardant, anti-corrosion and heat insulation; or it can be used as the inner layer of fire shutters to counter-heat radiation.

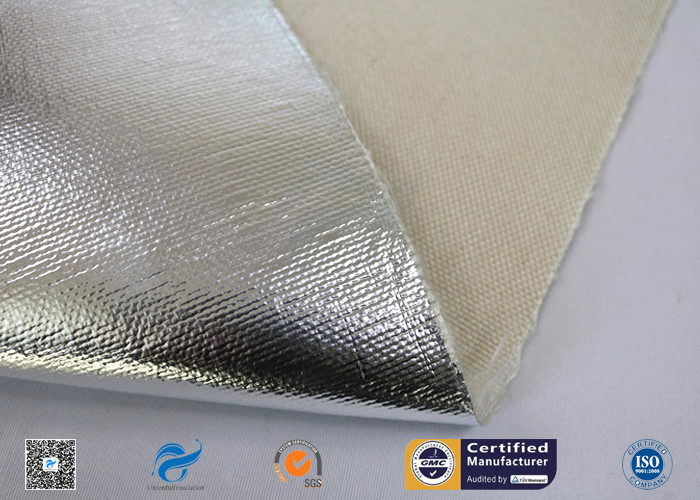

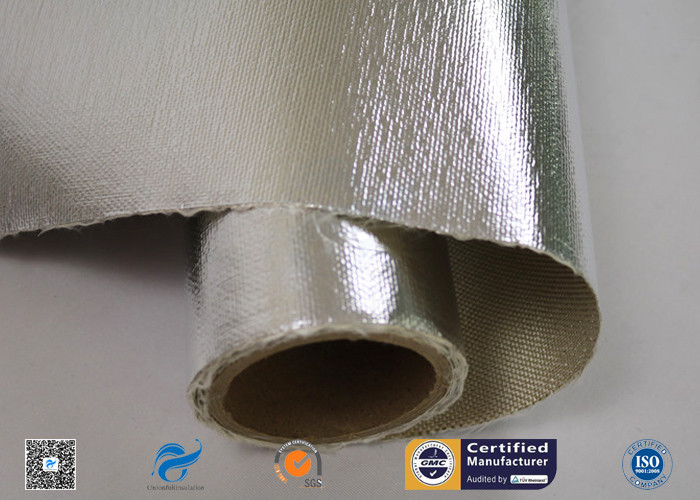

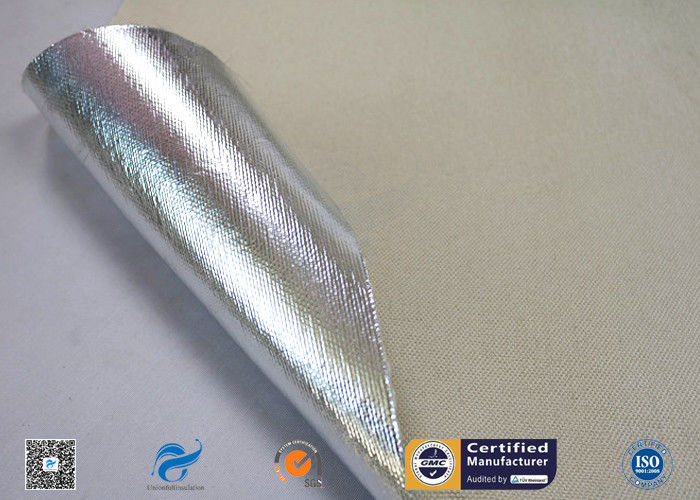

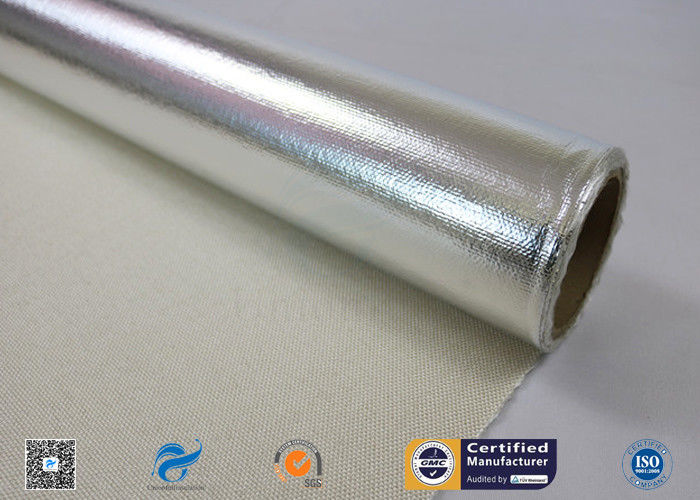

Pictures



Wateproof And Fireproof Aluminum Foil Coated Fiberglass Fabric



Wateproof And Fireproof Aluminum Foil Coated Fiberglass Fabric
